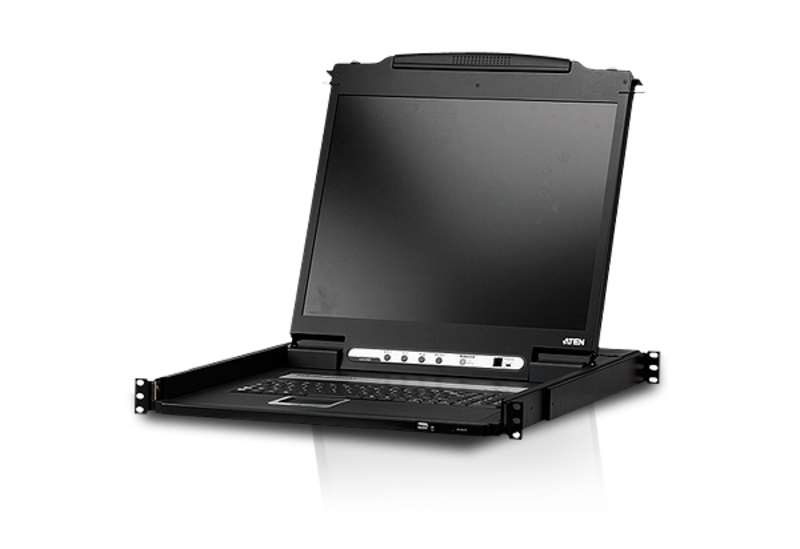

CL6700N Aten 19″ USB and DVI LCD Console

Aten CL6700N 19″ USB & DVI LCD Console featuring a full keyboard, and a touch pad in a 1U rack-mountable sliding housing with audio support. The CL6700 serves as the front end sliding console for compatible DVI KVM switches with superior video quality – up to 1280 x 1024 @75 Hz; DDC, DDC2, DDC2B and speakers support. It features console lock – enables the console drawer to remain securely locked away in position when not in use and DDC emulation -where video settings of each computer are automatically adjusted for optimal output to the monitor. PLEASE CALL FOR PRICE AND AVAILABILITY.

Data Sheet

Manual

Description

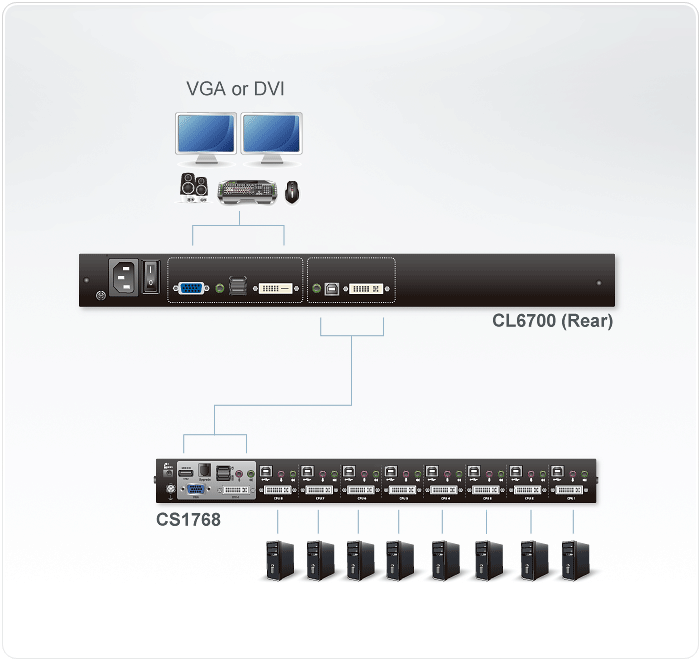

The CL6700N DVI LCD Console is a LCD KVM console featuring an integrated 19″ DVI LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing with audio support. The CL6700N serves as the front end sliding console for compatible DVI KVM switches. This means users who already have a compatible KVM switch can take advantage of the space saving and efficiency benefits of the sliding console module without having to purchase a KVM switch module.

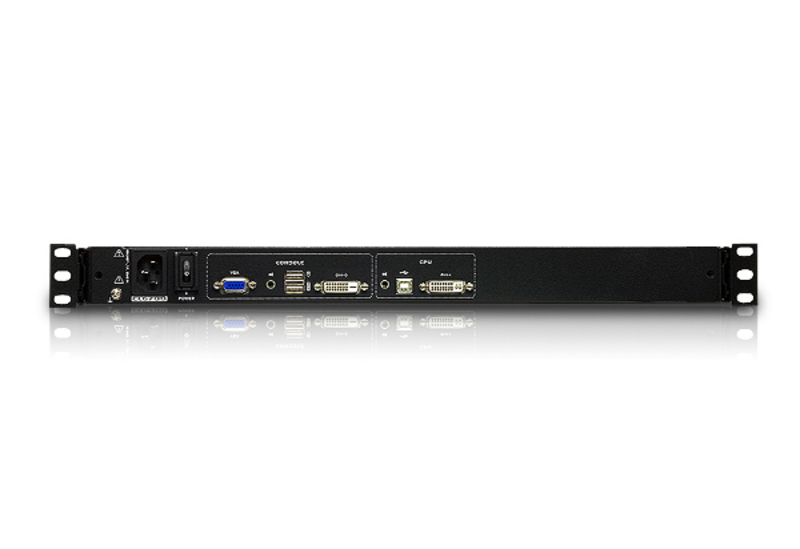

For added convenience, a port for an external USB mouse is provided on the CL6700N front panel, while ports for an extra console (USB mouse, USB keyboard, DVI monitor and VGA monitor) for a second user are provided on the rear panel.

  • Integrated KVM console with a 19″ DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
  • Supports an external console with USB / DVI / VGA connectors
  • Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
  • Audio support (speakers)
  • Superior video quality – up to 1280 x 1024 @75 Hz; DDC, DDC2, DDC2B
  • Standard 105-key keyboard; Sun keyboard emulation
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Compatible with most ATEN DVI KVM Switches
  • Adjustable depth to fit within the rack
  • Firmware upgradeable
  • Console lock – enables the console drawer to remain securely locked away in position when not in use
  • DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor
  • Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek.

More information anout Easy Rack Mount, click here

Computer Connections 1
Console Selection Hotkey
Connectors External
Console
Ports
Keyboard 1 x USB Type A Female (White)
Mouse 1 x USB Type A Female (White)
Monitor 1 1 x DVI-D Female (White)
Monitor 2 1 x HDB-15 Female (Blue)
Speaker 1 x Mini Stereo Jack Female (Green)
KVM
Ports
KB / Mouse 1 x USB Type B Female (White)
Monitor 1 x DVI-I Female (White)
Speaker 1 x Mini Stereo Jack Female (Green)
External Mouse /
Peripheral
1 x USB Type A Female (Black)
Power 1 x 3-prong AC Socket
Switches Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker
F/W Upgrade 1 x Slide
LCD Power 1 x Pushbutton
LCD Adjustment 4 x Pushbutton
LEDs Power 1 (Green)
Lock Num 1 (Green)
Caps 1 (Green)
Scroll 1 (Green)
Emulation Keyboard / Mouse USB
Video 1280 x 1024@75Hz, DDC2B
I/P Rating 100 – 240VAC; 50-60Hz; 1A
Power Consumption 120V, 24.6W / 230V, 25.4W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 13.09 kg
Dimensions
( D x W x H )
58.92×48.50×4.40cm
  • 1x CL6700 DVI LCD Console with Standard Rack Mount Kit
  • 1x Custom USB DVI KVM Cable Set
  • 1x Power Cord
  • 1x Firmware Upgrade Cable
  • 1x User Instructions
