4K-900 Smart-e 100m 4K HDMI HDBaseT 3D Fully HDCP Extender Pair with IR RS232 & Inline Power

Out of stock

Smart-e 4K-900 100m HDBaseT extender pair for HDMI, Infrared and RS232 providing inline power to 100m. Resolutions 4k,2k, 1080p@60Hz, 3D fully HDCP compliant. The extender uses a single CAt5-8 cable, offers wide badwidth IR transmission, in-line powered receiver and transparent RS232 passthrough.

Data Sheet

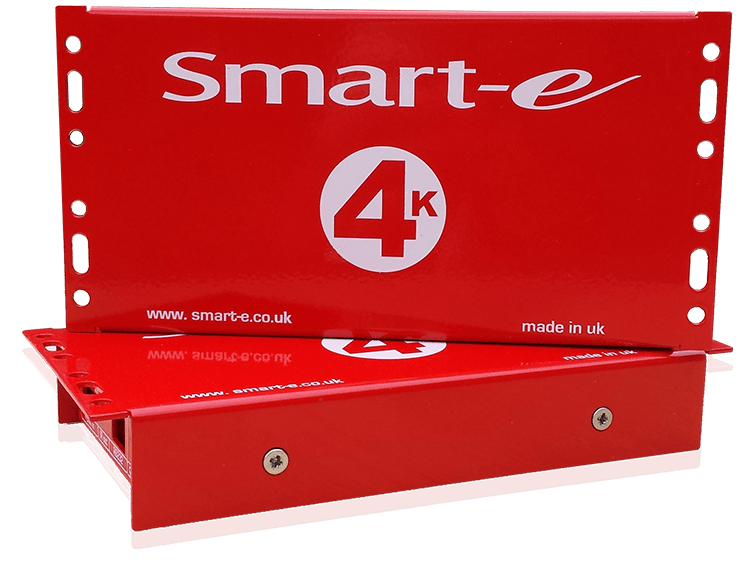

The 4K-900 is a transmitter and receiver pair designed to extend HDMI, DVI or Display Port, together with reverse IR and bidirectional RS232 signals over a single 100m CAT 5-8 cable. Transparent DDC connectivity provides HDCP compliance. In-line power is standard allowing the receiver unit to be powered through the CAT 5-8 cable. Control through the same cable can be used for IR and RS232 passthrough.

4K-900 Features:

  • HDMI, DVI & Display Port
  • HDMI, Deep Colour, 3D, 4K & 2K resolutions
  • 3D compatible
  • Distributes signals over a single 100m CAT 5-8 cable
  • HDCP compliant
  • Infra-red & RS232 signal passthrough
  • Wide bandwidth IR transmission
  • Transparent RS232 passthrough
  • In-line powered receiver
  • Locking DC connector
  • Supports 1920×1200 @ 60 Hz
