X100AS/R AdderLink PS2 & VGA Remote User Station with Audio & Video Compensation

£330.00 inc VAT

Adder X100AS/R PS2, VGA & Audio and Video Compensation CATx Remote user station up to 100m/330ft using CATx cable (x=5,5e,6,7) supports any computer with PS/2 or USB style keyboard and mice, flat-screen and CRT style monitors with standard HD-15 video connectors and optional audio through 3.5mm audio jack.

Data Sheet

Manual

Description

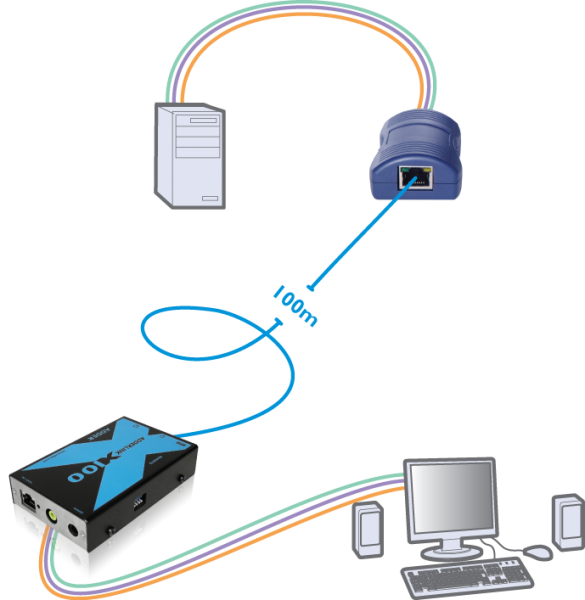

AdderLink X100AS/R CATx Receiver /Remote User Station with Audio and Video Compensation has been designed for use in applications where keyboard, mouse, high quality video and audio needs to be extended no more than 100m (330ft) over category 5 or higher UTP cable.

The ADDERLink X100AS/R provide industry-leading video clarity, audio quality and compatibility with a resolutions of 1600 x 1200 are achievable up to 100m (330ft), 1900 x 1440 up to 50m (165ft).

  • Video performance 1600 x 1200 are achievable up to 100m (330ft), 1900 x 1440 up to 50m (165ft).
  • Video Compenation
  • Emulated DDC
  • Audio Support
  • USB Emulation
  • Brightness Control
  • Variety of models available
  • To suit the maximum possible number of applications the X-100 is available in a number of models, PS/2 and video (X-100-PS2/P) PS/2, video and audio (X-100A-PS2/P), USB and video (X-100-USB/P) and USB, video and audio (X-100A-USB/P).

Video resolutions

1600 x 1200 at distances up to 100m/330ft,1900 x 1440 at distances up to 50m/165ft

Extension distance

Up to 100m/330ft using CATx cable (x=5,5e,6,7)

Devices supported

Supports any computer with PS/2 or USB style keyboard and mice, flat-screen and CRT style monitors with standard HD-15 video connectors and optional audio through 3.5mm audio jack

O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (local)

Video: HDD15
Keyboard Mouse: MiniDin6.
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector
Or
Video: HDD15
Keyboard Mouse: USB type A.
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector

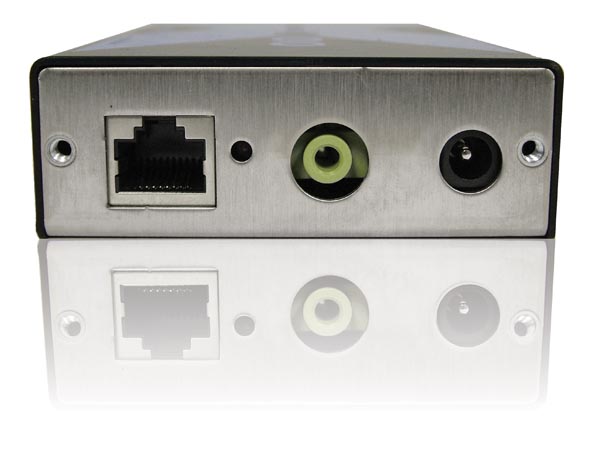

Connectors (remote)

Video: HDD15
Keyboard Mouse: MiniDin6.
Optional audio: 3.5mm jack
CATx: 1 x RJ45 connector.
Power: 2.5mm DC jack

Physical (local)

Combination of plastic enclosure and cables.
Enclosure: 64mm x 45mm x 25mm
Cables: 340mm long

Physical (remote)

All metal case, 123mm x 74mm x 26 mm

Power supply

100 – 240VAC 50/60Hz

Operating temperature

0 – 40 deg C (32 to 104 deg F)

Approvals

CE, FCC
