CE370 Aten PS/2 & VGA CAT5 300m KVM Extender

£595.00 inc VAT

Aten CE370 PS2, VGA, RS232 CAT5 KVM extender with Manual and Automatic Signal Compensation. It features an On Screen Display to conveniently adjust video quality with the intuitive OSD menu system. The CE370 offers dual console operation locally and remotely with push button operating mode selection (Local Unit only) to select between Local and Auto operating modes, with the press of a single button and supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B.

Data Sheet

Manual

Description

The CE370 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE370 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.

The CE370 supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The CE370’s line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

  • Local and Remote Units connect at distances up to 300 m using Cat 5e cable
  • Deskew Function – automatically synchronizes the time delay of RGB signals to compensate for distance
  • On Screen Display – conveniently adjust video quality with the intuitive OSD menu system
  • Manually tune the R/G/B settings, store and retrieve
  • Adjustable gain control – automatically and manually adjust signal strength to compensate for distance
  • Dual console operation – control your system from both the local and remote keyboard, monitor, and mouse consoles
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC) and storage of settings
  • RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
  • Audio Enabled – supports stereo speakers and microphone
  • Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes, with the press of a single button
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
  • Superior video quality – 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m)
  • Superior Audio – no loss in audio quality at 300 m
  • Supports Wide Screen formats *
  • Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
  • Hot pluggable
  • Rack mountable
  • Easy to install – no software required – connecting cables to the devices is all it takes* The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

CE370 PS/2 KVM Extender

Function CE370L CE370RQ
Connectors
Console Ports 1 x 6-pin Mini-DIN Female (Purple)
1 x HDB-15 Female (Blue)
1 x 6-pin Mini-DIN Female (Green)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
1 x 6-pin Mini-DIN Female (Purple)
1 x HDB-15 Female (Blue)
1 x 6-pin Mini-DIN Female (Green)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x SPHD-17 Female (Yellow)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black)
Power 1 x DC Jack 1 x DC Jack
LEDs
Local 1 (Green) N/A
Remote 1 (Green) N/A
B N/A 1 (Blue)
G N/A 1 (Orange/Green)
R N/A 1 (Red)
Pushbuttons
Operating Mode Selection 1 x Pushbutton N/A
Color N/A 1 x Pushbutton
Select N/A 1 x Pushbutton
Emulation
Keyboard / Mouse PS/2 PS/2
Video 1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz
(300 m); DDC, DDC2, DDC2B
1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz
(300 m); DDC, DDC2, DDC2B
Power Consumption DC5.3V/3.38W DC5.3V/6.43W
Environmental
Operating Temperature 0 – 50°C 0 – 50°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.50 kg ( 1.1 lb ) 0.50 kg ( 1.1 lb )
Dimensions (L x W x H) 20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.)
20.20 x 8.64 x 2.50 cm
(7.95 x 3.4 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

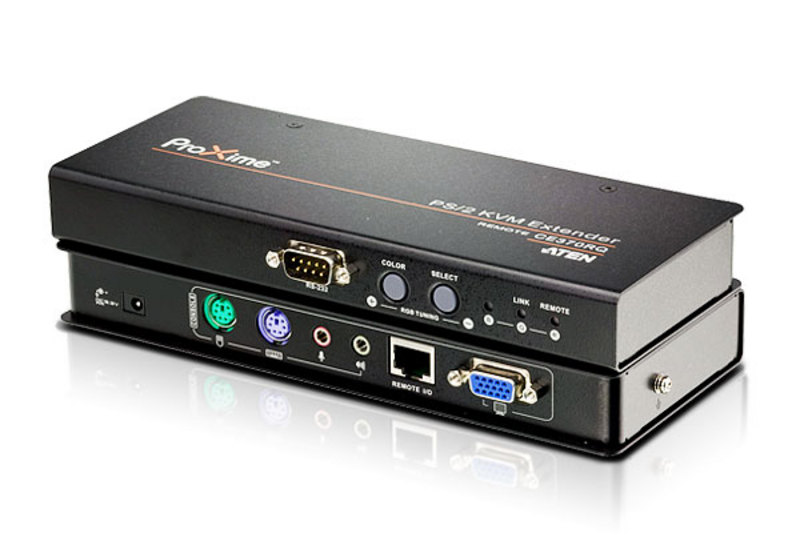

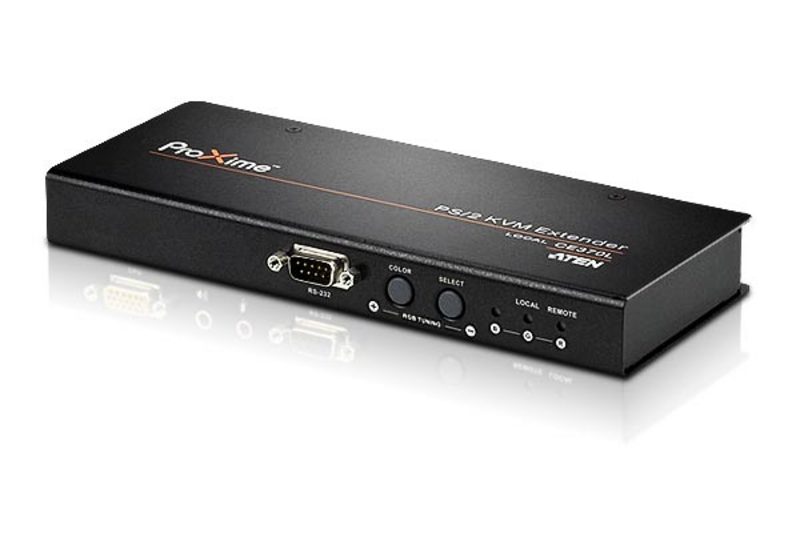

  • 1x CE370L PS/2 KVM Extender (Local Unit)
  • 1x CE370RQ PS/2 KVM Extender (Remote Unit)
  • 1x Custom PS/2 KVM Cable Set (1.8 m)
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions
