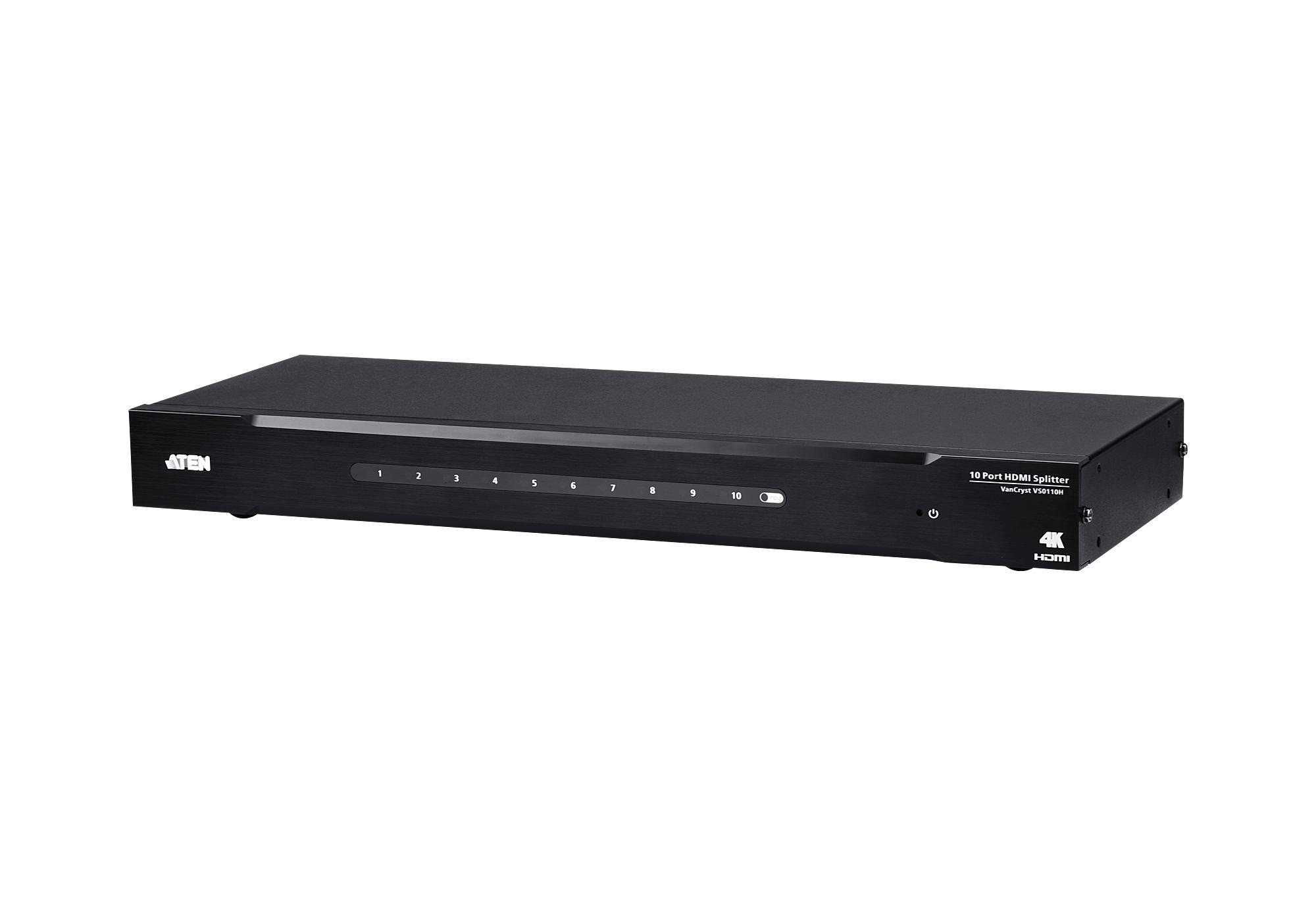

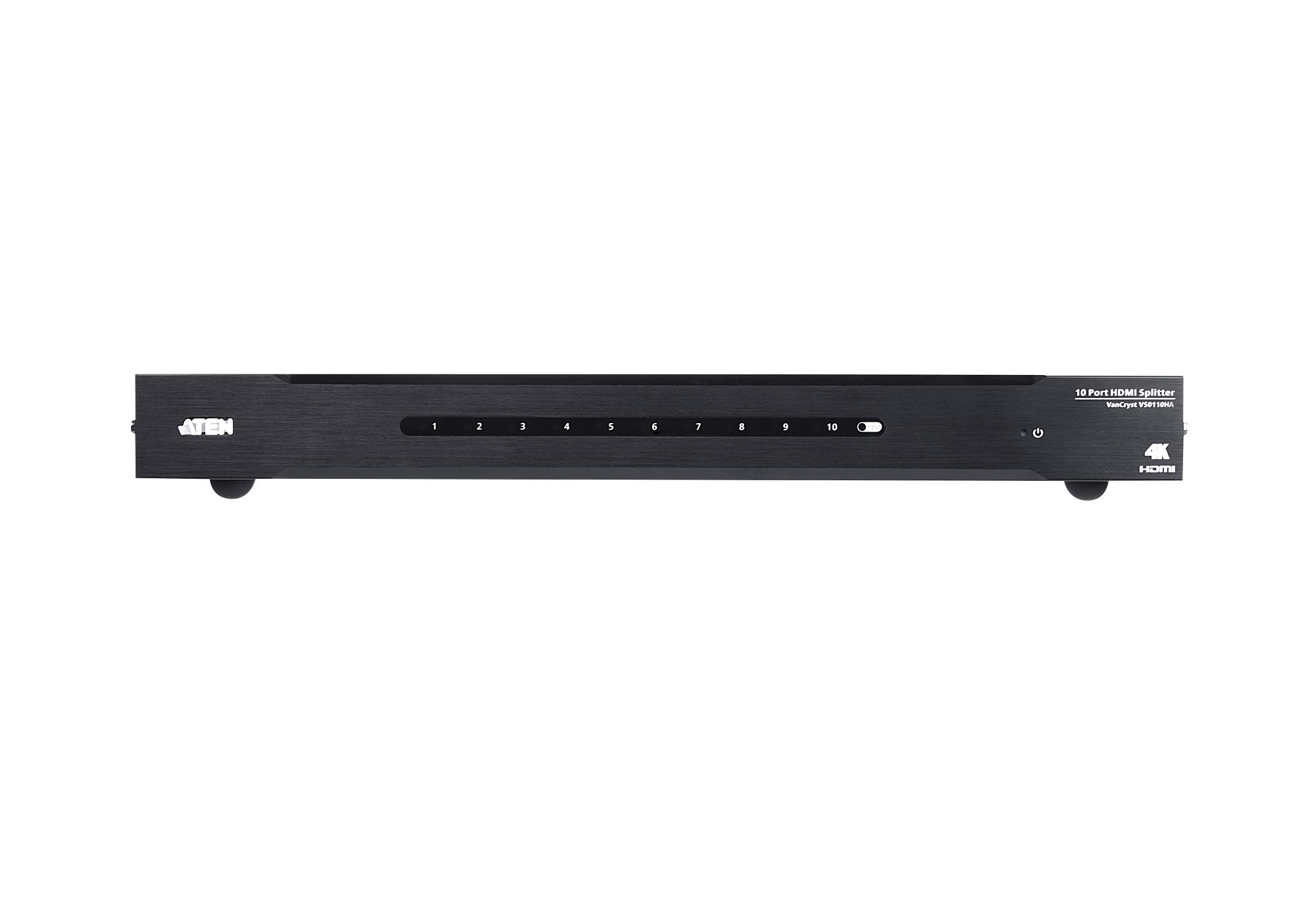

VS0110HA Aten 10-Port 4K HDMI Splitter

£298.00 inc VAT

Aten VS0110HA 10-port HDMI splitter takes one HDMI source of high definition 4K and displays it on 10 displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays. It supports resolutions of up to 4K (4096 x 2160 @60Hz, 4:2:0). The splitter has a built-in bi-directional RS-232 serial control port for high-end system control and supports Dolby True HD and DTS HD Master Audio.

Data Sheet

Manual

Description

The VS0110HA 4K HDMI Splitter is a perfect solution for applications that require sending one source of high-definition 4K video to ten displays at the same time. The HDMI interface caters to most mainstream sources and sinks, such as DVD players, satellite set-top boxes, and any HDMI displays. Featuring ATEN EDID technology, the VS0110HA guarantees continuous EDID communication with connected devices and maintains optimum video outputs.

The VS0110HA 4K HDMI Splitter is HDCP (High-bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

  • Connects one HDMI source to up to ten HDMI displays at the same time
  • HDMI (3D, Deep color, 4K); HDCP 1.4 compliant
  • Superior video quality – up to 4K resolutions (4096 x 2160 @ 60Hz; 4:2:0)
  • Long distance transmission from source to output – up to 15 m
  • Built-in bi-directional RS-232 serial control port for high-end system control
  • Clear LED indication of device status
  • EDID Expert™ – Selects optimum EDID settings for smooth power-up, high quality display and use of the best resolution across different screens
  • Plug-and-play
  • Rack-mountable (1U design)
LEDs
Power 1 x LED (Green)
Input 1 x LED (Green)
Video Output 10 x LED (Green)
Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 5m (at 4K resolution)
Video Output
Interfaces 10 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 10m (at 4K resolution)
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI 1.4 (3D, Deep Color, 4K);
HDCP 1.4 Compatible
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200 / Data Bits: 8 / Stop Bits:1 / Parity: No / Flow Control: No
EDID Settings EDID Switch x1
EDID Mode: Default (1080p) / Port 1 / Auto
Connectors
Power 1 x DC Jack
USB Port 1 x Micro USB (FW upgrade)
Power Consumption DC5V:4.34W:20BTU
Environmental
Operating Temperature 0 – 40 °C
Storage Temperature -20 – 60 °C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 2.10 kg ( 4.63 lb )
Dimensions (L x W x H) 43.72 x 15.78 x 4.40 cm
(17.21 x 6.21 x 1.73 in.)
Carton Lot 3 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x VS0110HA 10-Port 4K HDMI Splitter
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions
