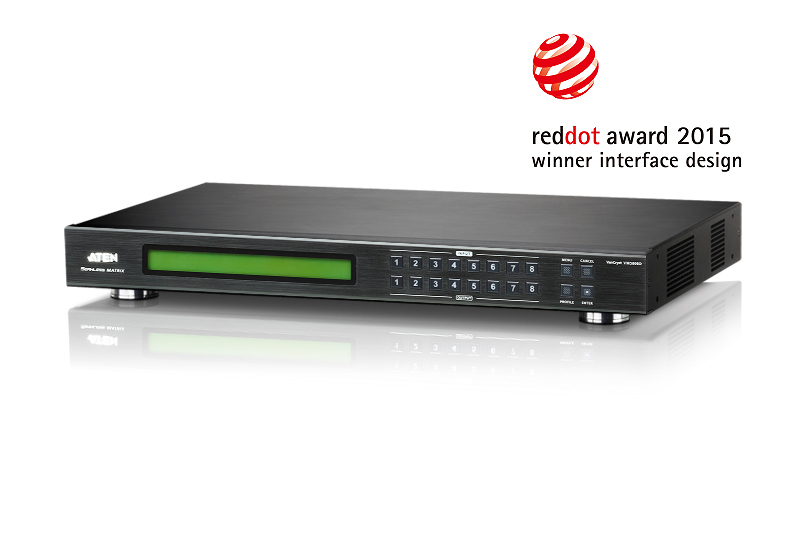

VM5808D Aten 8 x 8 DVI Matrix Switch with Scaler

The Aten VM5808D 8×8 DVI Matrix switch has a built-in Scaler on each output port converts input resolutions into the display’s native resolution, supports scaling 1920 x 1200 resolutions up or down. It extends IR transmission via IR extension cable and supports Seamless Switching and Video Wall technology.

Manual

Description

While HDMI-compliant devices are becoming more popular, the majority of traffic control centers and other large-scale, centralized control rooms still rely on DVI display devices.

In order to avoid signal instability, quality deterioration and other factors associated with interface converters, ATEN created the VM5808D: A seamless matrix switch for DVI signals that offers an easy and affordable way to route any of 8 DVI video sources to any of 8 DVI displays.

The Aten VM5808D is the ideal solution for any control center streaming multiple sources to multiple displays.

While HDMI-compliant devices are becoming more popular, the majority of traffic control centers and other large-scale, centralized control rooms still rely on DVI display devices.

In order to avoid signal instability, quality deterioration and other factors associated with interface converters, ATEN created the VM5808D: A seamless matrix switch for DVI signals that offers an easy and affordable way to route any of 8 DVI video sources to any of 8 DVI displays.
The VM5808D includes seamless switching that employs an FPGA matrix architecture to ensure continuous video streaming, real-time control and stable signal transmission. With a built-in high-performance scaler, the VM5808D easily converts various input resolutions into a array of output resolutions, giving viewers the best image quality across all displays. The switch also integrates video wall functionality with an easy-to-use web GUI that lets you create 16 connection profiles for convenient layout customization.

  • 8×8 DVI I/O connections
  • Configuration and Control via pushbuttons / IR Remote Control
  • System Operation via bi-directional RS-232 serial controller / Browser Graphical User Interface (GUI) / Telnet
  • Extends IR transmission via IR extension cable
  • Built-in Scaler on each output port converts input resolutions into the display’s native resolution, supports scaling 1920 x 1200 resolutions up or down
  • Seamless Switch™ – ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions
  • Video Wall – features up to 16 video wall profiles for custom screen layouts via point-n-click web GUI
  • EDID Expert – configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screen
  • Firmware Upgradeable
  • Rack Mountable (1U Design)

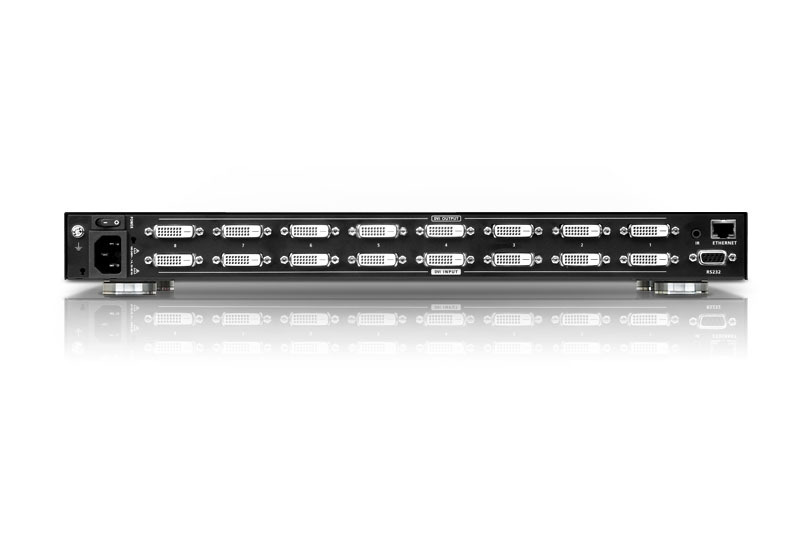

Video Input Interface 8 x DVI-D Female (White)
Impedance 100Ώ
Max Distance 1.8 m
Video Output Interface 8 x DVI-D Female (White)
Impedance 100Ώ
Video Max Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max Pixel Clock 225 MHz
Compliance HDCP 1.4 Compatible
Max. Resolutions Up to 1920 x 1200
Max. Distance Up to 5m
Control RS-232 Connector: 1 x DB-9 Female (Black)
Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bit: 1,
Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female (Black)
EDID Settings EDID Mode: Default / Port 1/ Remix / Customized
Power Connector: 1 x 3-Prong AC Socket
I/P Rating: 100-240VAC; 50-60Hz; 1.0A
Consumption: 120VAC, 56.4W; 230VAC, 55.9W
Environment Operating Temp. 0-50°C
Storage Temp. -20°C – 60°C
Humidity 0% – 80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 4.25 kg
Dimensions
(L x W x H)
43.24 x 25.98 x 4.40 cm

  • 1x VM5808D 8 x 8 DVI Matrix Switch with Scaler
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x IR Receiver
  • 1x Mounting Kit
  • 1x User Instructions
