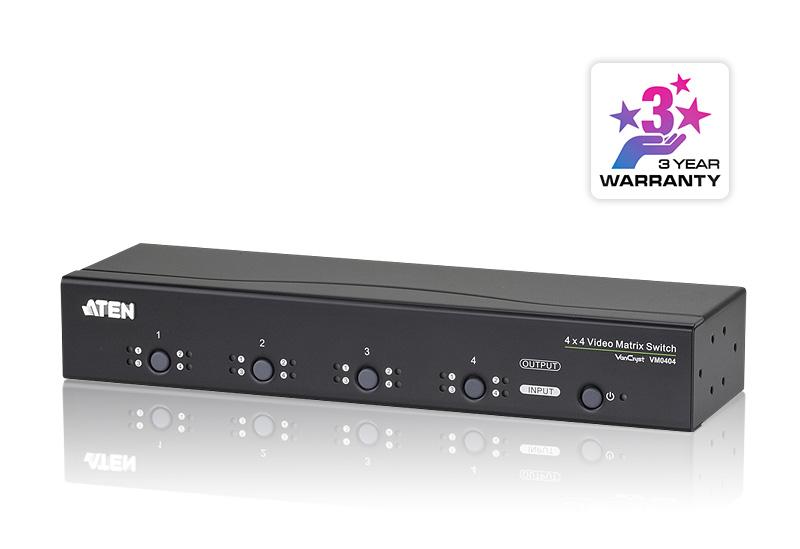

VM0404 Aten 4×4 VGA & Audio Matrix Switch

The Aten VM0404 4×4 VGA & Audio Matrix switch connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs with long distance transmission up to 30m. It allows a user to easily switch between multiple sources and multiple displays with easy Operation via front panel pushbuttons or RS-232 serial controller and offers superior video quality – up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200). The VM0404 supports up to 300 MHz bandwidth for high performance video, features EDID Expert that selects the optimum EDID settings for smooth power-up and highest quality display with built-in bi-directional RS-232 serial port for high-end system control and Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility.

Data Sheet

Manual

£249.00 £179.00 inc VAT

Compare
VM0404 4×4 Video Matrix Switch connecting four VGA source devices to four VGA monitors, displays, or projectors at the same time. It’s steadfast unique features include: EDID mode selection for high compatibility, long signal range, easy source/display switching, matrix connections.
As a Matrix Switch, each input on the VM0404 can be independently connected to any or all outputs, and the audio and video inputs from each source device can also be switched independently, giving you the ultimate in flexibility and control in any multi-display audio/video installation.
  • Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
  • Long distance transmission – up to 30m
  • Easily switch between multiple sources and multiple displays
  • Easy Operation:
    • Front panel pushbuttons
    • RS-232 serial controller
  • Superior video quality – up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200)
  • Supports up to 300 MHz bandwidth for high performance video
  • EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
  • Built-in bi-directional RS-232 serial port for high-end system control*
  • Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility
  • Rack Mountable
  • All-metal casing
    * Note: The VM0404 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

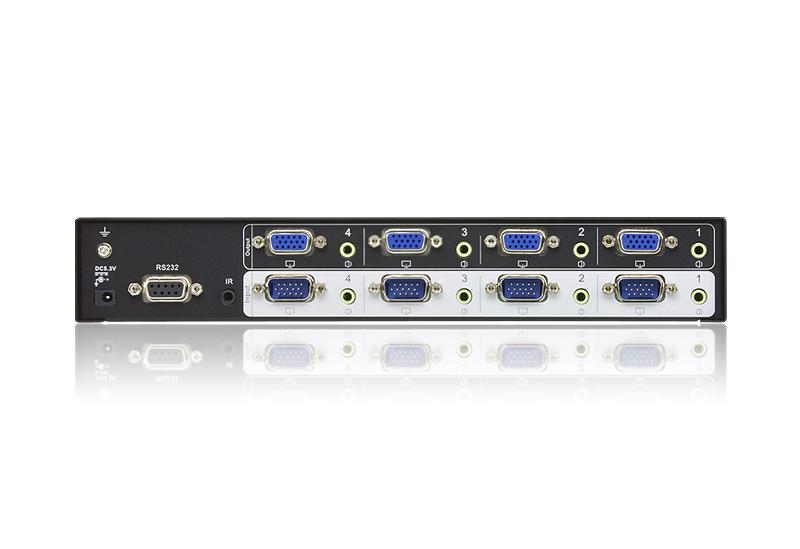

4 x 4 Video Matrix Switch with Audio



Video Input
Interfaces 4 x HDB-15 Male (Blue)
Impedance 75 Ώ
Max. Distance 1.8 m
Video Output
Interfaces 4 x HDB-15 Female (Blue)
Impedance 75 Ώ
Max. Distance 30 m
Video
Max. Bandwidth 300 MHz
Max. Resolution Up to 1920 x 1200
Max. Distance Up to 30 m
Audio
Input 4 x Mini Stereo Jack Female (Green)
Output 4 x Mini Stereo Jack Female (Green)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
EDID Settings EDID Mode: Default / Port1 / Remix / Auto
Power
Connectors 1 x DC Jack (Black)
Consumption 5.3 VDC, 2.7W
Environmental
Operating Temperature 0-50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.87 kg ( 1.92 lb )
Dimensions (L x W x H) 26.00 x 7.61 x 4.40 cm
(10.24 x 3 x 1.73 in.)
  • 1x VM0404 4×4 Video Matrix Switch with Audio
  • 1x Power Adapter
  • 1x User Instructions
