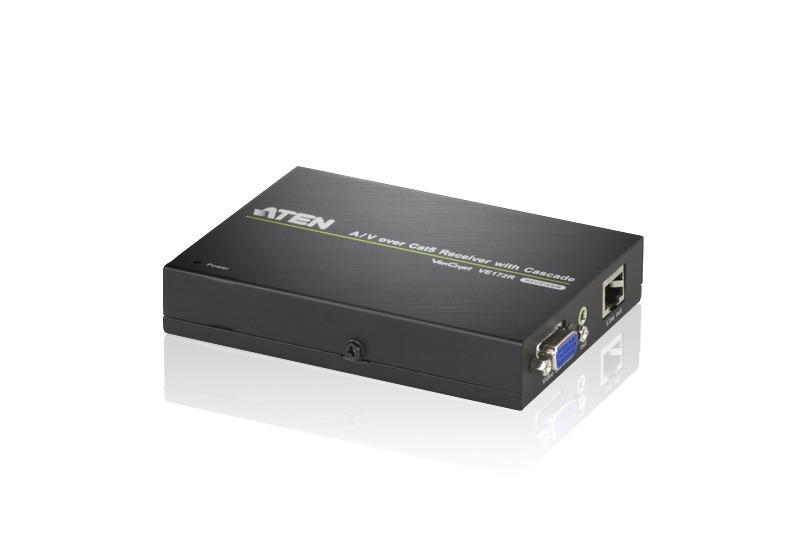

VE172R Aten A/V Over Cat 5 Receiver with Cascade

£239.00 inc VAT

Aten VE172R VGA receiver uses Cat 5e cable to connect the transmitter and receiver uints and is cascadable up to 10 levels. It supports long distance transmission up to 150m and superior video quality – 1920×1200 @ 60Hz (30m);1600×1200 @ 60Hz (100m); 1280×1024@ 60Hz (150m). It Audio enabled (mono) with adjustable gain/compensation control – manually adjusts signal strength to compensate for distance.

Data Sheet

Description

VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m.

Compatible Transmitter Units:
VE170T A/V Over Cat 5 Transmitter
VS1204T A/V Over Cat 5 Transmitter
VS1208T A/V Over Cat 5 Transmitter

  • Uses Cat 5e cable to connect the transmitter and receiver uints
  • Cascadable up to 10 levels
  • Long distance transmission up to 150m
  • Superior video quality – 1920×1200 @ 60Hz (30 m);1600×1200 @ 60Hz (100 m); 1280×1024@ 60Hz (150 m)
  • Audio enabled (mono)

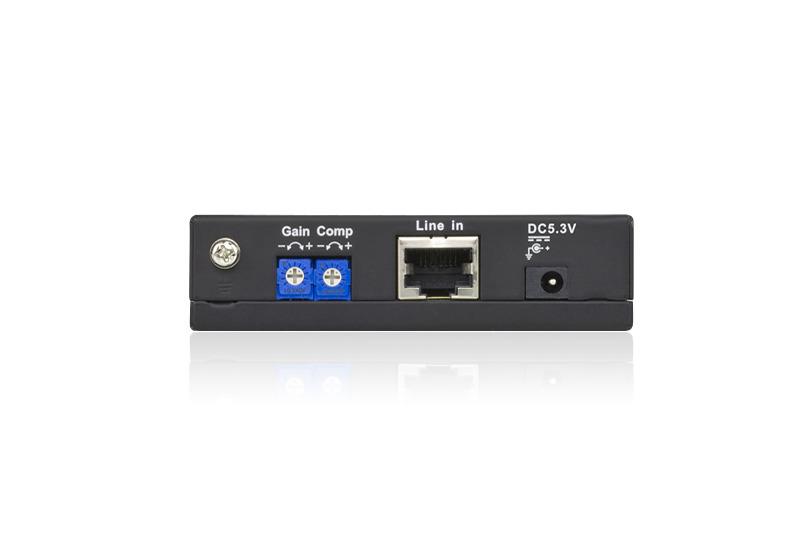

  • Adjustable gain/compensation control – manually adjusts signal strength to compensate for distance
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable
  • Complies with VESA FDMI mount standard

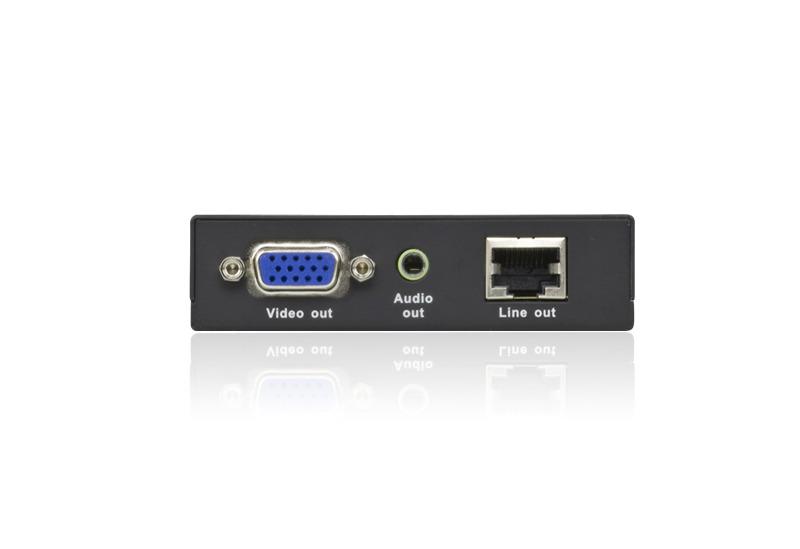

Video Output
Interface 1 x HDB-15 Female (Blue)
Impedance 75 Ώ
Video
Max. Bandwidth 300 MHz
Max. Resolutions / Distance Up to 1920 x 1200@30m; 1280 x 1024@150m
Audio Outputs 1 x Mini Stereo Jack Female (Green)
Power
Connectors 1 x DC Jack (Black)
Consumption 5.3 VDC, 2.3W
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.24 kg
Dimensions (L x W x H) 12.77 x 9.04 x 2.26 cm
  • 1x VE172R A/V Over Cat 5 Receiver with Cascade
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions
