UCE32100 Aten CAT 5 100m USB 2.0 4-port Extender

£439.00 inc VAT

Aten UCE32100 USB 2.0 with 4-port USB Hub over CATx extender can easily send the USB signals via Cat.5/5e/6 cable up to 100m. It is is a true USB 2.0 transparent extension over CAT 5 cabling up to 100 meters, USB Lossless  with higher compatibility of remote USB devices. The integrated four port hub on the UCE32100 allows for extension of up to four USB devices without the need for an additional hub. Powerer supply is on the remote unit to ensure power delivery to multiple devices at once.

Data Sheet

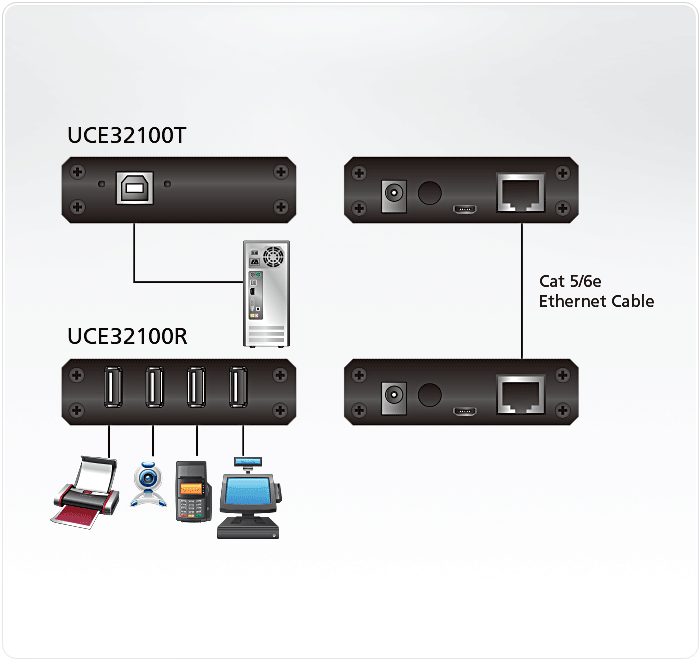

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.

A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.

UCE3250 Features:

  • High-Speed USB 2.0 compliant with a data transfer rate of up to 480 Mbps
  • Extension distance of up to 50m over a Cat 5/5e/6 cable
  • Receives up to 4 USB peripherals of all types – flash drives, keyboards, mice, webcams, scanners, printers and more
  • Metal mechanical with wall mount design supports industrial deployment
  • Supports Windows®, OS X®, and Linux®
  • Plug- and- play

UCE32100 Specifications:

Local Unit

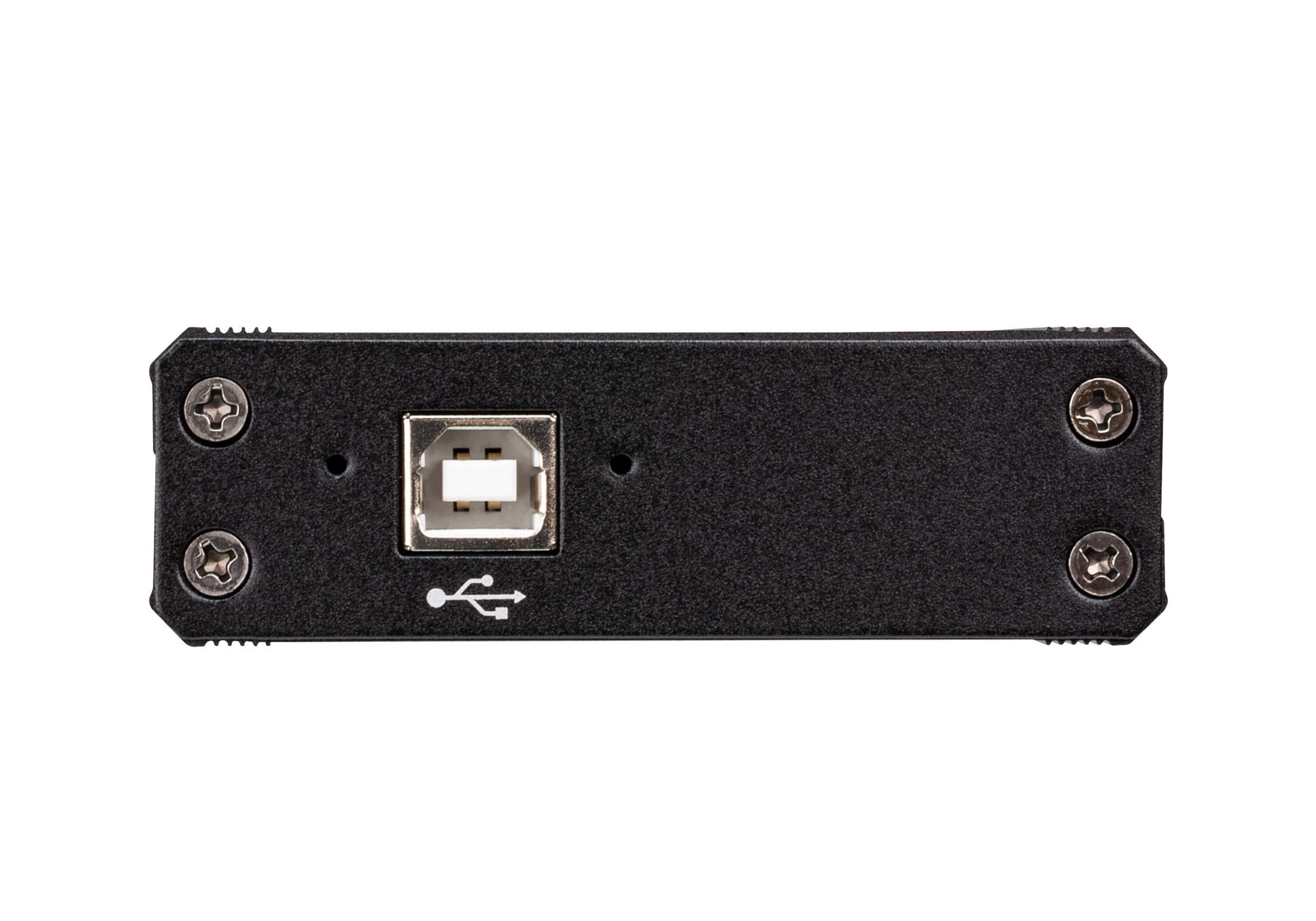

Upstream Port 1 x USB Type B Female

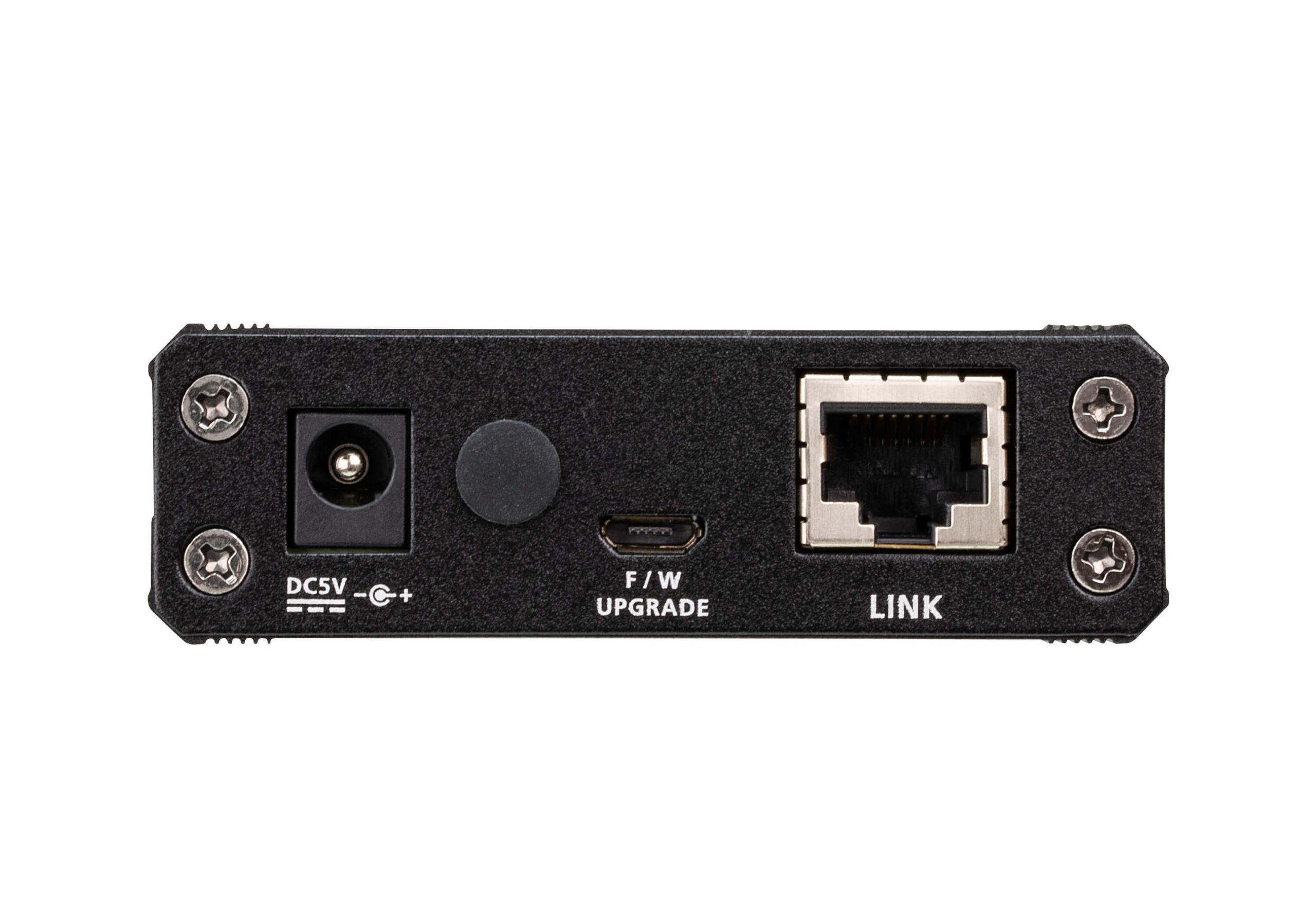

Downstream Port 1 x RJ45 Female
1 x Micro USB Female (Firmware Upgrade)
Power 1 x DC Jack
Remote Unit
Upstream Port 1 x RJ45 Female

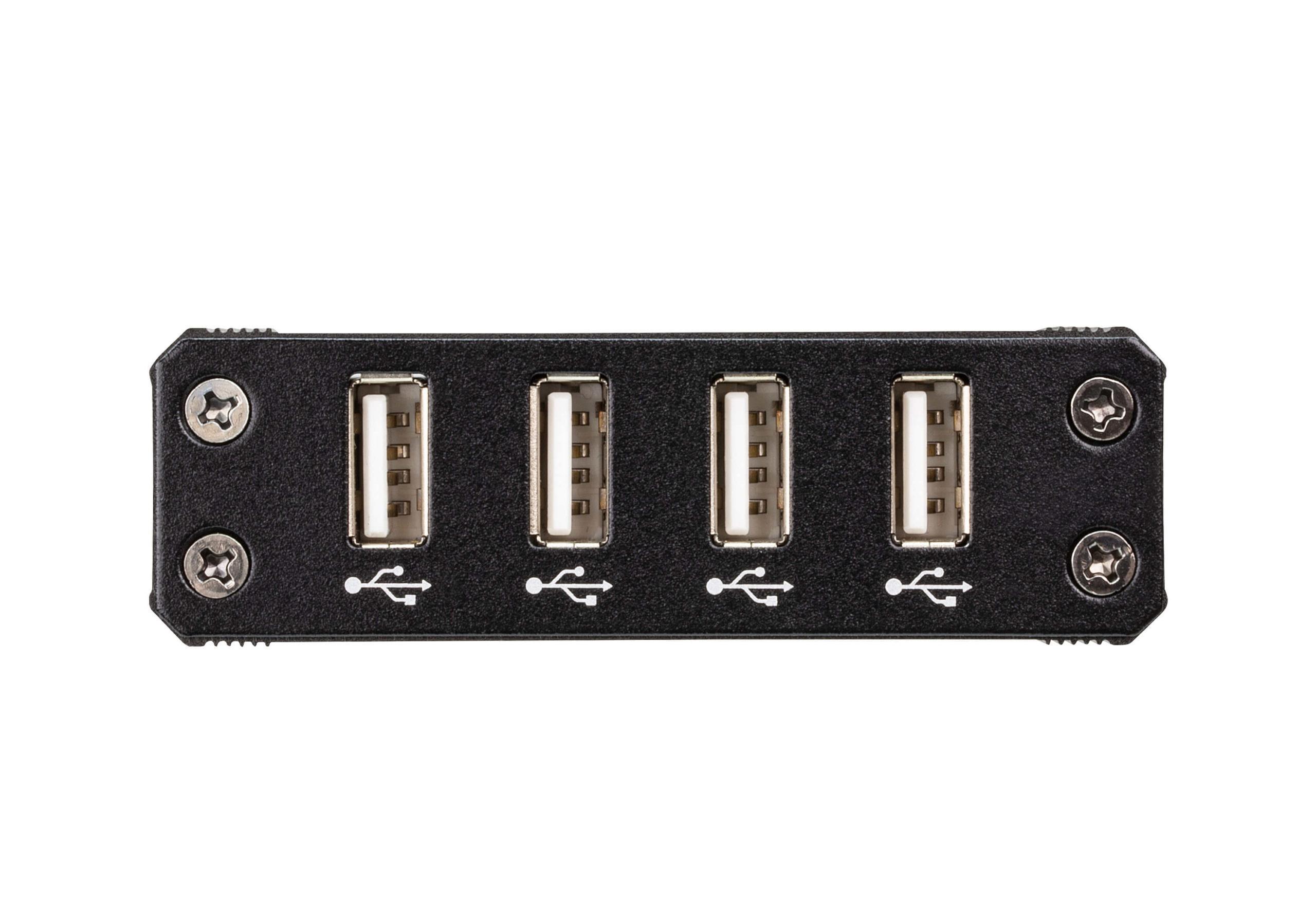

Downstream Port 4 x USB Type A Female
1 x Micro USB Female (Firmware Upgrade)
Power 1 x DC Jack
USB Specification USB 2.0 High-Speed
Cable Type CAT 5 UTP Cable
Signal Range 100m
Status 2 x LED
Power Consumption DC5V:1.708W:8BTU
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Weight 0.21 kg ( 0.46 lb )
Housing Metal
Dimensions (L x W x H) 10.15 x 7.90 x 2.44 cm
(4 x 3.11 x 0.96 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

UCE32100 Package Contents:

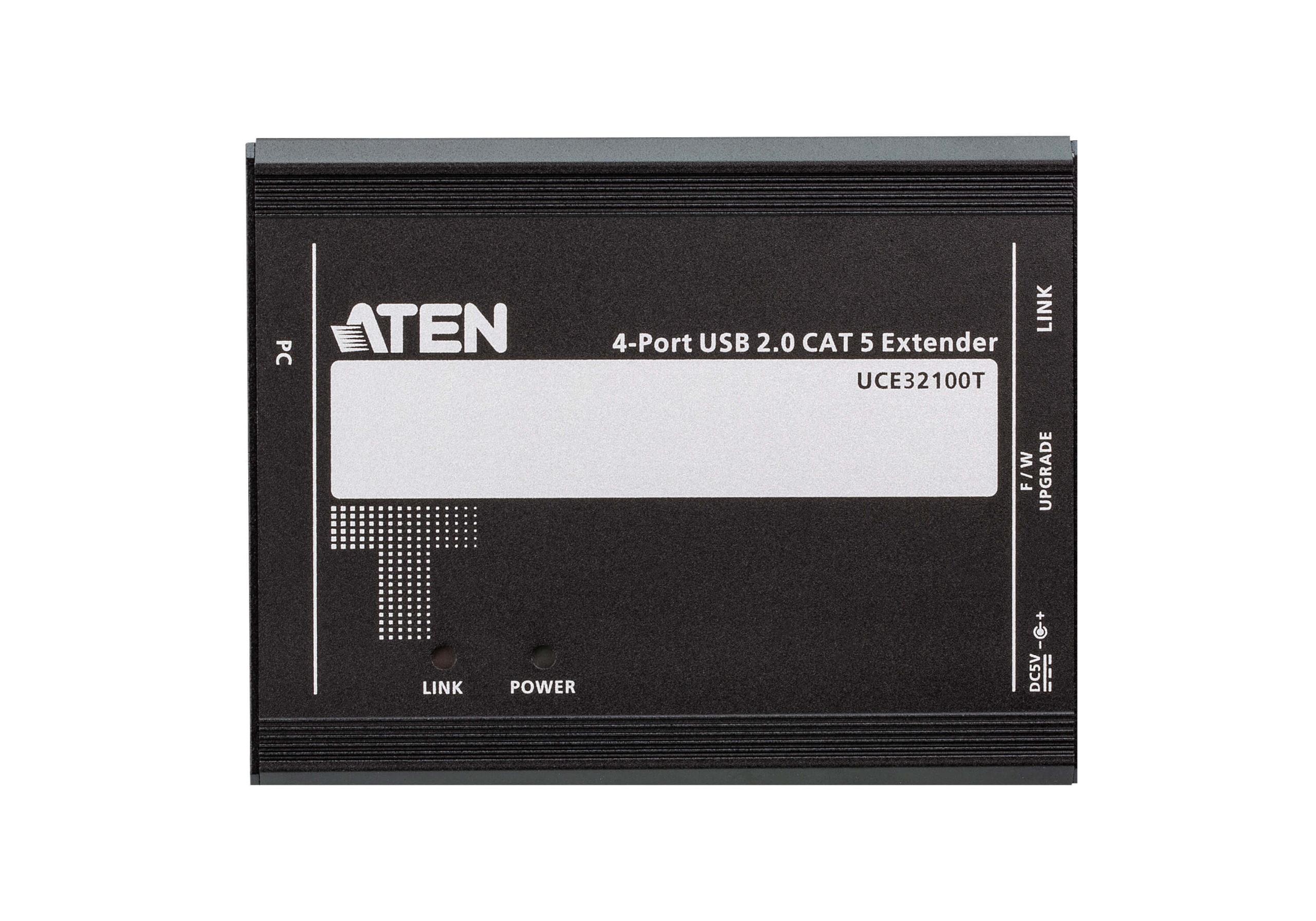

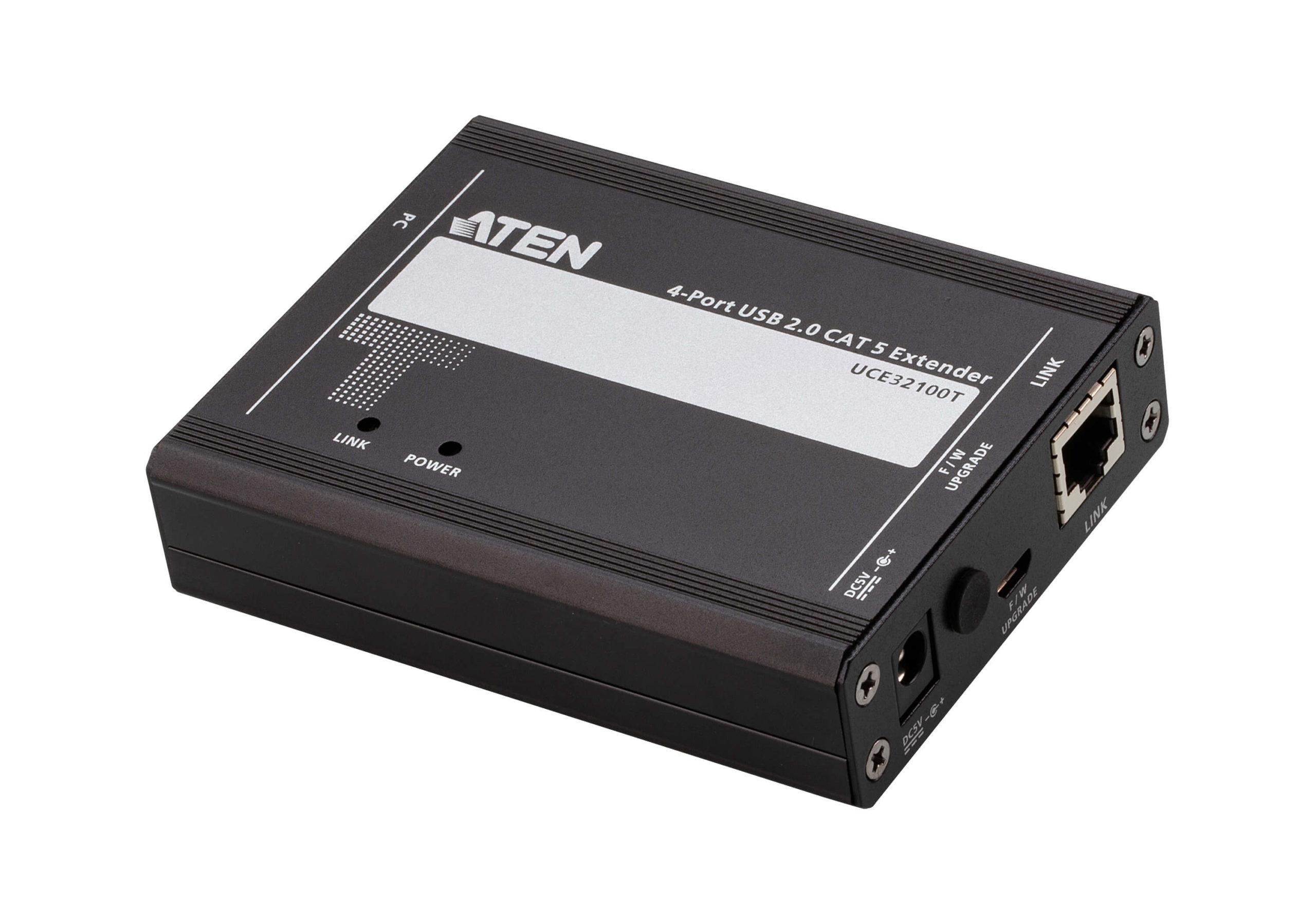

  • 1x UCE32100T USB 2.0 CAT 5 Transmitter

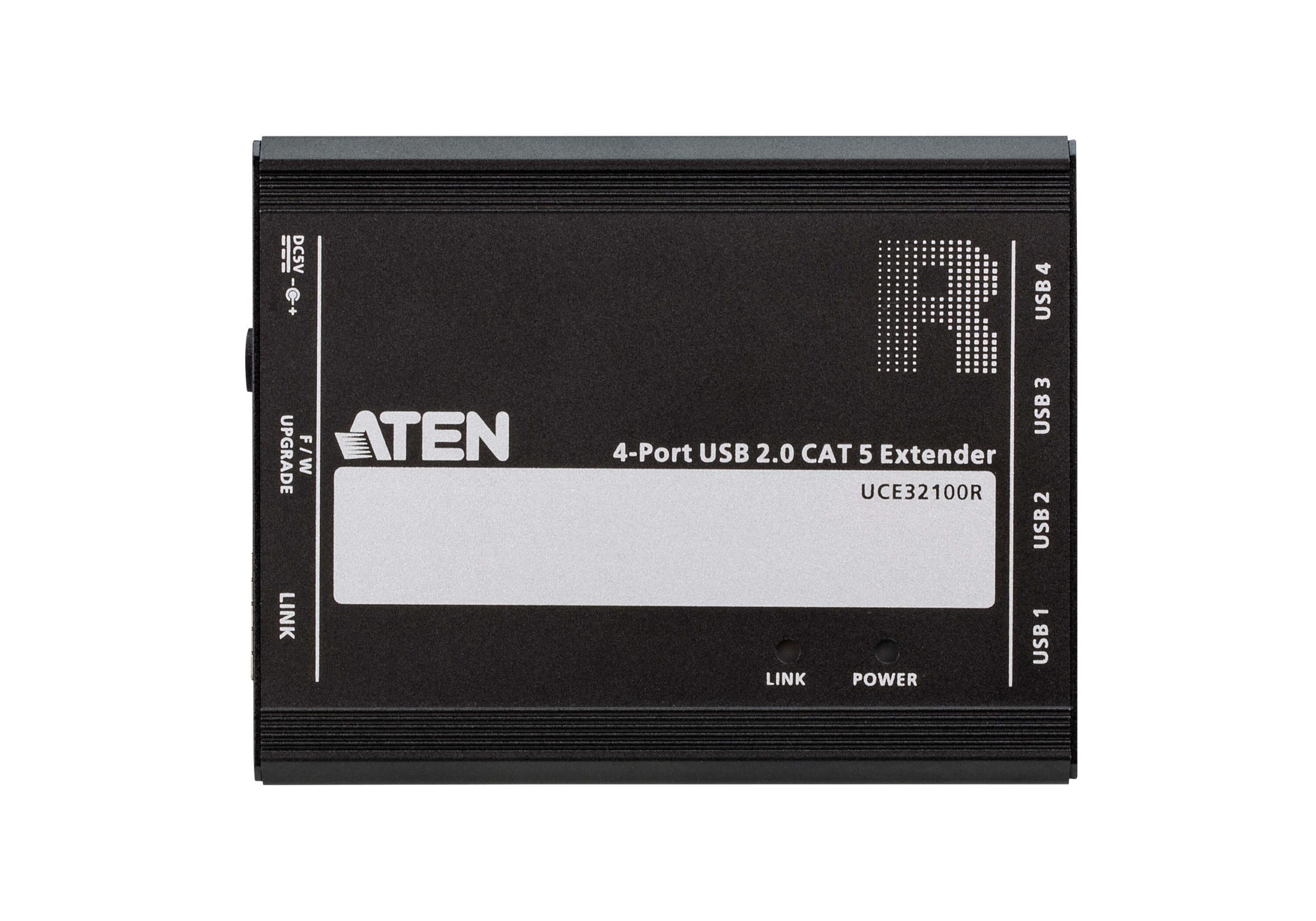

  • 1x UCE32100R USB 2.0 CAT 5 Receiver
  • 1x USB 2.0 Type-A Male to Type-B Male Cable
  • 1x Power Adapter
  • 1x Power Cord
  • 4x Mounting Kit
  • 2x Din Rail
  • 2x DC Jack Lock Kit
  • 2x Rubber Feet Sets
  • 1x User Instructions
