SY-MC4UBT-I S Y Electronics 4K HDBaseT Matrix Input Card with Audio Embedder and RS232 Control for SY-MM Series

£1,324.80 inc VAT

S Y Electronics  HDBT 4 way input card with audio embedder and RS232 control for the S Y Electronics multi-format Matrix Series.

SKU: SY-MC4UBT-I Categories: , , , ,

Description

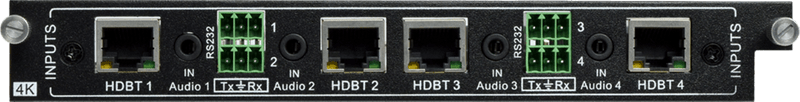

The SY-MC4UBT-I Input Card is a 4 way 4K HDBaseT input card for working with MM-xx Multi-format chassis. It has 4 RJ45 inputs whcih can be paired with the SY-HDBT-70-PT tranmitter for transmission.

The SY-MC4UBT-I Input Crad is a 4 way 4K HDBaseT input card for working with MM-xx Multi-format chassis. It has 4 RJ45 inputs whcih can be paired with the SY-HDBT-70-PT tranmitter for transmission of HDMI, RS232 up to 70m at 1080P.
10.2Gbit/s Bandwidth
HDMI 1.4
4K x 2K
70m transmission over single CATx cable (Cat 6 STP recommended)
Pairs with Transmitter
Bi-directional IR and RS232 pass through for 3rd part device control
Hot-swappable

Input: 4 HDBT TMDS 2.9V to 3.3V, 4 Stereo audio 4 RS232
Gain: 0dB
Bandwidth: 10.2Gbit/s
Max Resolution: 4K x 2K
Crosstalk: <-50dB@5MHz
Transmission Distance: 1080P 70m, 4K X 2K 40m
Return Loss: <-30dB@5KHz
SNR: >70dB@ 100MHz-100M
Audio Format: Embedded HDMI audio PCM, Dolby Digital, DTS, DTS-HD
HDMI Standard: HDMI 1.4
HDCP Management: Compliant with HDCP 1.4
Reference Humility: 10% to 90%
Working Temperature: -10 to 40C.
