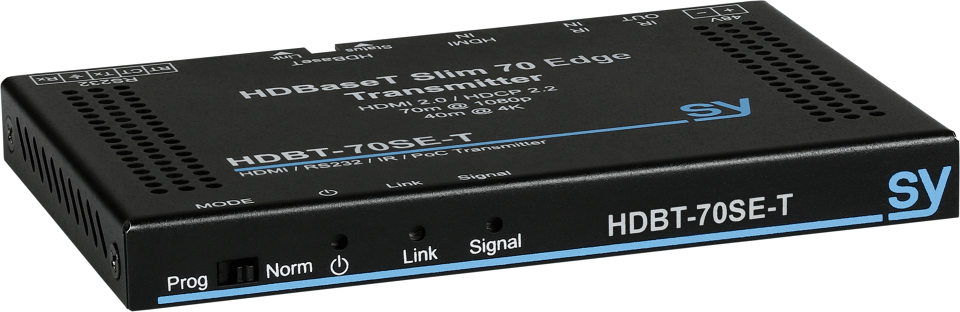

SY-HDBT-70-SE-T S Y Electonics Ultra Slim Edge HDBaseT 70m Transmitter

S Y Electronics SY-HDBT-70-T (Transmitter Only)  HDBaseT HDMI 4K with Bidirectional IR & RS232 can extend a signal up to 70m using a single CATx cable with HDCP support and HDMI 1.4 compatibility (4K data can be extended up to 40m).  It is the slimmest HDBaseT extender on the market measuring only 108 x 70 x 11.5 mm. It supports all HDMI resolutions up to 4K x 2K (including 1080p, 1080i, etc..) as well as 3D and CEC. SY’s ingenuous chassis cooling system ensures maximum reliability for demanding environments.

Manual

£187.20 inc VAT

Compare

The new S Y Electronics SY-HDBT-70-SE-SE Slim Edge HDBaseT HDMI 4K, RS232, IR and Power Over 70m of CAT6 cable (PoC) can happily claim to be the slimmest HDBasetT extender on the market.  It is beautifully made but without compromising the quality we are accustomed to from S Y Electronics. Both IR and RS232 are Bidirectional with Power on Cable allowing both the Transmitter and Receiver units to be powered using only one power supply. The extender offers the flexibility of being powered from either side. This maximum distance reduces to 40m for 4k HDMI signals. These extenders are suited to a wide range of applications in the AV industry, digital signage and at home.

SY-HDBT-70-T Transmitter Features:

  • Slimmest HDBT (only 11.5mm)
  • 70m HDBaseT Output @ 1080p
  • 40m @ 4K 30 UHD
  • Bi-directional RS232
  • IR In and Out
  • HDCP2.2 and CEC compatible
  • 48V DC Power
  • PoC from either end
  • Data rate 10.2 Gbps

SY-HDBT-70-SE-T Transmitter:

  • Slimmest HDBT (only 11.5mm)
  • 70m HDBaseT Output @ 1080p
  • 40m @ 4K 30 UHD
  • Bi-directional RS232
  • IR In and Out
  • HDCP2.2 and CEC compatible
  • 48V DC Power
  • PoC from either end
  • Data rate 10.2 Gbps
