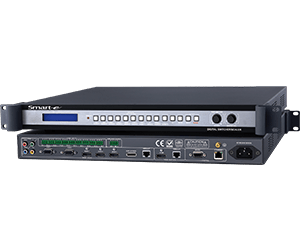

SDS-7000 Smart-e 9 Way Mult-format Presentation Switch

£1,734.00 inc VAT

The Smart-e SDS-7000 is a professional and versatile 9 input presentation scalingswitcher capable of selecting between 9 different digital and analogue inputs including: 3 x HDMI, 1 x HDBaseT, 2 x RGBHV (VGA), 1 x DisplayPort, 1 x Composite and 1 x Component.

Data Sheet

Manual

Description

The SDS-7000 is a professional and versatile 9 input presentation switcher capable of selecting between 9 different digital and analogue inputs including: 3 x HDMI, 1 x HDBaseT, 2 x RGBHV (VGA), 1 x DisplayPort, 1 x Composite and 1 x Component . The video can be scaled up to WUXGA (1920 x 1200) resolution and is outputted as HDMI and HDBaseT. Separate analogue audio inputs and an internal power amplifier provide additional features.

The SDS-7000 presentation switcher offers an unprecedented level of both switching and distribution functionality for high resolution HDMI, HDBaseT or DisplayPort signals together with legacy analogue signals. The scaled output is available via an HDMI or HDBaseT connection transmitting up to100m of Cat 5e-8 cable.

The SDS-7000 sets a new benchmark for complete integrated presentation systems, all of which can be controlled easily via either IP, Infra-Red, RS232 and front panel.

An internal image processor provides seamless switching and scaling up to WUXGA (1920 x 1200) resolutions. Each input also has an analogue stereo audio input which can be selected instead of the embedded signal to be outputted via an internal stereo power amplifier.

Ideal for Meeting and Boardrooms together with Training facilities. Compatible with the 4K-TX and RX900 transmitter and receiver units for remote HDBaseT connectivity.

Compact 1U 19” rack mounting chassis makes for ease of installation with optional upgrade to SmartiP (extra 1U).

  • HDMI, DisplayPort and HDBaseT inputs
  • HDCP 1.3 & HDMI 1.3a compliant
  • Analogue YPrPb, RGBHV & CV inputs
  • HDTV 1080p & 3D compatible
  • PC resolutions up to 1920×1200@60 Hz
  • High bandwidth seamless switching
  • Enhanced EDID management
  • Supports Deep Colour (10 & 12 bit)
  • Scaled HDMI & HDBaseT output
  • Front panel button & RS232 control
  • TCP/IP control
  • Internal stereo 10W poweramp
  • Image processing
  • Compact 1U 19″ rack mounting
  • 3 year warranty
