PE7208G Aten 1U 16A 8 Outlets Intelligent eco PDU

£489.00 inc VAT

Aten PE7208G eco PDU offers remote power control combined with real-time power measurement – allowing you to control and monitor the power status of devices attached to the PDU, either at the PDU device or outlet level, from practically any location via a TCP/IP connection. The PE7208G supports external temperature/temperature & humidity sensors for rack temperature and humidity monitoringCurrent, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting. It features 1 x IEC 320 C20, 7 x C13 and 1 x C19.

Data Sheet

Description

ATEN has developed a new generation of green energy power distribution units (PDUs) to effectively increase the efficiency of data center power usage. The PE7208G eco PDU is an  intelligent PDU that contains 8 AC outlets and is available in IEC socket configuration. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center’s health environment via sensors*.
PE7208G eco PDU offers remote power control combined with real-time power measurement – allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device or outlet level, from practically any location via a TCP/IP connection.

PE7208G eco PDU supports any 3rd party v3 SNMP Manager Software and eco Sensors (Energy Management Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.

With its advanced security features and ease of operation, the PE7208G eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

* Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.

Connections

  • Support 10/100Mbit Ethernet Interface
  • Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1,V2&V3
  • Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
  • Support : eco Sensors, Browser (IE, Firefox, Chrome, Safari)

Metering

  • Outlet level power metering and monitoring
  • Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
  • Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting

Outlet Switch Control

  • Always On
Function PE7208G
Electrical
Nominal Input Voltage 100 – 240 VAC
Maximum Input Current 16A Max
Input Frequency 50-60 Hz

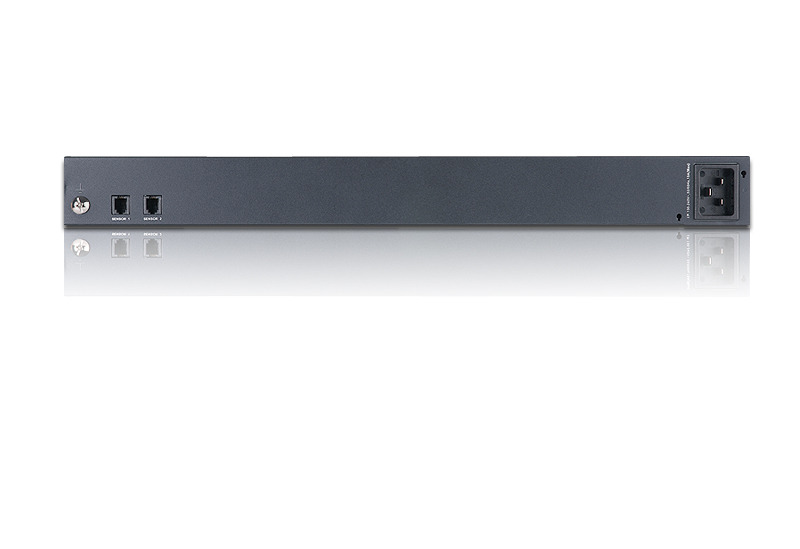

Input Connection 1 x IEC C20
Input Power 3680 VA(Max)

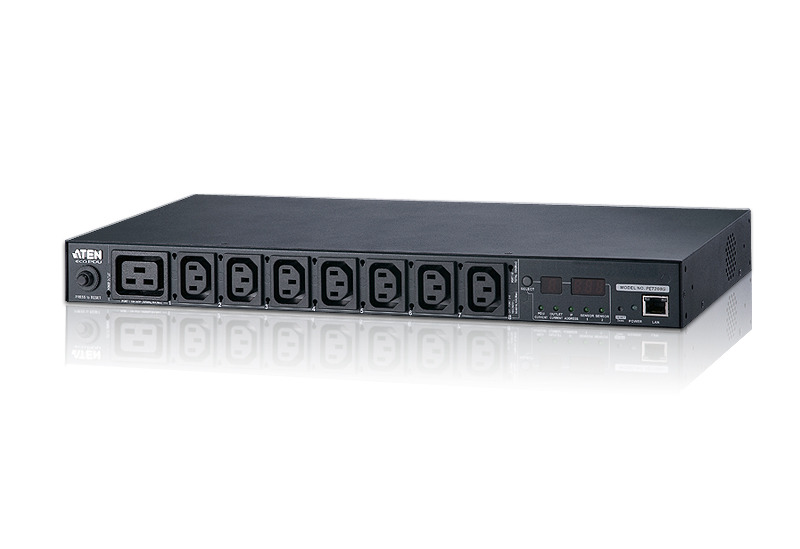

Outlet Type Total : 7 x C13 + 1 x C19
Nominal Output Voltage 100 – 240 VAC
Maximum Output Current (Outlet) C13 : 10A(Max)
C19 : 16A(Max)
Maximum Output Current (Bank) 16A(Max)
Maximum Output Current (Total) 16A(Max)
Breakers 1 x 16A Non-Fuse Breaker
Metering Per Outlet level Current, Voltage, VA , PF and KWh Monitoring
Outlet Switching None
Environment Sensor Port 2
Metering Accuracy Voltage range: 100VAC ~ 250VAC +/-1%
Power range: 100W ~ 5000W +/- 2%
Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Mechanical
Dimension (H x W x D) 43.24 x 4.40 x 21.93 cm
Shipping Dimensions ( H x W x D) 53 x 14 x 31 cm
Weight/Shipping Weight 2.87 / 5.8 kg
Power Cord Length 3 m
Environmental
Temperature (Operating / Storage) 0 – 50°C / -20 – 60°C
Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing
Compliance
EMC Verification CE, Others by Request
Safety Verification TUV-CB, CE-LVD, Others by Request
  • 1x PE7208 eco PDU
  • 1x Mounting Kit
  • 1x Power Cord
  • 1x CD-ROM (Manual, eco Sensors Software)
  • 1x User Instructions
