PE1216G Aten 0U 16 Port Energy PDU

£239.00 inc VAT

Aten PE1216 G 0U 16 IEC C16 Energy PDU features 10A and when integrated with the EC100 Energy Box, the PE1216G will allow you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotely – making your server room efficiently green with ease.

Data Sheet

Manual

Description

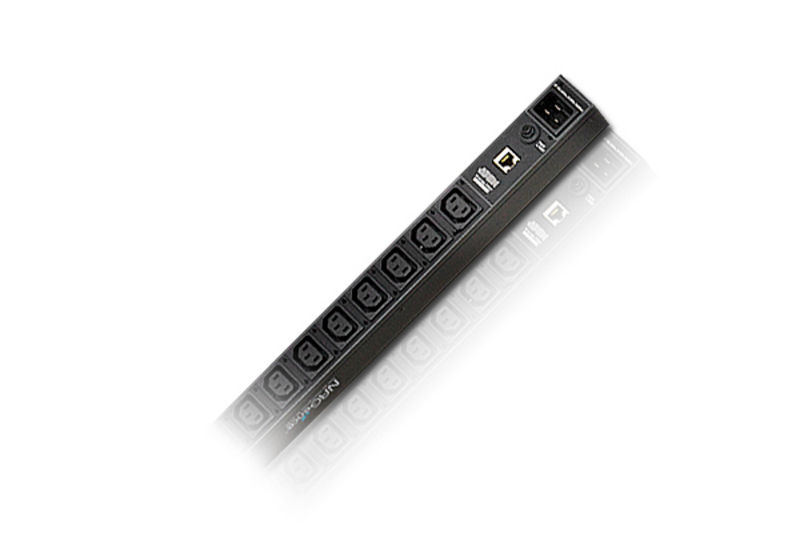

The Aten PE1216G Energy PDU contains 16 AC outlets and is available in IEC configuration. The PE1216G Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.

The PE1216G Energy PDU can be integrated into an installation with the EC1000 Energy Box, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotely – making your server room efficiently green with ease.

  • Space saving 0U rack mount design
  • 16 IEC outlets
  • Real-time PDU current monitoring when used in conjunction with the EC1000 Energy Box
Function PE1216G
Power Outlets Direct 16 x IEC C13
Connectors Inlet 1 x IEC60320 C20
Energy Sensor
Port
1 x RJ-45 Female
Nominal Input Power 100-240V~,
50/60Hz,16A(Max)
Nominal Output Power 100-240V~,50/60Hz Per Outlet 10A (Max) Total : 16A(Max)
Environment Operating Temp. 0 – 50°C
Storage Temp. -20 – 60°C
Humidity 0-80% RH Non-condensing
Physical Properties Power Cord Length 3 m
Housing Metal
Weight 1.3 kg
Dimensions
( L x W x H )
73 x 4.4 x 4.4 cm

PE1216 Diagram

  • 1x PE1216 Energy PDU
  • 1x Power Cord
  • 1x Mounting Kit
  • 1x User Instructions
