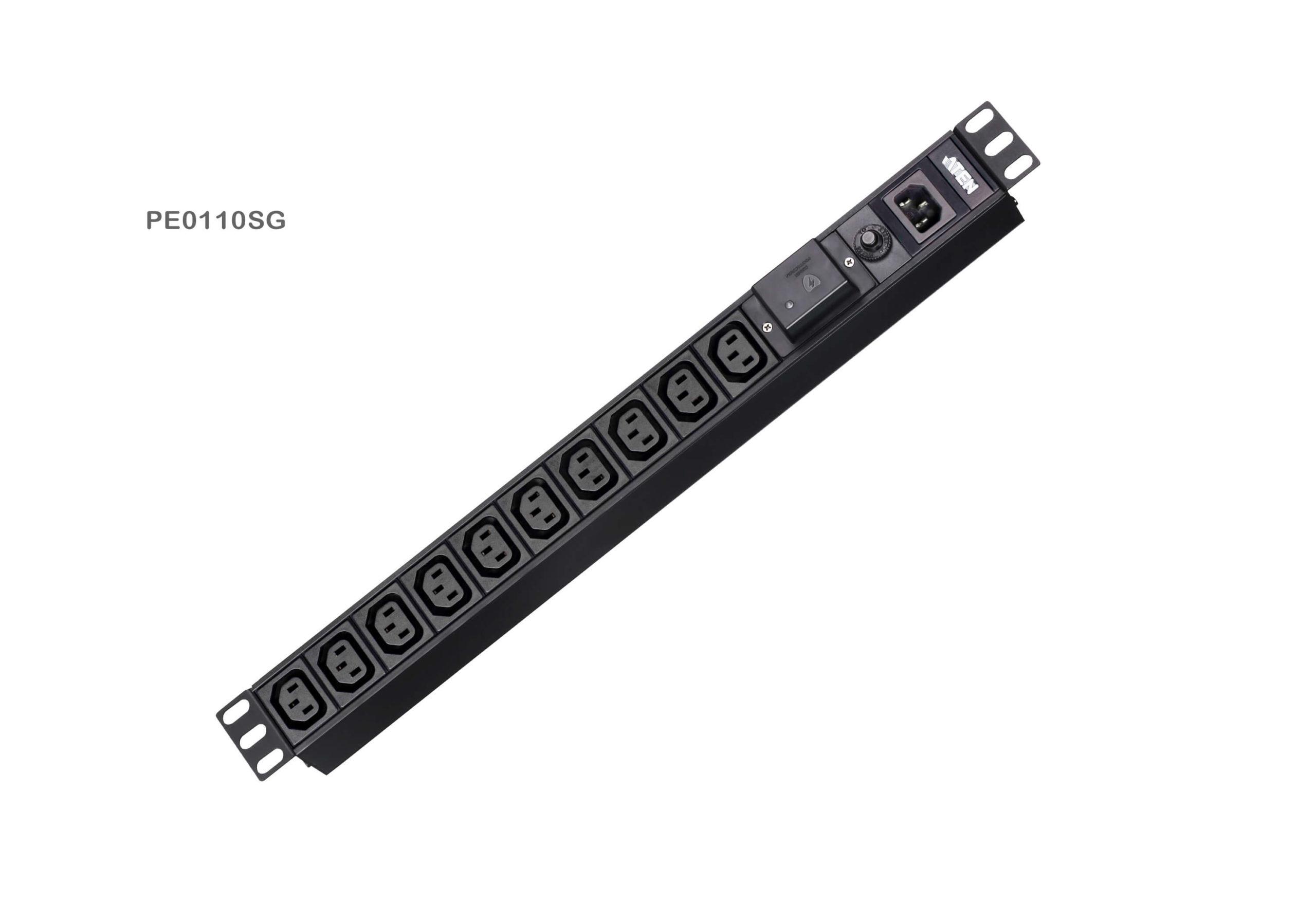

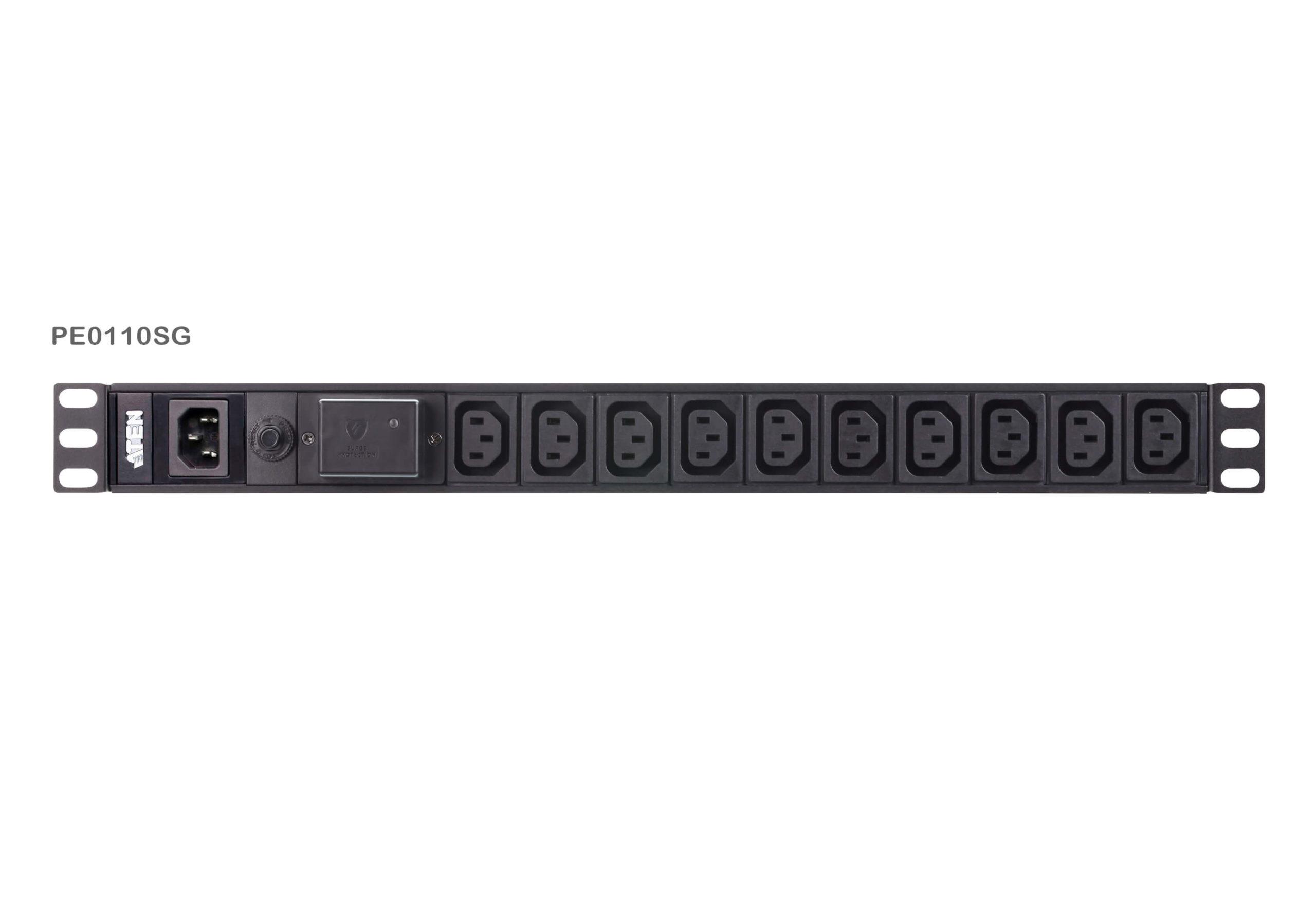

PE0110SG Aten 1U 10-outlet Basic PDU with Surge Protection

The Aten PE0110SG 10-outlet 1U rack mount Basic PDU provides IEC and NEMA output. It features aluminium housing that helps prolong the unit’s life and is surge and over-current protected. It can be used in data centres, server rooms as well as telecom equipment.

Data Sheet

Quick Start Guide

£99.72 inc VAT

Compare

The Aten’s PE0110SG, a 10-outlet, 1U rack mount power distribution unit (PDU), provides IEC and NEMA output. It distributes power to 10 receptacles from a single plug with unfiltered electrical pass-through. The PE0110SG also provides surge protection, prevents damage to your equipment from power surges and spikes. The integrated surge protector includes a LED indicator, letting you know the status of your equipment.

Aluminum housing helps prolong the units life with rugged casing made of impact-resistant material for maximum durability. Basic 1U PDU can be easily mounted to wall, wooden furniture, or work bench.

PE0110SG Features:

  • Space saving -1U rack mount design
  • IEC or NEMA outlet models
  • Surge Protection
  • Over-current Protection
  • Aluminum material
  • Works with data centers, server rooms and telecom equipment

PE0110SG Specifications:

Function PE0110SA PE0110SG
Electrical
Nominal Input Voltage 100-120 VAC 100-240 VAC
Maximum Input Current 15A (Max)
(UL de-rated 12A Max)
10A (Max)
Input Frequency 50-60 Hz 50-60 Hz
Input Connection NEMA 5-15P For G Plug:IEC-320 C14
For Z Plug:Chinese 10A
Input Power 1800VA(Max);1440VA(UL de-rated) 2400VA(Max)
Outlet Type (10) NEMA 5-15R (10) IEC-320 C13
Maximum Output Current (Outlet) 15A (Max)
(UL de-rated 12A Max)
10A (Max)
Maximum Output Current (Bank) 15A (Max)
(UL de-rated 12A Max)
10A (Max)
Maximum Output Current (Total) 15A (Max)
(UL de-rated 12A Max)
10A (Max)
OPD(Overcurrent Protection Device) YES YES
Physical Properties
Dimensions (L x W x H) 48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)
48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)
Weight 0.66 kg ( 1.45 lb ) 0.66 kg ( 1.45 lb )
Power Cord Length 10ft(14#) 10ft(3×1.5mm2)
Environmental
Temperature (Operating / Storage) 0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
Elevation (Operating / Storage) 3000m 3000m
Compliance
EMC Verification FCC Class A CE Class A
Safety Verification By Request CE,LVD
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x PE0110SG Basic PDU
  • 1x Power cord
  • 1x User Instructions
