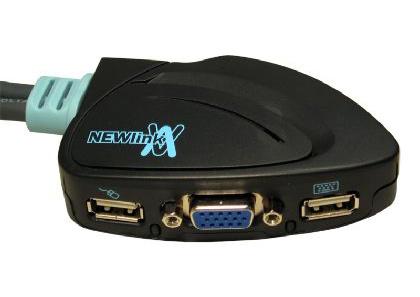

NLKVM-USB2 NewLink Micro 2 Port USB KVM Switch

The NewLink NLVM-USB2 is a 2-port USB & VGA KVM switch features a Micro size design, hot-key functions, Auto-scan functionality and a high VGA resolution up to 1920 x 1440 DDC & DDC2.


The NEWLink Micro NLKVM-USB2 USB KVM CPU with attached cables allows users to access two USB enabled computers from one USB Keyboard, USB Mouse and SVGA Monitor.

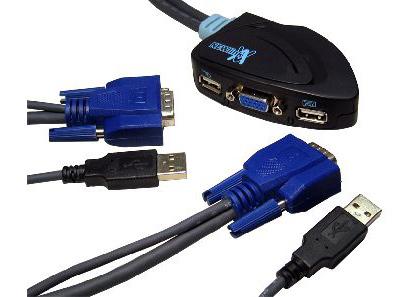

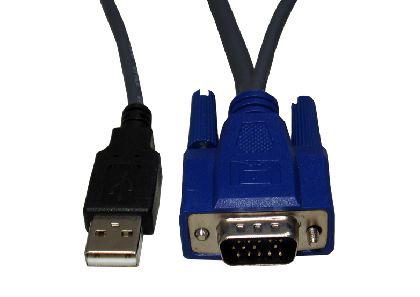

Two cables (1x 1.8Mtr/6ft and 1x 0.6Mtr/2ft) are supplied molded to the NLKVM-USB2 switch. No interface card or software is needed and installation is as easy as connecting cables from the CPU Switch to your computers.

The NLKVM-USB2 Micro USB KVM Switch is independent of computer operating systems.

Operation is as simple as entering hot-key commands from a keyboard.

NLKV-USB2 Features:

  • Micro Compact in size design, with cables already mounted on to the switch
  • Hot-key functions allow easy computer access
  • Hot Plug and play system configuration
  • High VGA resolution of up to 1920×1440, DDC, DDC2
  • Auto-scan automatically selects computers sequentially
  • Operating system independent, transparent to all applications
  • Keyboard states automatically saved and restored when switching computers
  • LED indication for easy status monitoring
  • Supports Windows and Linux OS
