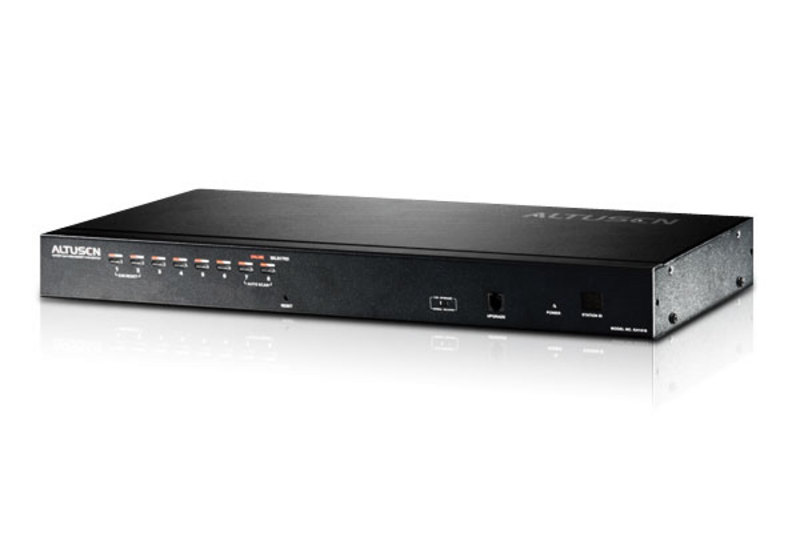

KH1508A-BDL Altusen 8-Port CAT 5 High-Density KVM Switch Bundle

Aten KH1508A-BDL 8 port CAT5 USB /PS2 and VGA rackmount KVM switch bundle with multiple user accounts, multiplatform and firmware upgradable. It supports three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display). The bundle includes 8 sets of CAT 5 KVM KA7570 Adapters and free UK delivery.

Data Sheet

Manual

£595.00 £529.29 inc VAT

Compare

The KH1508A-BDL CAT 5 KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse).  The KH1508A-BDL bundle includes 8 sets of KA7570 CAT 5 KVM adapters and free UK delivery.

Operators can take control of up to 8 computers. By daisy chaining up to 31 additional switches, as many as 256 computers can be controlled from the original KVM console.

These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.

For example, the advanced Adapter ID feature stores the Adapter Cable’s configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality – extending the distance to the servers to up to 50 m* at a resolution of 1280 x 1024.

A KH1508A installation provides one of the best, and most economical, solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH1508A KVM switch.

*With KVM Adapter Cable KA7000 series.

  • One KVM console control up to 8 directly connected computers
  • Space-Saving RJ-45 connectors and Cat 5e/6 cabling
  • By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
  • Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
  • Superior Video Quality- Supports the video resolutions up to 1600×1200@60Hz for up to 40 meters, and 1280×1024@75 Hz for up to 50 meters*
  • Configue port access rights for users on a port – by – port basis
  • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
  • Multiplatform support – PC, Mac, Sun, and serial
  • Multiple User Accounts – Supports up to 10 user and 1 administrator accounts
  • Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
  • Adapter ID
  • Firmware Upgradeable*With KVM Adapter Cable KA7000 series.
Computer
Connections
Direct 8
Max. 256 (via Daisy Chain)
Port Selection OSD (On Screen Display); Hotkeys Pushbuttons
Connectors Console Ports Keyboard 1 x 6-pin Mini-DIN Female (Purple);
1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN Female (Green);
1 x USB Type A Female (White)
KVM Ports 8 x RJ-45 Female
Daisy Chain In 1 x DB-25 Female (Black)
Out 1 x DB-25 Male (Black)
F/W Upgrade 1 x RJ-11 Female (Black)
Power 1 x 3-prong AC socket
Switches Port Selection 8 x Pushbutton
KVM Rest 1 x Semi-recessed Pushbutton
F/W Upgrade 1 x Slide
Power 1 x Rocker
LEDs Port On Line 8 (Green)
Selected 8 (Orange)
Power 1 (Blue)
Station ID 1 x 2 Digit 7-segment (Orange)
Emulation Keyboard / Mouse PS/2; USB
Scan Interval 1–255 sec.
Video 1600 x 1200 @ 60 Hz (40 m);
1280 x 1024 @ 75 Hz (50 m)
I/P Rating 100–240V AC; 50/60 Hz; 1A
Power Consumption 120V/5.8W; 230V/6W
Environment Operating Temp. 0 – 40°C
Storage Temp. -20 – 60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 2.74 kg
Dimensions
(L x W x H)
43.72×15.58×4.40cm
  • 1x KH1508A 8-port Cat 5 High-Density KVM Switch

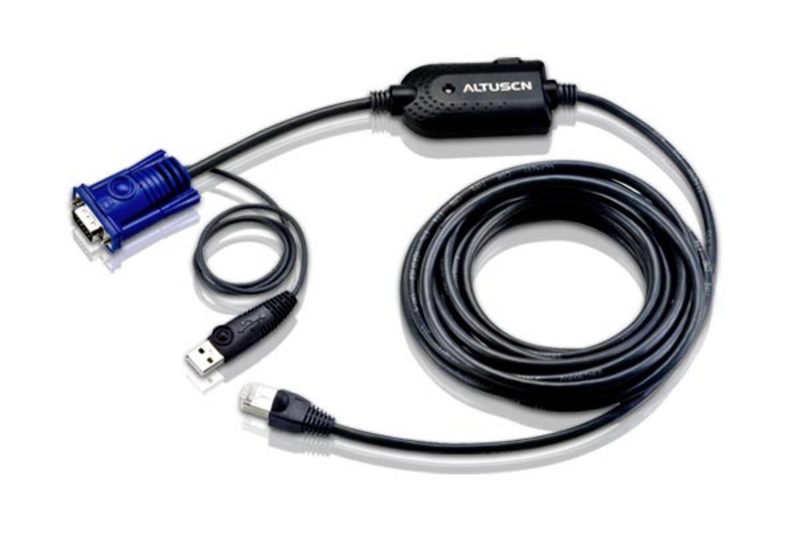

  • 8 x KA7970 KVM Modules (Dongles)
  • 1x Firmware Upgrade Cable
  • 1x Power Cord
  • 1x Rack Mount Kit
  • 1x Foot Pad Set (4 pcs.)
  • 1x User Instructions
