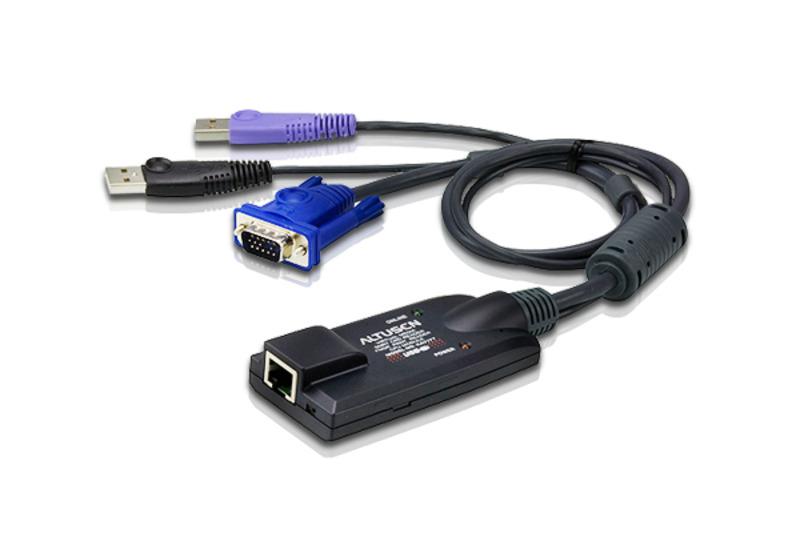

KA7177 Aten USB Virtual Media KVM Adapter with Smart Card Support

£125.00 inc VAT

The Aten KA7177 KVM Adapter Cable connects the KVM switch to the VGA video and USB ports of the target computer. The KA7177 also provides a USB plug to connect the target computer for Smart Card/CAC support. It features Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances, keyboard and mouse emulation – keeps your server functioning smoothly when it is disconnected from the switch’s KVM port or relocated to different KVM port and superior video quality – supports resolution of up to 1600 x 1200 within the distance of up to 50m.

Data Sheet

Description

The KA7177 KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. The KA7177 also provides a USB plug to connect the target computer for Smart Card/CAC support. With its small form factor and light weight design, it represents the next generation of KVM Adapter Cables – offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

  • Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
  • Keyboard and mouse emulation – keeps your server functioning smoothly when it is disconnected from the switch’s KVM port or relocated to different KVM port
  • Lifetime firmware upgrades
  • Superior video quality – supports resolution of up to 1600 x 1200 within the distance of up to 50m
  • Built in ASIC for greater reliability and compatibility
  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, Sun)
  • Compact size
  • Virtual Media Support
  • Smart Card / CAC Reader Support*1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) supported
Connectors
Link 1 x RJ-45 Female
Computer 2 x USB Type A Male
1 x HDB-15 Male
LEDs
Online 1 (Green)
Power 1 (Orange)
Physical Properties
Housing Plastic
Weight 0.16 kg
Dimensions (L x W x H) 9.00 x 4.30 x 2.18 cm
  • 1x KA7177 KVM Adapter Cable
  • 1x Rack Mount Kit
  • 1x Rack Mounting Guide
