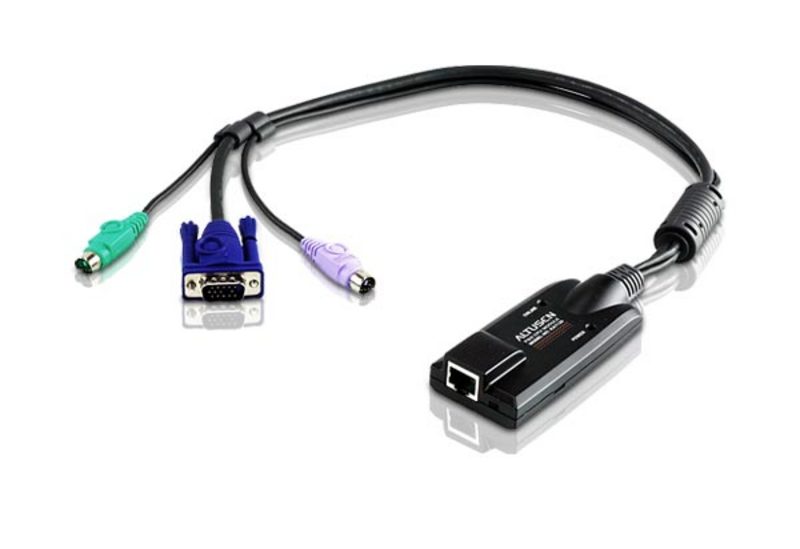

KA7120 Aten PS/2 & VGA CAT5 Module

£109.00 inc VAT

Aten KA7120 USB & VGA Module that is hot pluggable and supports aup to 1600 x 1200 resolution up to 50m. This module is suitable for the Altusen KH1508A, KH1508AI, KH1516A, KH1516AI, KH2508A, KH2516A, KN and KM Series.

Data Sheet

Description

The KA7120 PS/2 KVM Adapter Cable connects the KVM switch to the video and PS/2 mouse and keyboard ports of the target computer. With its small form factor and light weight design, it represents the next generation of PS/2 KVM Adapter Cables – offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

  • Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
  • Keyboard and mouse emulation – keeps your server functioning smoothly when it is disconnected from the switch’s KVM port or relocated to different KVM port
  • Lifetime firmware upgrades
  • Superior video quality – supports resolution of up to 1600 x 1200 within the distance of up to 50m
  • Built in ASIC for greater reliability and compatibility
  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC)
  • Compact size*1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) not supported by KA7xxxx KVM Adapter Cables
Connectors Link 1 x RJ-45 Female
Mouse to computer 1 x Min Din 6 Male
Keyboard to computer 1 x Min Din 6 Male
VGA to computer 1 x HDB-15 Male
LEDs On Line 1 (Green)
Link 1 (Orange)
Physical Properties Housing Plastic
Weight 0.12 kg
Dimensions ( L x W x H ) 9.00×4.30×2.18cm

  • 1x KVM Adapter Cable
  • 1x Rack Mount Kit
  • 1x Rack Mounting Guide
