DSK-2H Smart-AVI 2-port USB, HDMI 4K Ultra-HD Cable KVM Switch with Audio

The DSK-2H is plug-and-play, ready to install and use in under three simple steps:

Connect Computers to the DSK-2H: Plug the DSK-2H into the USB ports and HDMI output connectors on your target PCs
Connect your HDMI display and KM console: set up your command console and connect to the DSK-2H.
Power up your systems and control them with ease: once connected PCs are activated, the DSK-2H shares their power and will automatically send signals to your command console.

Description

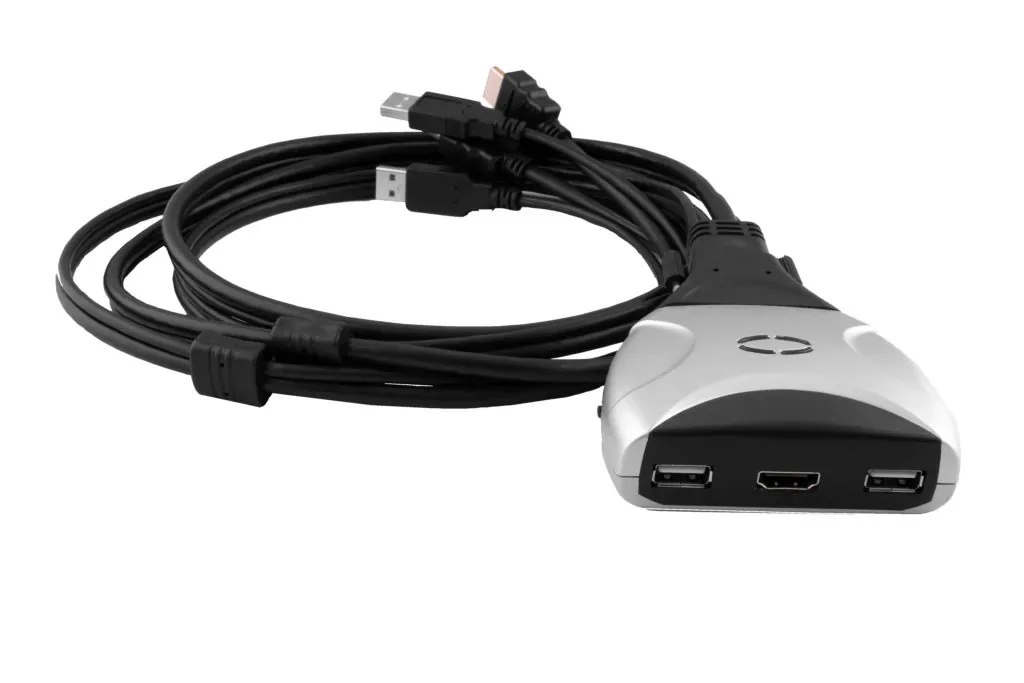

SmartAVI DSK-2H is a 2-port USB HDMI 4K video and stereo cable KVM switch. The DSK-2H is used to control up to two connected computers’ keyboard-mouse functions with video from HDMI displays. It’s ultra-lite all-in-one design and highly-affordable pricing make it the perfect starter KVM unit. The DSK-2H excels in virtually any computer-friendly environment. From office settings to homes, the DSK-2H is easily integrated into pre-existing set-ups, especially for maintenance or temporary workflow supervision. IT technicians and systems specialists will appreciate the DSK-2H’s compact design and mobility, while others will enjoy its user-friendly functionality.

Features

Low-cost KVM solution.
Includes all necessary cables.
Supports USB keyboard-mouse control on up to two connected computer systems.
Supports up to 4K (3840×2160 @ 30Hz).
Supports HDMI displays.
Supports HDMI digital audio.
Easy switching via push button.
Plug-and-play, compact design for simple use & integration.

Specifications

VIDEO & AUDIO
Link Rate	5.4 Gbps/lane
Input Interface	(2) HDMI [male]
Output Interface	(1) HDMI [female]
Resolution	Up to 4K (3840 x 2160 @ 30Hz)
Auto-scan Interval	10s
DDC Compatibility	DDC 1, 2 Support
Audio Input	(2) HDMI Digital Audio IN
Audio Output	(1) HDMI Digital Audio OUT
USB
Input	(2) USB Type A Male
Output	(1) USB Type-A Female
CONTROL
Front Panel	Switch between sources (1 & 2)
Hot Keys	Via Keyboard
OTHER
Dimensions	65mm H x 85mm D x 25mm W
Weight	0.72 lbs
Power	Powered by PC connection
Operating Temp.	-5 to +35°C (+23 to +95°F)
Storage Temp.	-4 to +185°F (+23 to +95°C)
Humidity	5 to 90% (No Condensation)
