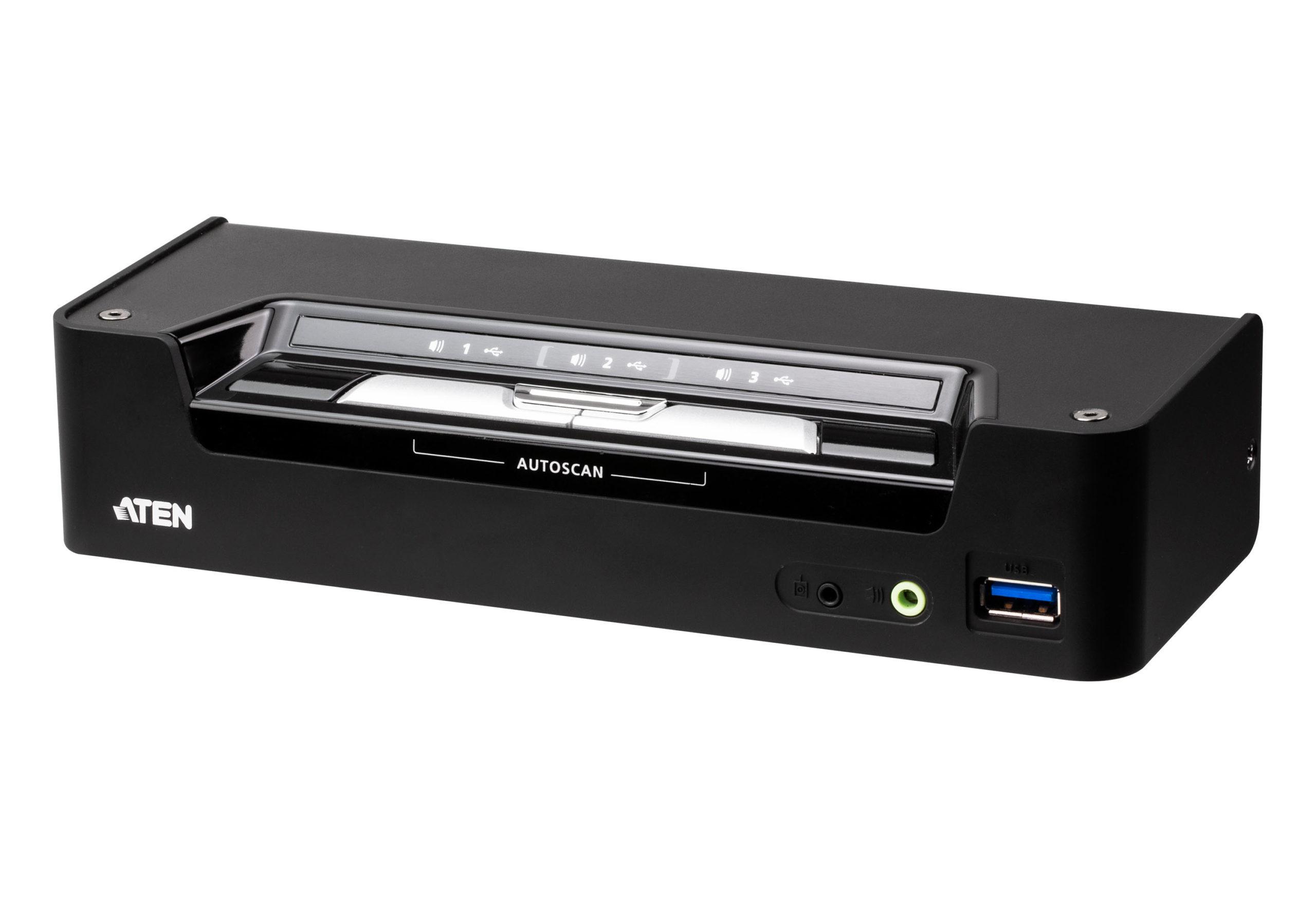

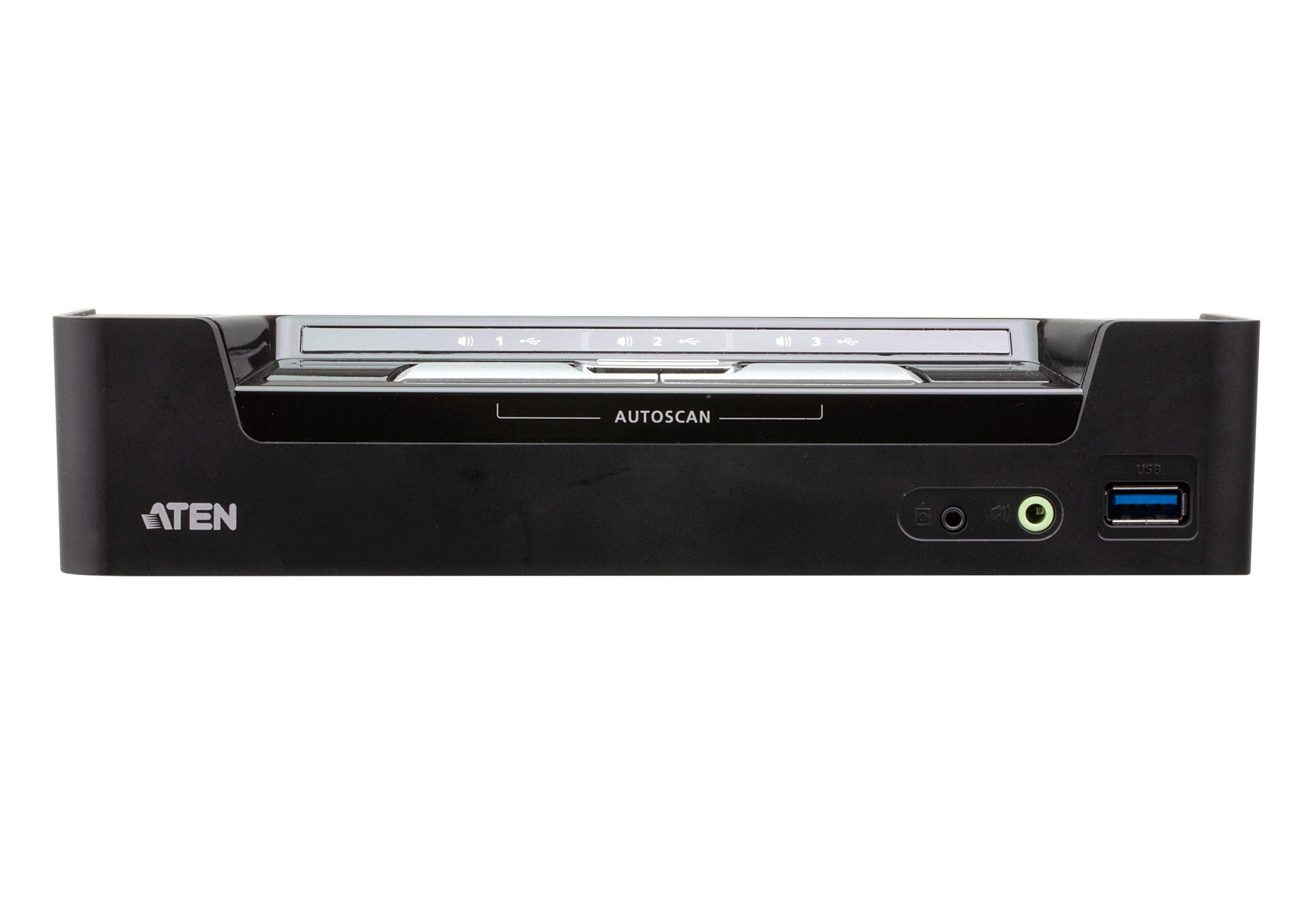

CS1953 Aten 3-Port USB-C DisplayPort Hybrid KVMP Switch with UK PSU

£499.00 inc VAT

The NEW Aten CS1953 3-port USB-C DisplayPort Hybrid KVMP switch allows one user with one USB keyboard, mouse and one DisplayPort monitor to control two DisplayPort computers and one USB-C device. The switch offer superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and provides USB Power Delivery 3.0 for USB-C device charging up to 45W’. Computer selection via pushbuttons, hotkeys, mouse, and remote port selector.

Data Sheet



The CS1953, the industry’s first 3-port USB-C DisplayPort Hybrid KVMP™ Switch, carries out ergonomic desktop style with the power of a KVM and the popularity of USB-C connectivity to facilitate professional and commercial workstation applications with better mobility, so as to enhance total desktop productivity. With the DisplayPort monitor set up on your desktop and access to up to two PCs via DisplayPort and a laptop (or other mobile device) via USB-C, you can expect a rich experience with outstanding 4K visual clarity, as well as fast switching between multiple computers and mobile flexibility.

USB-C for Space-Cost Efficiency

The CS1953 boasts the increasingly popular USB-C interface to facilitate a plug-n-play connection to mobile devices (laptops, tablets, smartphones) without going through a docking station, making it a true space and money saver for your desktop workspace.

DisplayPort for Exceptional AV Performance

The CS1953 supports DisplayPort connectivity between up to two computers, a monitor, and a mobile device (over USB-C). It brings 4K superior viewing quality to your desktop, revealing all your visual content, text and numerical digits in outstanding precision.

Plug In, Power On

By enabling the USB-C device power delivery 3.0 standard, your mobile devices start charging upon connection to the CS1953, elevating your desktop productivity with even quicker mobility.


The CS1953 is perfectly suited to time-critical and data-intensive operations in desktop workspaces:


The CS1953 is ideal for those who need fast multi-computer switching to handle heavy data processing or verify user-interface development over high performance monitors, such as government staff, marketing professionals, sales warriors and engineers. Simply plug-n-charge your mobile devices when returning to your desktop after meetings or visiting with customers.


The CS1953 is good for those who need increased productivity and high precision for multitasking between computers to monitor diverse data and indicators in trading and sales charts, such as financial and market analysts. In addition, these multi-computer setups can serve as a backup to avoid downtime and financial losses caused by potential equipment failure.

Graphic Design

The CS1953 allows users such as graphic designers and CAD engineers to switch between two computers and your USB-C mobile devices for design artwork in 4K visual quality. You can simply quick plug-n-charge your mobile devices without installing extra hardware, such as a docking station, while keeping a tidy desktop workspace.


The CS1953 allows medical staff to switch between two computers for different medical work, like imaging or referencing patient records. They can examine patient’s diagnostic scans in 4K precision effortless over the screen, as well as simply quick plug-n-charge mobile devices after making daily patient rounds.

The ATEN CS1953 is a hybrid KVMP™ Switch that integrates USB-C device and DisplayPort PC into a desktop workstation. Taking a giant step forward from prior digital-interfaced KVM models, the CS1953 comes with USB Type-C functionality that transfers video, audio, data, and even provides USB Power Delivery 3.0 for USB-C device charging. That means with a single USB-C cable, users can reduce bulky cable setups and experience a better working environment.

Complying with DisplayPort 1.2 standard, the CS1953 supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz) for premium images. In addition, its USB-C channel supports DP Alt Mode, so it can deliver DisplayPort signals and work like a standard DisplayPort connection. For added flexible usage, the CS1953 can convert signals from DisplayPort to HDMI or DVI with its DisplayPort Dual-Mode technology (DP++).

Featuring these robust functionalities and an unbeatable combination of USB 3.1 Gen 1 data transfer speed convenience, bus-powered design, and user-friendly port switching methods including hotkeys, mouse and remote port selector etc., the CS1953 allows users to keep up with the latest innovations in desktop multimedia and work smarter than ever.


  • One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers, one USB-C device and share two USB peripherals
  • Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Provides USB Power Delivery 3.0 for USB-C device charging up to 45W1
  • Computer selection via pushbuttons, hotkeys, mouse2, and remote port selector
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
  • Independent switching of KVM, USB peripheral, and audio focus3
  • DisplayPort 1.2 compliant; HDCP 1.4 compliant
  • Supports HD Audio3
  • Supports DisplayPort Dual-Mode technology (DP++)4
  • Firmware upgradeable
  • Bus-powered5Note:
    1. An additional power adapter is needed on the CS1953 for USB-C device charging to work.
    2. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
    3. HD audio through DisplayPort channel cannot be switched independently.
    4. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source’s DP++ compatibility.
    5. The unit can be bus-powered by the connected KVM sources via USB ports.

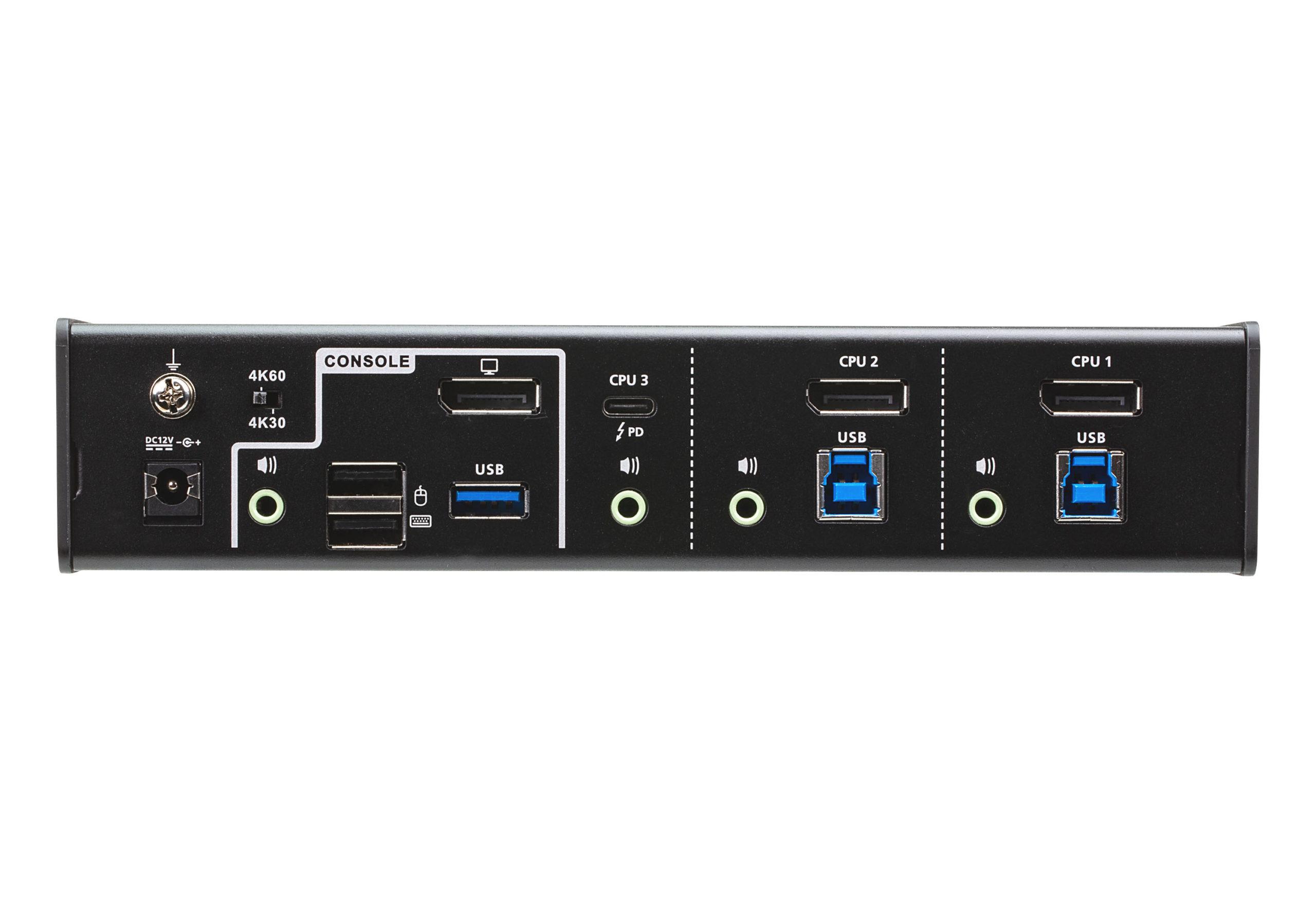

Computer Connections 3
Port Selection Hotkey, Pushbutton, Mouse, Remote Port Selector
Console Ports 2 x USB Type A Female
1 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports CPU1 and CPU2:
2 x USB3.1 Gen1 Type B Female (Blue)
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
1 x USB Type-C Female (Black)
1 x 3.5mm Audio Jack Female (Green)
Remote Port Selector 1 x 2.5mm Audio Jack Female (Black)
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front, 1 x rear)
Selected 3 x Pushbutton
Mode Switch 1 x Slide Switch
Audio 3 (Green)
KVM 3 (Orange)
USB 3 (Green)
Keyboard / Mouse USB
Video 4096 x 2160 @ 60Hz
Scan Interval 1-99 Seconds (Default: 5 sec.)
Power Consumption DC12V:5.78W:269BTU
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.50 kg ( 1.1 lb )
Dimensions (L x W x H) 20.63 x 7.54 x 4.40 cm
(8.12 x 2.97 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch
  • 2x DisplayPort 1.2 Cables
  • 2x USB 3.0 Type-A to Type-B Cables
  • 1x USB-C Cable
  • 3x Audio Cables
  • 1x Remote Port Selector
  • 1x User Instructions
  • 1x Power Adapter*
  • Note: *The CS1953 is provided in two packages; one package contains a power adapter, the other does not.
