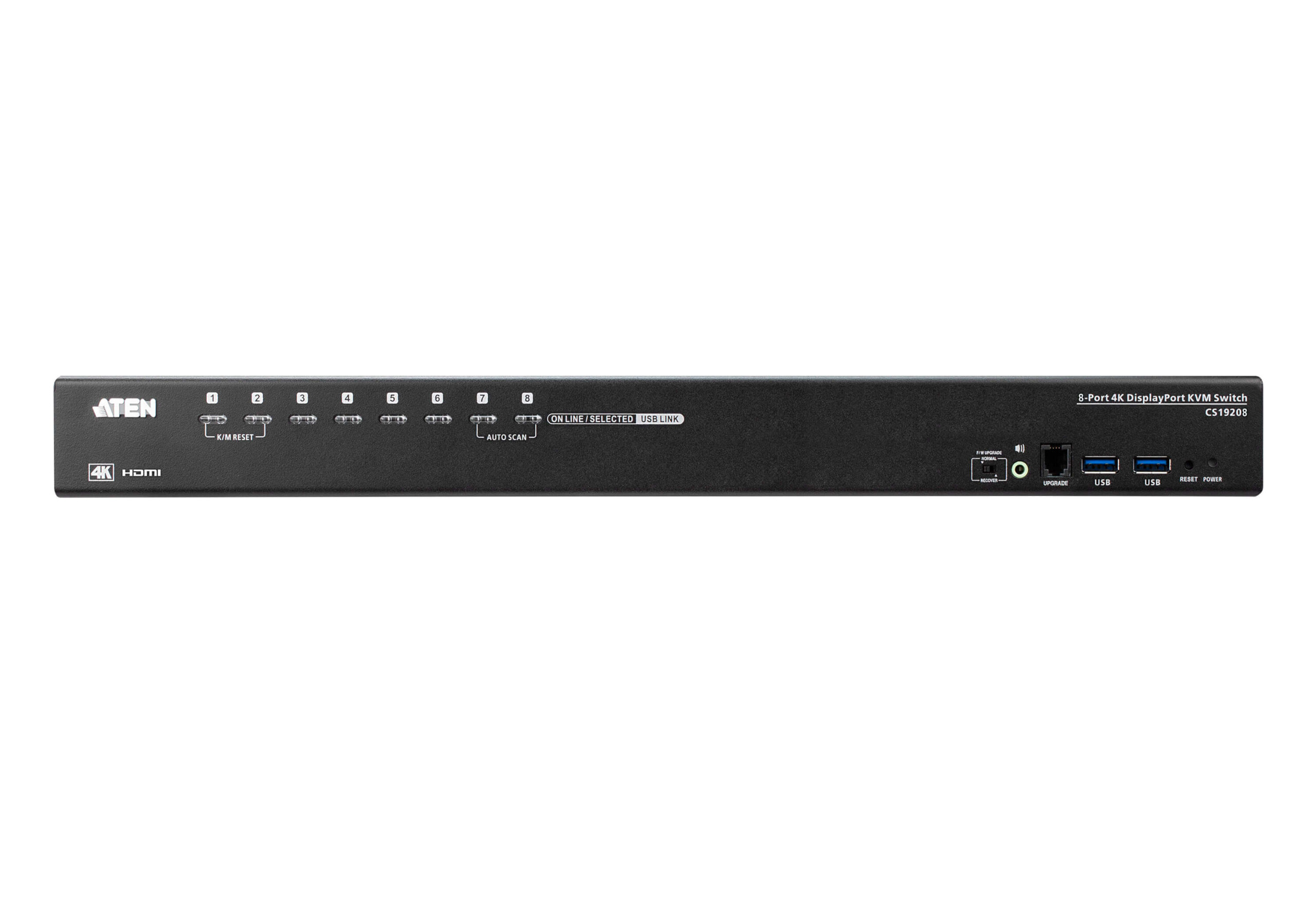

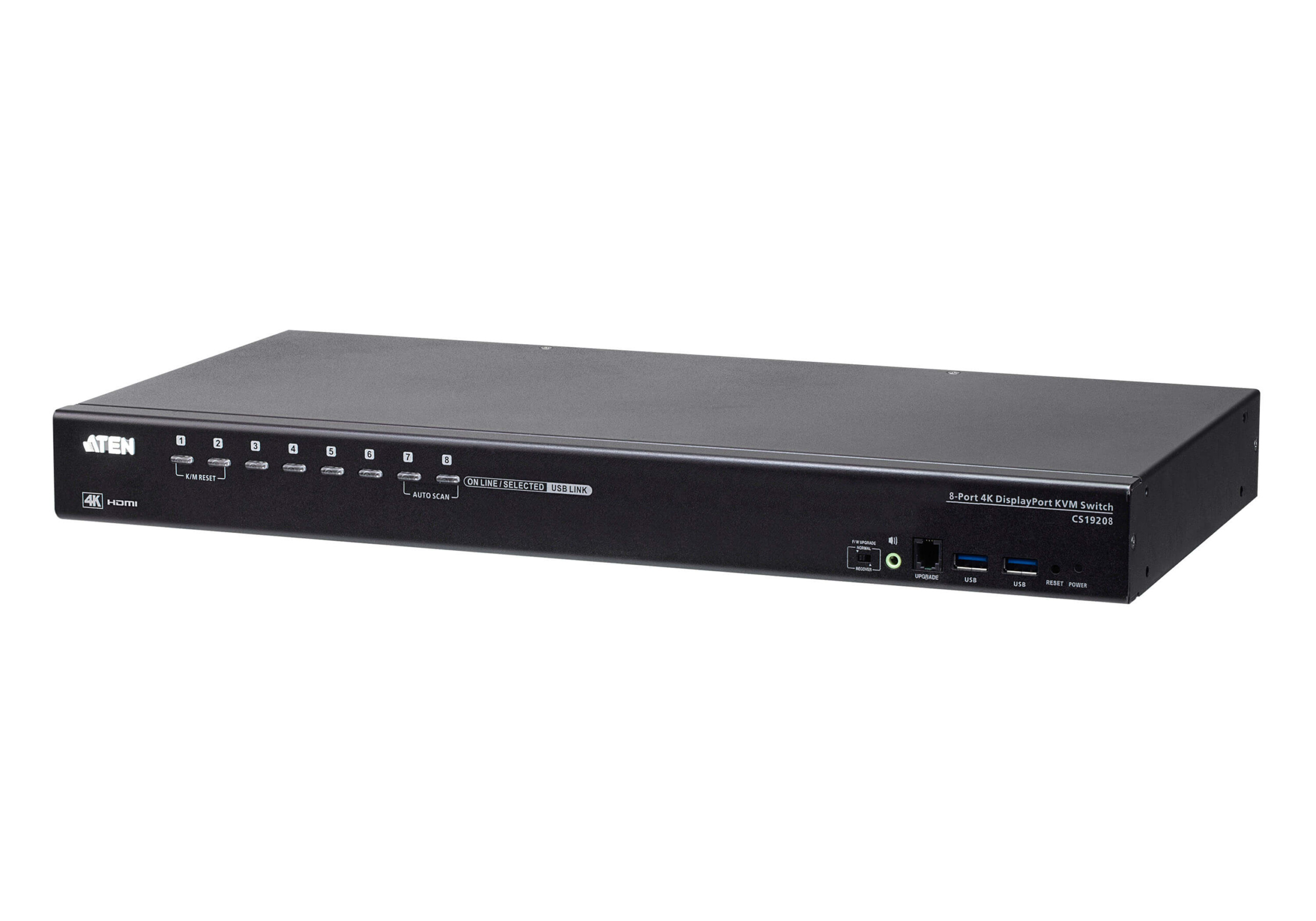

CS19208 Aten 8-Port USB 3.0 4K DisplayPort KVM Switch

£1,199.00 inc VAT

The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.



Data Sheet

Manual

Description

The CS19208, featuring superior 4K video quality, USB 3.0 peripheral agility, and space-saving rackmount capability, allows 8 computers to be centrally controlled via a single console where IT engineers are enabled to expedite system operations by configuring multiple units simultaneously instead of working one at a time; routine or repetitive tasks and procedures can be promptly replicated and broadcasted on multiple computers in seconds, slashing time, space, and cost, while pursuing strengthened enterprise productivity.

Spectacular 4K DCI Visual Performance

With connection to HDMI or DisplayPort-enabled computers, 4K USB 3.0 Rack KVM Switch series effortlessly enriches console desktop operations with up to 4K DCI (4096 x 2160 @60 Hz) visual excellence. Video sources of high resolution visuals and imaging are displayed with great precision for improved analysis.

Video DynaSync™

Empowered by patented ATEN technology – Video DynaSync™, Rack KVM Switches deliver a smooth viewing experience by maintaining the ideal video settings under all operating systems when switching between ports, speeding up switching between systems, and powering up uninterruptedly while eliminating boot-up display problems.

Broadcast Mode to Expedite Timely Configurations

The practical and efficient Broadcast Mode can be easily invoked via OSD or serial commands to perform the same task or command simultaneously on all connected computers across different OS platforms, including software installation and upgrading, function testing, BIOS flash update, system-wide shutdown, and more, making server management effortless and hassle-free.

Cascadability to Upscale Server Management Efficiency

The number of connected computers can be scaled up to 128 by cascading the CS19208 in the 1st level and the CS19216 in the 2nd level (or cascading the CS19216 in the 1st level and the CS19208 in the 2nd level), leaving room and flexibility for network expansion when needed.

Resilient Multi-Display Setup to Facilitate Live Feeds

When a large amount of complex content needs to be viewed at once or there’s a need to examine intensive data for analysis, up to 8 Rack KVM Switches can be stacked up to allow up to 8 monitors to be set up in a multi-display configuration (such as dual- / triple- / quad-display) to facilitate live feeds among computers at the console desktop.

CS19208 Features:

  • One USB console controls up to eight DisplayPort interface computers and two additional USB 3.0 peripheral devices
  • Cascadable to two levels – controls up to 128 computers1
  • Multi-Display feature – stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
  • Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • EDID Expert™ – selects optimum EDID mode for smooth power-up and highest quality display
  • Supports a DisplayPort or HDMI video output – allows you to choose an appropriate video output and deploy console with flexibility
  • Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound
  • Supports HD audio2
  • Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
  • Independent switching of KVM and USB peripheral focus3
  • Two-level (administrator/user) password authorization for enhanced security protection
  • Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
  • Auto Scan Mode for monitoring all computers
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
  • Mac/Sun keyboard support and emulation4
  • Supports hot-plugging
  • DisplayPort 1.2 compliant; HDCP 2.2 compliant
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Firmware upgradable
  • Supports multimedia, wireless keyboards and mouseNote:
    1. Cascading between CS19208 and CS19216 is available.
    2. HD audio through HDMI and DisplayPort channel cannot be switched independently.
    3. Independent switching is only supported under mouse emulation mode.
    4. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.
Computer Connections
Direct 8
Maximum 128 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton, RS-232 Commands

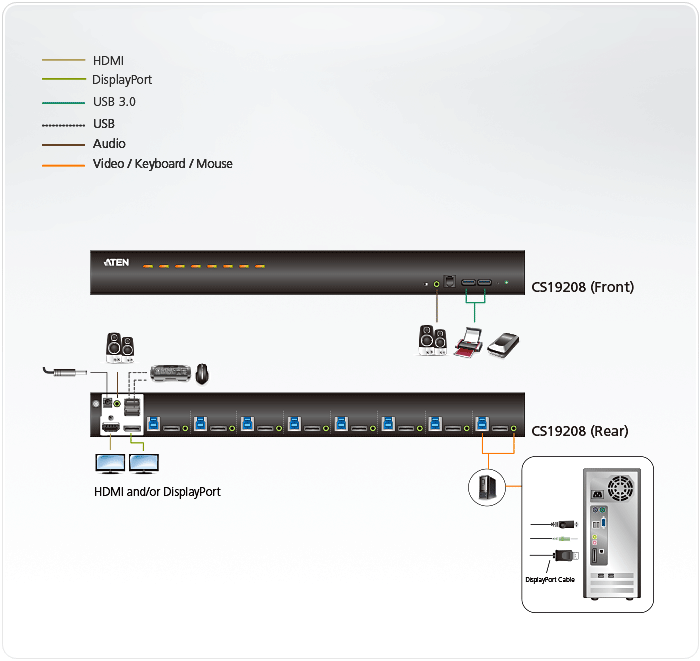

Connectors
Console Ports 1 x DisplayPort Female
1 x HDMI Female (Black)
2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

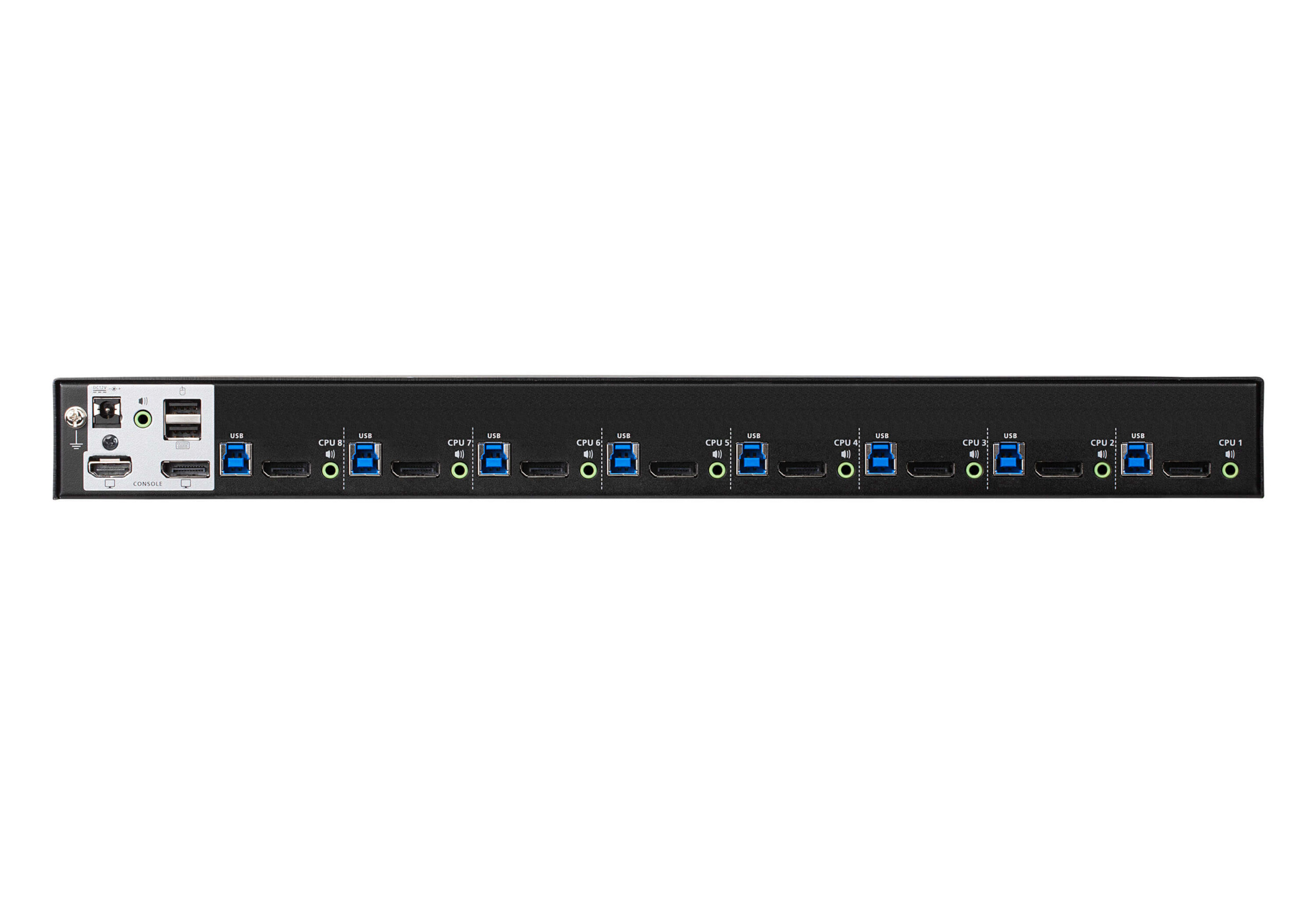

KVM Ports 8 x DisplayPort Female
8 x USB3.1 Gen1 Type B Female (Blue)
8 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade 1 x RJ11 Female (Black)
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front)
Switches
Port Selection 8 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade Recovery 1 x Slide Switch
LEDs
On Line /Selected 8 (Orange)
Power 1 (Green)
USB Link 8 (Green)
Emulation
Keyboard / Mouse USB
Video DisplayPort: 4096 x 2160 @ 60Hz; HDMI: 4096 x 2160 @ 60Hz
Scan Interval 0 – 255 seconds (default: 5 secs.)
Power Consumption DC12V:18.44W:136BTU
Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.11 kg ( 6.85 lb )
Dimensions (L x W x H) 43.24 x 21.43 x 4.40 cm
(17.02 x 8.44 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
  • 2x DisplayPort 1.4 Cables
  • 2x USB 3.0 Cables
  • 2x Audio Cables
  • 1x Firmware Upgrade Cable
  • 1x Foot Pad Set (4 pcs)
  • 1x Power Adapter
  • 1x User Instructions
