CS1308 Aten 8-Port PS/2 & VGA KVM Switch

£269.00 inc VAT

Aten CS1308 8-port PS2 & VGA KVM switch allows one user with one keyboard, one mouse and one VGA monitor to control 8 PS2 & VGA computers. It is cascadable up to two levels to control up to 64 computers and features Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports. Superior video quality – up to 2048 x 1536; DDC2B, hot pluggable and two level password security – only authorized users view and control computers; up to four users and an administrator with a separate profile for each.

Data Sheet

Manual

Description

The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console.

  • One PS/2 console controls 8 computers
  • Cascade up to 2 levels – control up to 64 computers
  • Dual Interface – supports computers with PS/2  keyboards and mice
  • Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Supports USB keyboards for PC, Mac and Sun
  • Superior video quality – up to 2048 x 1536; DDC2B

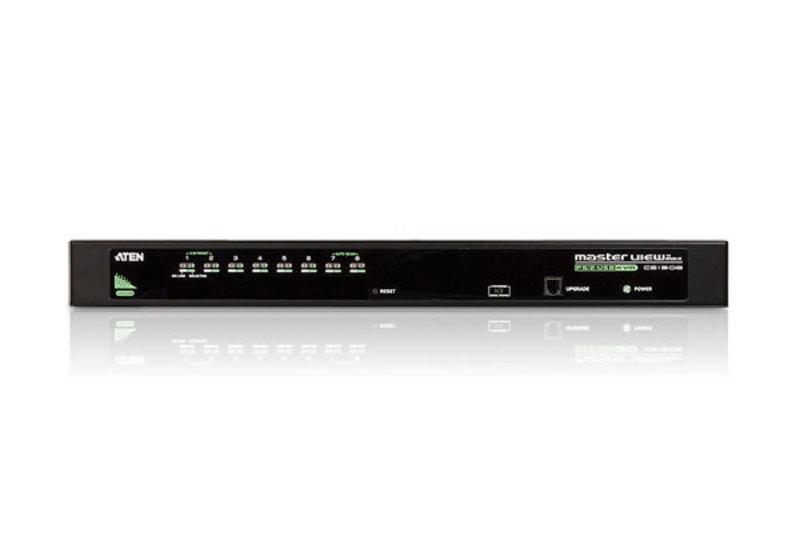

  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Two level password security – only authorized users view and control computers; up to four users and an administrator with a separate profile for each
  • Auto Scan feature for monitoring user-selected computers
  • Hot pluggable – add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Firmware upgradeable
  • No software installation required
  • Designed for desktop or rack mount (19″ system rack, 1U)
Computer Connections
Direct 8
Maximum 64 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton

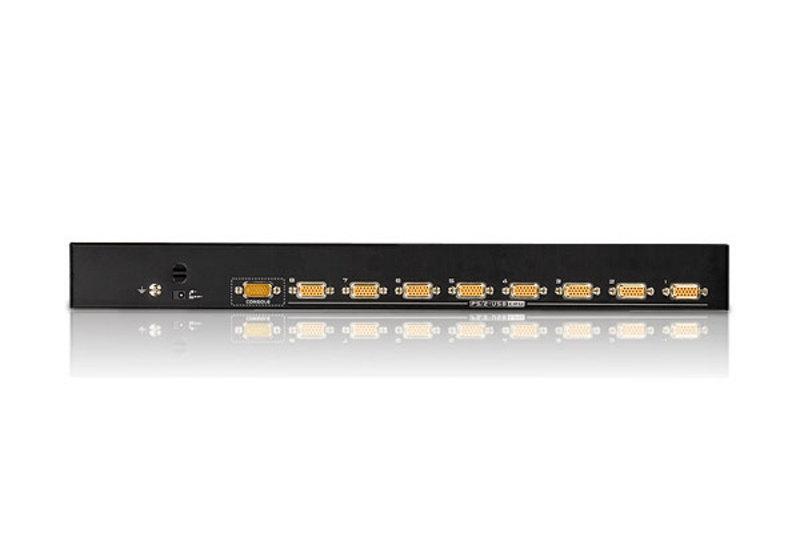

Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 8 x SPHD-15 Female (Yellow)
Firmware Upgrade 1 x RJ-11 Female (Black)
Power 1 x DC Jack
Switches
Ports 8 x Pushbutton
Firmware Upgrade 1 x Slide
LEDs
Online 8 (Orange)
Selected 8 (Green)
Power 1 (Dark Green)
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1 – 255 Seconds (Default: 5 secs)
Power Consumption DC 5.3 V; 5 W
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.89 kg
Dimensions (L x W x H) 43.72 x 16.13 x 4.40 cm
  • 1x CS1308 KVM Switch with Rack Mount Kit
  • 1x Console cable
  • 1x Firmware Upgrade cable
  • 1x Foot Pad set (4 pads)
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions
