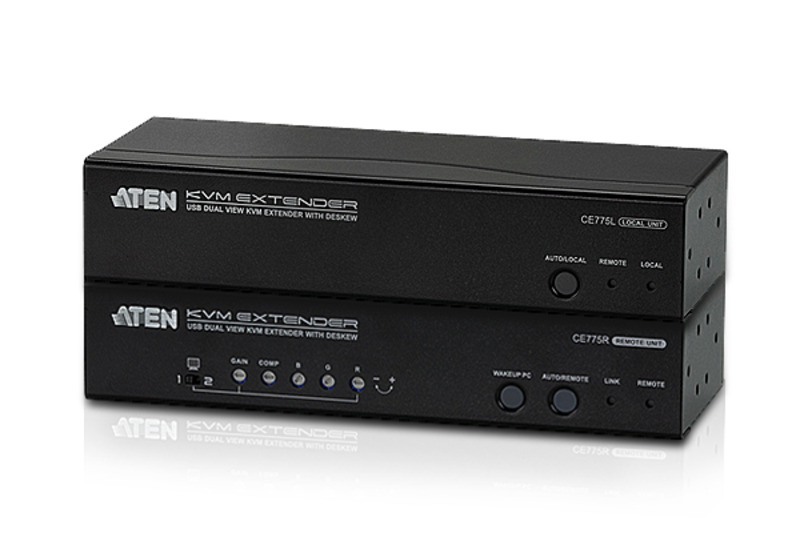

CE775 Aten USB Dual VGA 300m KVM Extender with Deskew

£1,095.00 inc VAT

Aten CE775 USB and DUAL View VGA up to 300m KVM extender has superior video quality – 1920×1200@60Hz(150 m), 1280×1024@60Hz(300m) and On Screen Display to conveniently adjust video quality with the intuitive OSD menu system. The RS-232 Channel allow you to connect to a serial terminal or serial devices such as touchscreens and barcode scanners and its Deskew Function automatically synchronizes the time delay of RGB signals to compensate for distance.

Data Sheet

Manual

Description

ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300m away. The dual view function provides support for two displays, allowing the video output from CE775 to seamlessly display on two monitors.

The CE775advanced PC Wake – Up feature allows you simply to use a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible.

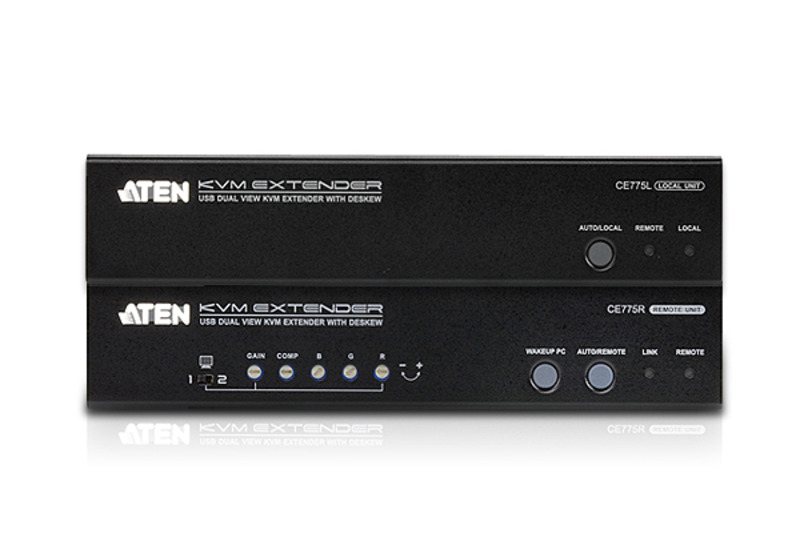

Use the improved built-in front panel tuners on CE775 to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance, easy and fast than ever.

  • Dual View Support – connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables
  • Dual Console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Deskew Function – automatically synchronizes the time delay of RGB signals to compensate for distance
  • PC Wakeup support – from the remote console, simply use a pushbutton to wake a computer at the local site via RS-232
  • Superior video quality – 1920×1200@60Hz(150 m), 1280×1024@60Hz(300 m)
  • Gain/Compensation Control – adjusts signal strength in order to compensate for distance
  • On Screen Display – conveniently adjust video quality with the intuitive OSD menu system
  • RS-232 Channel – allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Sun/Mac keyboard support and emulation *
  • Supports Wide Screen formats *** 1. PC keyboard combinations emulate Sun/Mac keyboards
    2. Sun/Mac keyboards only work with their own computers** The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.

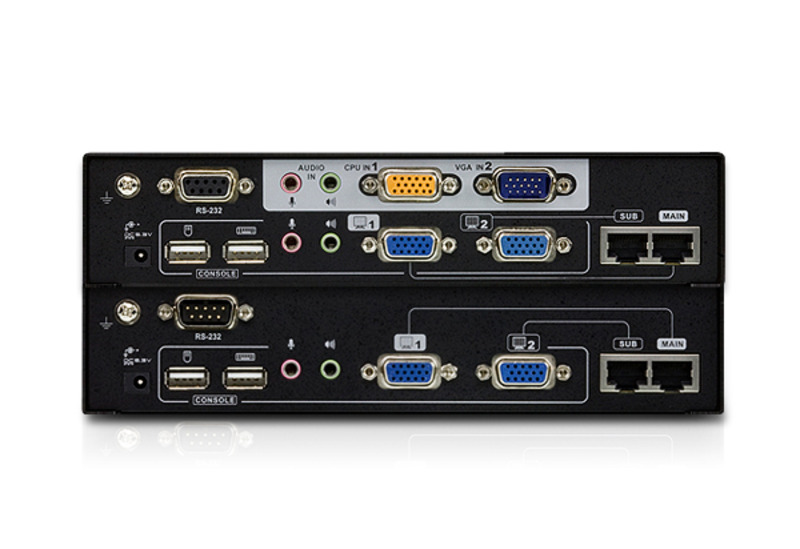

Function CE775L CE775R
Connectors Console
Ports
Keyboard 1 x USB Type A Female (White)
Video 2 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speakers 1 x Mini Stereo Jack Female (Green)
Mic. 1 x Mini Stereo Jack Female (Pink)
Main 1 x RJ-45 Female (Black)
Sub 1 x RJ-45 Female (Black)
KVM
Ports
Keyboard / Video / Mouse 1 x SPHD-17 Female (Yellow) N/A
Speakers 1 x Mini Stereo Jack (Green)
Mic. 1 x Mini Stereo Jack (Pink)
VGA Input 1 x HDB-15 Male (Blue)
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack (Black)
Switches Operating Mode Selection 1 x Pushbutton
Wakeup PC N/A 1 x Pushbutton
Video Output Port
Selection
N/A 1 x Slide Switch
Video Gain Tuner N/A 1 x Knob
Video
Compensation
Tuner
N/A 1 x Knob
RGB Tuner N/A 3 x Knob
LEDs Local 1 (Green) N/A
Remote 1 (Green)
Link N/A 1 (Green)
Emulation Keyboard / Mouse USB
Video 1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz (300 m)
Power Consumption DC5.3V/4.38 W DC5.3V/10.27 W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.69 kg 0.69 kg
Dimensions
(L x W x H)
20.00×7.62×4.20cm 20.00×7.62×4.20cm

  • 1x CE775L USB KVM Extender (Local Unit)
  • 1x CE775R USB KVM Extender (Remote Unit)
  • 1x VGA Cable
  • 1x USB KVM Cable Set
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions
