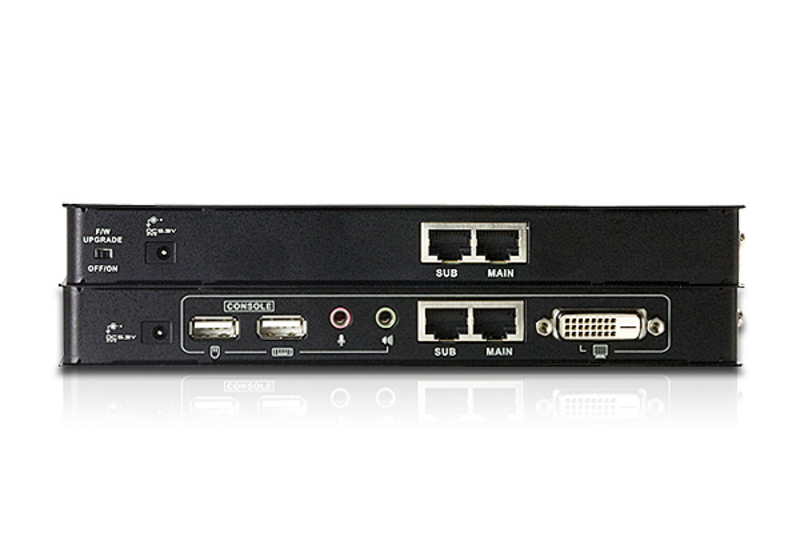

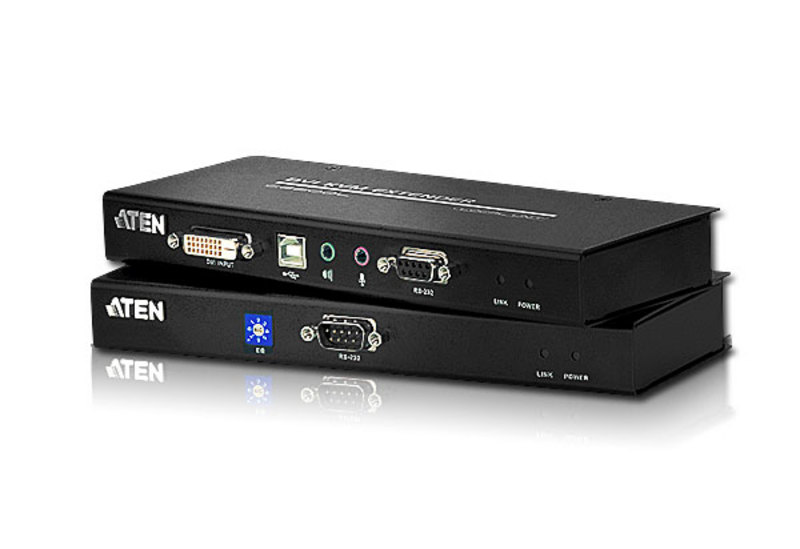

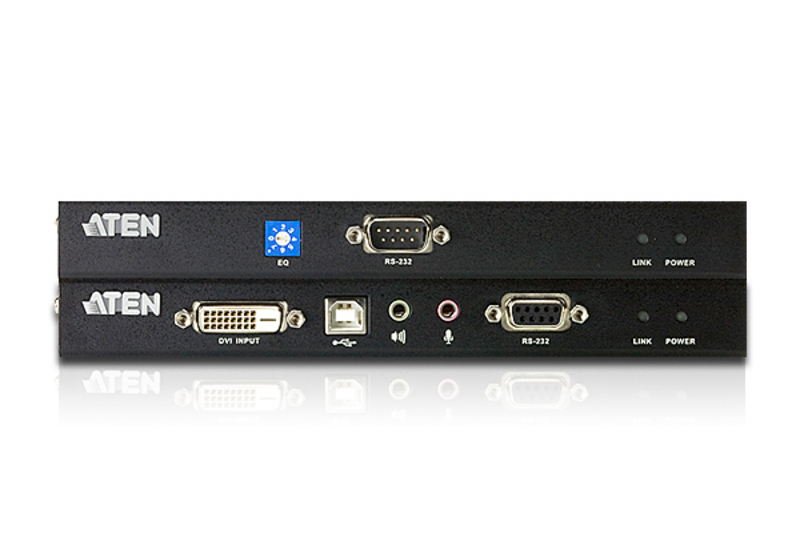

Aten CE602 USB and DVI Dual Link up to 60m KVM extender over two CAT5e cables supports DVI-D interface and allows transmission of DVI Dual Link signals, features manual compensation control to adjust signal strength in order to compensate for distance and RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps). It is audio enabled to support stereo speakers and microphone and can support up to 2560 x 1600 (DVI Dual Link) resolution.
The CE602 is a DVI Dual Link and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE602 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.
The CE602 can support up to 2560 x 1600 (DVI Dual Link) resolution. It uses two Cat 5e cables for HDCP, RS-232, microphone and dual link signals. You can also use just one Cat 5e cable if using single link connections.
