VE814A Aten HDMI HDBaseT Extender Single CAT5 with Dual Display

£579.00 inc VAT

Aten VE814A HDMI HDBaseT extender over a single CAT5 cable with Dual Display 4K up to 100m supports one local and two remote displays and one at a local side. The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.

Data Sheet

Manual

Description

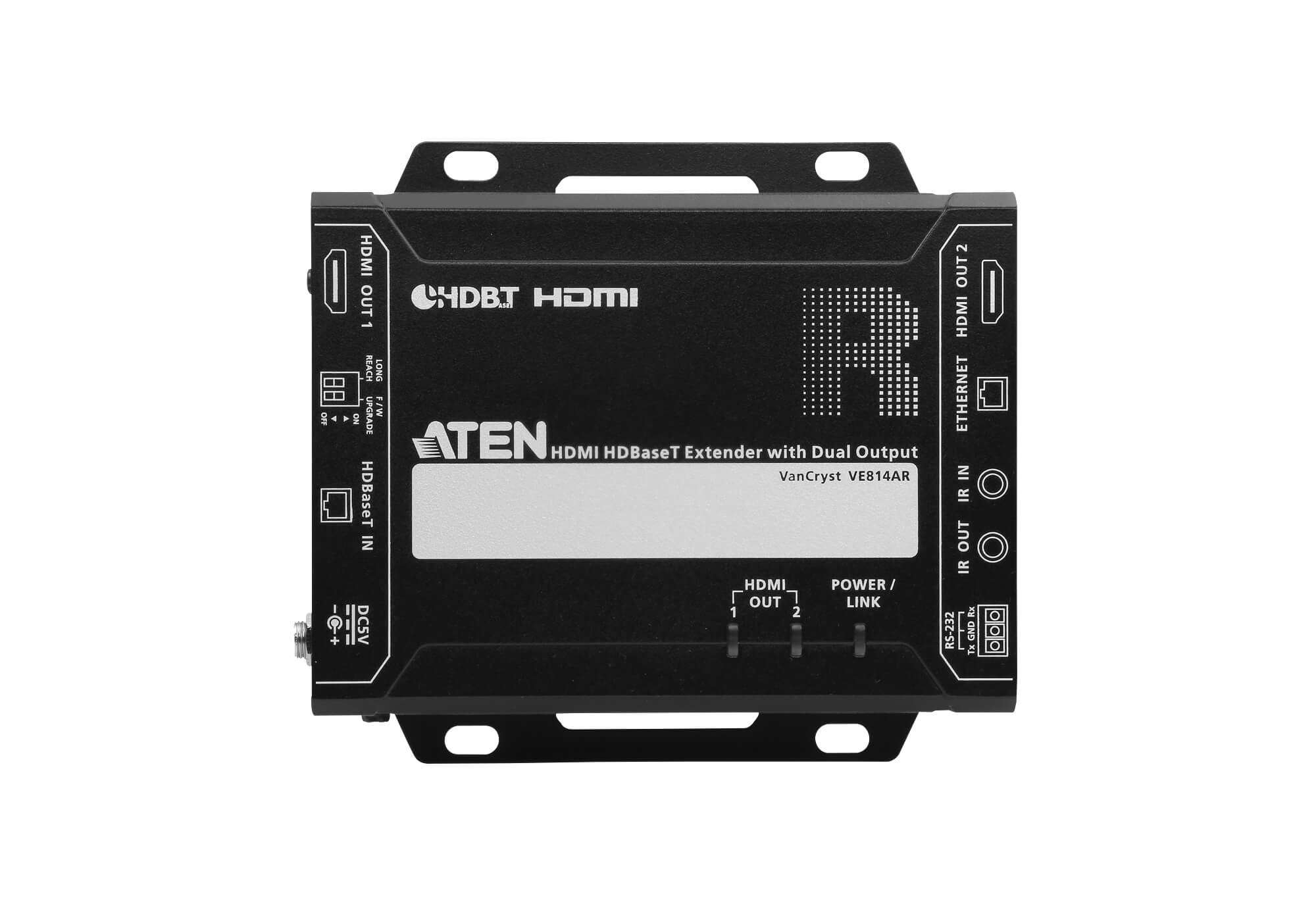

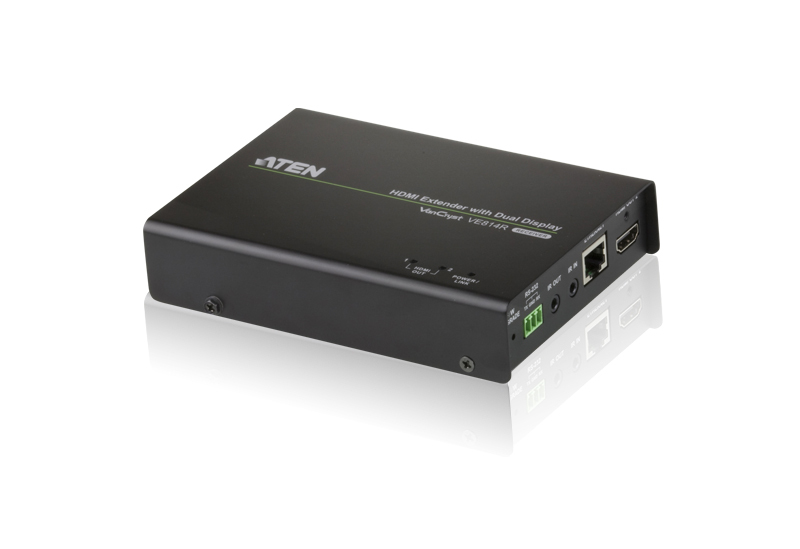

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.

The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

  • Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
  • Superior video quality:
    • 4K up to 100 m
    • 1080p up to 150 m when in HDBaseT Long Reach Mode
  • Extends Ethernet communication using the Ethernet pass-through port
  • Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
  • ATEN EDID Technology — when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
  • RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Supports wide screen format
  • Built-in 8 kV/15 kV ESD protection
  • Plug-and-play
  • Rack-mountable
Function VE814AR VE814AT
Video Input
Interfaces N/A 1 x HDMI Type A Female (Black)
Impedance N/A 100 Ώ
Max. Distance N/A 1.8 m
Video Output
Interfaces 2 x HDMI Type A Female (Black) 1 x HDMI Type A Female (Black)
Impedance 100 Ώ 100 Ώ
Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input N/A 1 x HDMI Type A Female (Black)
Output 2 x HDMI Type A Female (Black) 1 x HDMI Type A Female (Black)
Connectors

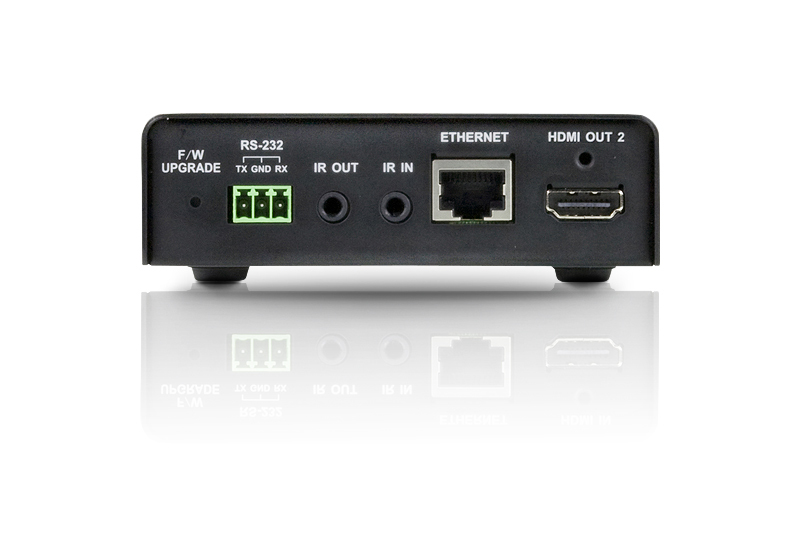

Unit To Unit 1 x RJ-45 Female 1 x RJ-45 Female
Power 1 x DC Jack (Black) with locking 1 x DC Jack (Black) with locking
Control
RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR 2 x Mini Stereo Jack Female (Black) 2 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female 1 x RJ-45 Female
Switches

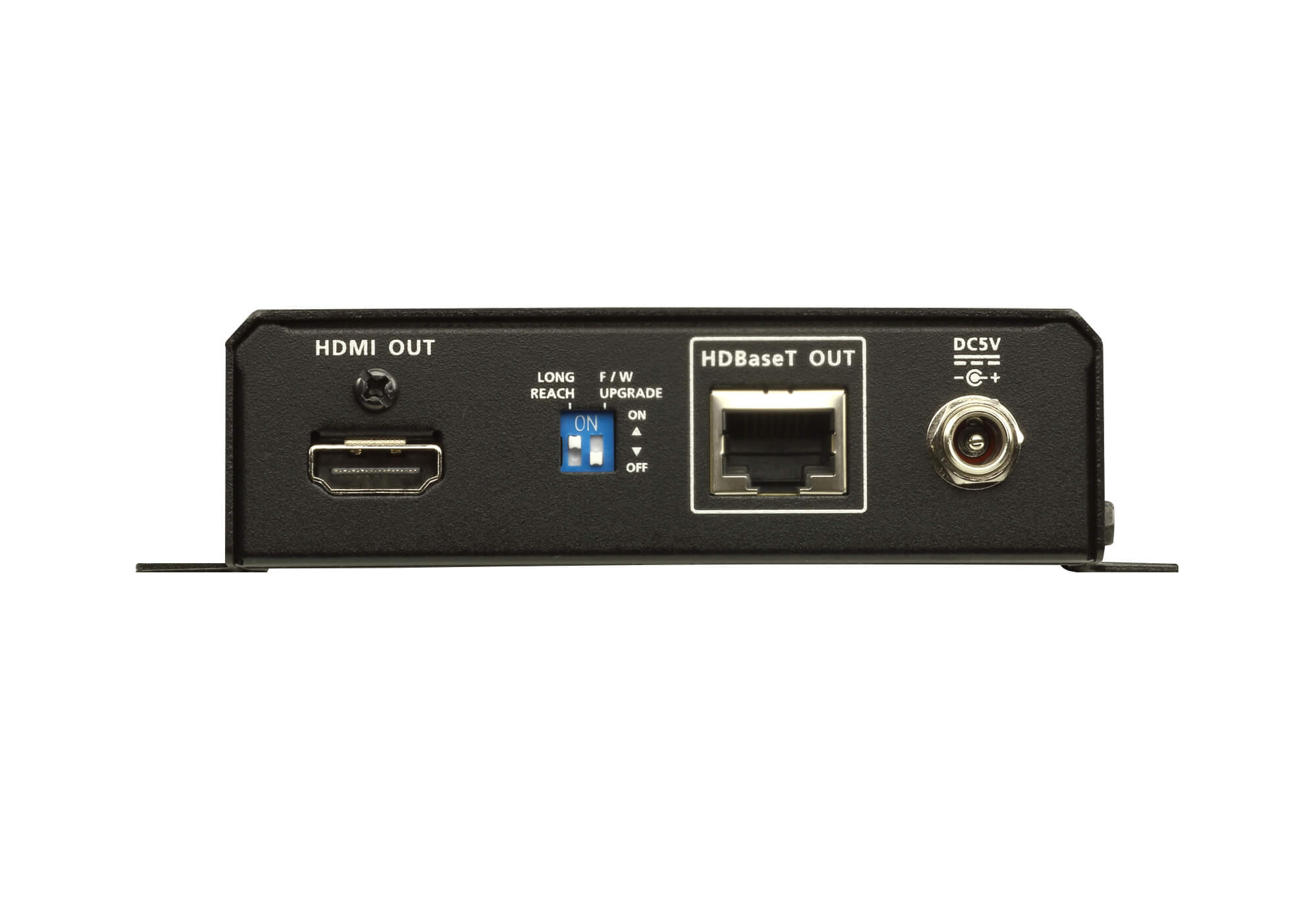

Long Reach Mode Switch 1 x Slide Switch – ON/OFF 1 x Slide Switch – ON/OFF
Firmware Upgrade 1 x Slide Switch – ON/OFF 1 x Slide Switch – ON/OFF
Power Consumption DC5V:5.09W:24 DC5V:7.87W:37
Environmental
Operating Temperature 0 – 40°C 0 – 40°C
Storage Temperature -20 – 60°C -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal Metal
Weight 0.47 kg ( 1.04 lb ) 0.45 kg ( 0.99 lb )
Dimensions (L x W x H) with bracket 14.02 x 12.30 x 3.00 cm
(5.52 x 4.84 x 1.18 in.)
14.02 x 12.30 x 3.00 cm
(5.52 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket 13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

  • 1x VE814AT Transmitter
  • 1x VE814AR Receiver
  • 1x IR Transmitter Cable
  • 1x IR Receiver Cable
  • 2x RS-232 Terminal Blocks
  • 2x Power Adapters
  • 1x User Instructions
