SY-HDBT-100-SLIM-R S Y Electronics Slimmest HDBaseT HDMI 100m 4K Receiver

S Y Electronics SY-HDBT-100-SLIM-R (Receiver Only) HDBaseT HDMI 4K with Bidirectional IR & RS232 can extend a signal up to 150m @ 1080p using a single CATx cable with HDCP support and HDMI 1.4 compatibility (4K data can be extended up to 70m).  It is the slimmest HDBaseT unit on the market and. It supports all HDMI resolutions up to 4K x 2K (including 1080p, 1080i, etc..) as well as 3D and CEC.

Manual

£259.00 inc VAT

Compare

The new S Y Electronics SY-HDBT-100-SLIM-SET HDBaseT HDMI 4K, RS232, IR and Power Over 100m of CAT6 cable (PoC) can happily claim to be the slimmest HDBasetT extender on the market.  It is beautifully made but without compromising the quality we are accustomed to from S Y Electronics. The pair (transmitter & receiver) weighs under 700 grams (320 g for the transmitter and 330 g for receiver) and measures 70 x 12 x 97mm. Both IR and RS232 are Bidirectional with Power on Cable allowing both the Transmitter and Receiver units to be powered using only one power supply. The extender offers the flexibility of being powered from either side. This maximum distance reduces to 40m for 4k HDMI signals. These extenders are suited to a wide range of applications in the AV industry, digital signage and at home.

SY-HDBT-100-SLIM-R Features

  • Extends 1080p HDMI and data up to 150m with HDCP support and HDMI 1.4 compatibility
  • Extends 4k HDMI and data up to 70m with HDCP support and HDMI 1.4 compatibility
  • Only one 48V DC power supply required (at the Transmitter or Receiver)
  • Provides transmission of IR and RS232 control signals over the same cable in both directions
  • Status indicators for Link, HDMI and HDCP
  • Supports all HDMI resolutions up to 4K x 2K (including: 1080p, 1080i, ……, 480p and 480i)
  • Supports 3D and CEC
  • 7,5W Power Consumption for the set
  • Weight (320 g Transmitter & 330 g Receiver)
  • Dimensions (W x H x D) 70 x 12 x 97mm

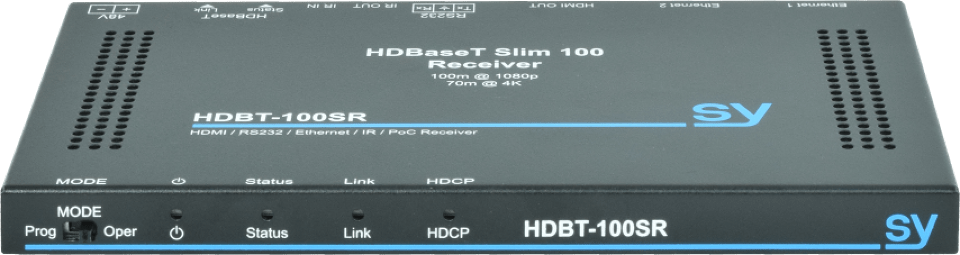

SY-HDBT-100-SLIM-R Receiver
Specifications General
HDMI Resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p, 1920 x 1200, 4K x 2K
HDMI Standard: HDMI 2.0 supported
HDMI Link Mode HDBT, synchronous switching
Link Transmission Distance: Up to 150 metres @ 1080p or 70m @ 4K with Power over Cable  PoC)
IR Control: 38kHz carrier frequency for any control protocol

RS232 Supports Tx and Rx only – any RS232 baud rate up to 115.2 Kb
Power Supply 48V DC @ 0.5A
Power Consumption:  SY-HDBT-100: 7.5 W max

Environmental
Operating Temperature 0 – 40 °C
Operating Humidity 5 – 90% RH (non-condensing)

Physical
Dimensions (W x H x D) 70 x 12 x 97 mm
Weight SY-HDBT-70ST: 320 g SY-HDBT-70SR: 330 g
