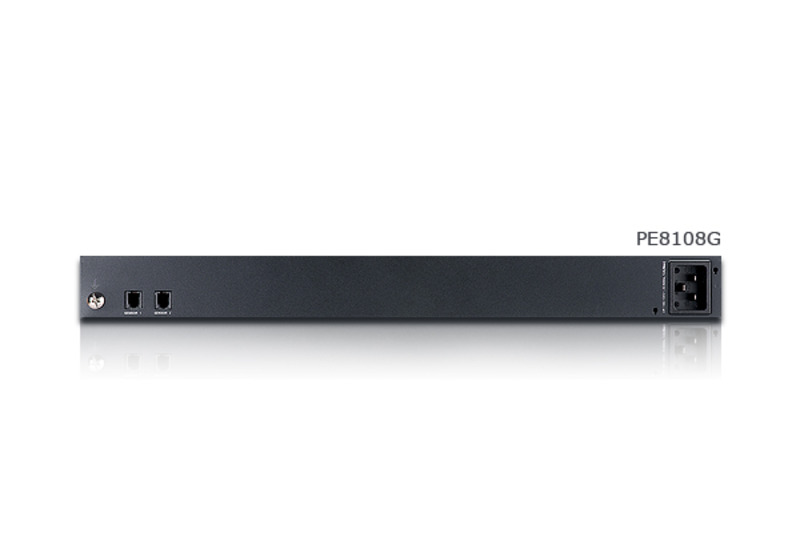

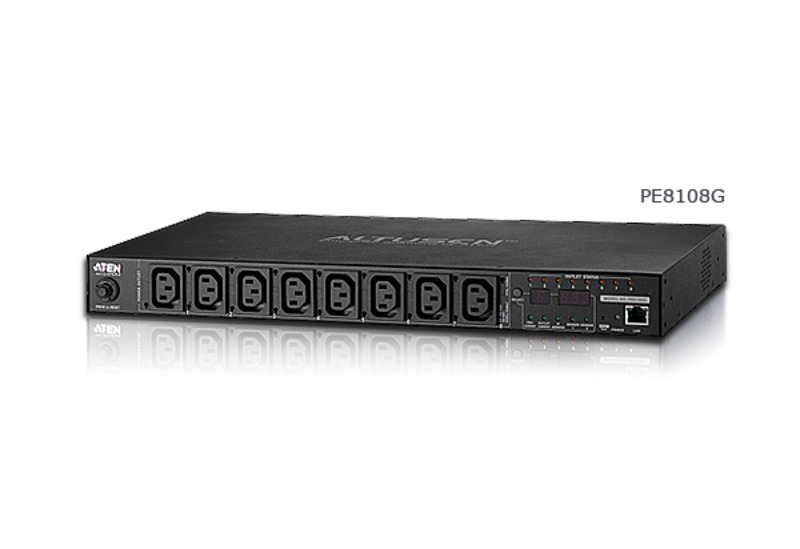

PE8108G Aten 1U 16A 8 Outlets eco PDU

£455.10 inc VAT

Aten PE8108G 8 Outlets eco PDU allows you to control and monitor the power status of devices attached to the PDUs at outlet level from practically any location via a TCP/IP connection. It features space saving 1U rack mount design with rear mounting, power-on sequencing  where users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order, and LED indicators for current and IP address at Outlet levels. It offers two-level password securit with strong security features that include password protection and advanced encryption technologies – 128 bit SSL  Input is 1 x IEC 320 C20 and 8 x IEC 320 C13 outlets.

Data Sheet

Description

The PE8108G eco PDU is intelligent PDU that contains 8 AC outlets and is available in IEC socket configuration. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center’s health environment via sensors*.

The PE8108G eco PDU offers remote power control combined with real-time power measurement – allowing you to control and monitor the power status of devices attached to the PDU at outlet level from practically any location via a TCP/IP connection.

The PE8108G eco PDU supports any 3rd party v3 SNMP Manager Software and The eco Sensors (Energy Management Software). The eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With the eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.

With its advanced security features and ease of operation, the PE8108G eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

*Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.

Power Distribution

  • Space saving 1U rack mount design with rear mounting
  • IEC or NEMA outlet models
  • 3 digit 7-segment front panel LED shows Current / IP Address
  • Remote users can monitor outlet status via web pages on their browsers

Safe shutdown support

  • Separate power for the unit’s own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices’ circuit breaker

Remote Access

  • Remote power control via TCP/IP and a built in 10/100 Ethernet port
  • Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
  • eco PDU Power Management software – eco Sensors
  • Supports SNMP Manager V3

Operation

  • Remote power outlet control (On, Off, Power Cycle) by individual outlets
  • Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
  • Easy setup and operation via a browser-based user interface
  • Multibrowser support (IE, Firefox, Chrome, Safari)
  • RTC support to keep the timer running during times of no power.
  • Supports up to 8 user and 1 administrator accounts

Management

  • Power status measurement at the PDU or Outlet level
  • LED indicators for current and IP address at Outlet levels
  • Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level (PE8108 / PE8208)
  • Current and voltage threshold setting
  • Naming support for outlets
  • User outlet access assignment on an outlet-by-outlet basis.
  • Event logging and syslog support
  • Upgradeable firmware
  • Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian

Security

  • Two-level password security
  • Strong security features include password protection and advanced encryption technologies – 128 bit SSL
  • Remote authentication support: RADIUS

eco Sensors Energy Management Software

  • Automatic discovery of all PE devices within the same intranet
  • Remote real-time power measurement and monitoring
  • Remote real-time power outlet management*
  • Remote real-time environment sensor monitoring
  • Plotting/Monitoring of all PE devices
  • Exceed threshold alert through SMTP and Syslog
  • Power Analysis Report
Function PE8108G
Power Outlets Direct 8
Connectors Power
Inlets
1 x IEC 320 C20
Power
Outlets
NEMA NA
IEC 8 x IEC 320 C13
Sensor 2 x RJ-11
LAN 1 x RJ-45 (F)
LEDs Outlet Status 8 (Orange)
Outlet / IP 1-digit 7-segment (Orange)
PDU Current / Outlet Current / IP 3 (Green)
Current / IP 3-digit 7-segment (Orange)
Power 1 (Blue)
10/100 Mbps 1 (Orange / Green)
Link 1 (Green)
Sensor 2 (Green)
Switches Reset 1 x Semi-recessed Pushbutton
Power 1 x Non-fuse Breaker
I/P Rating 100–240V~; 50/60Hz; 10A
Load Capacity 2400W
O/P Rating Per Port 100-240V; 50/60Hz, 10A
Total 100-240V~; 50/60Hz, 10A
Environment Operating Temp. 0 – 50°C
Storage Temp. -20 – 60°C
Humidity 0-80% RH Non-condensing
Physical Properties Power Cord Length 3 m
Housing Metal
Weight 2.87 kg
Dimensions
( L x W x H )
43.24 x 21.93 x 4.40 cm
  • 1x PE8108 Power Distribution Unit
  • 1x Power Cord
  • 1x Rack Mount Kit
  • 1x Software CD
  • 1x User Instructions
