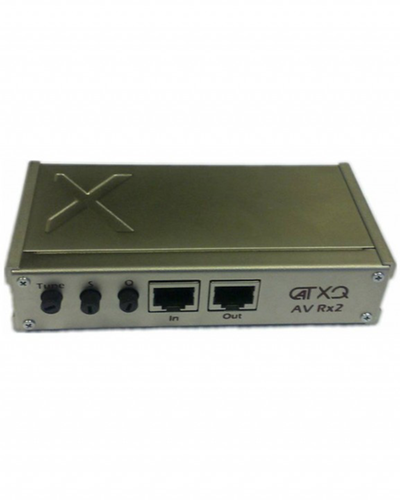

CX-0S-QAV-R2 S Y Electronics 2-Way VGA and Audio Receiver with Skew

The CatXQ AV Rx2 outputs two high quality videos to any two VGA video displays up to a continuous cable distance of 300m.

Description

The CatXQ AV Rx2 outputs two high quality videos to any two VGA video displays up to a continuous cable distance of 300m.

The CatXQ AV Rx2 outputs two high quality videos to any two VGA video displays up to a continuous cable distance of 300m.

This product also incorporates XSQ™ technology that will eliminate the cable skew effect, especially over longer distances of UTP cable. CatXQ AV Rx2 can receive audio and video, or video only, up to 300m. The maximum resolution of this CatXQ receiver is dependent on the length of UTP cable – see Resolution vs distance below.

Each CatXQ AV Rx2 has a UTP output for daisy chaining to another receiver in the CatX AVP Range or the CatX Mini Range. Multiple receivers can connect in this way for distances up to 2,000m. The distance between each CatXQ AV Rx2 receiver is dependent on the receiver, but the total span can be up to 4,000m (2 x 2,000 m) when using CatX AVP Tx2/4/8 units as the source transmitter.

An external 5V DC power supply is required for the CatXQ AV Rx2, which consumes about 2W.

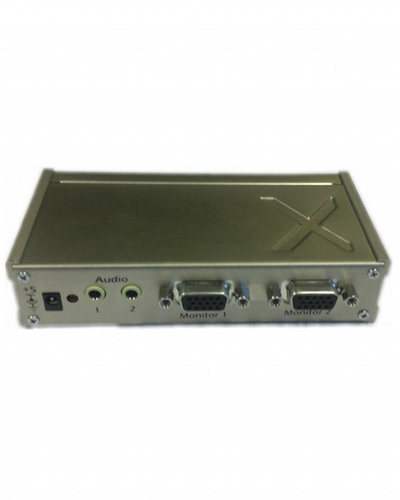

  • Outputs : 2x HD15 female, 1x 3.5mm stereo audio jack, RJ45 connector
  • Inputs : 1x RJ45 connector, 1x 5V 1.3mm DC socket
  • Control : distance control to optimise display quality up to 300m
  • Video levels : RGB: 0.7V into 75R, HV: TTL compatible
  • Video format : VGA – UXGA compatible 1080p compatible, RGBHV, RGSB, YUV, Y/C, and CVBS formats supported. Separate or composite HV; Horizontal 15-135kHz; Vertical 25-150Hz
  • Resolution vs distance : 1024×768 or 1280×1024 (PC) / 1280x720p or 1368x768p (HDTV) at 300m; 1600×1200 (PC) / 1920x1080p (HDTV) at 220m; 2048×1536 (PC) at 100m
  • Dimensions 120mm [W] x 60mm [D] x 28mm [H]
  • Net Weight 255g
  • Gross Weight 300g.

Warranty

2 years parts and labour.
