CV211CP Aten Laptop USB Console Adapter IT Kit

Aten CV211CP Kit includes a Portable Console Crash Cart Adapter (CV211, see more product details in the following paragraphs), a DisplayPort to VGA adapter (VC925), and an HDMI to VGA adapter (VC810). It is a USB Console Adapter for direct laptop-to-computer remote access and provides bi-directional file transfer between the laptop and target computer. The CV211 supports analogue video resolution up to 1920 x 1200 @60Hz. Virtual media enables file applications, OS patching, software installation and diagnostic testing. Video recording and image capture feature saves a record of remote operations for future training and troubleshooting. BIOS level access – gets you into a server’s BIOS during hardware and operating system failures.

Data Sheet

Manual





£299.80 inc VAT

Compare

The Laptop USB KVM Console Crash Cart Adapter IT Kit is highly recommended for on-the-go IT professionals who need connection flexibility and high mobility. This IT Kit provides an all-in-one solution that ensures compatibility with most major types of video interface, such as DisplayPort, HDMI, and VGA, saving the cost and inconvenience of purchasing separate video adapters.

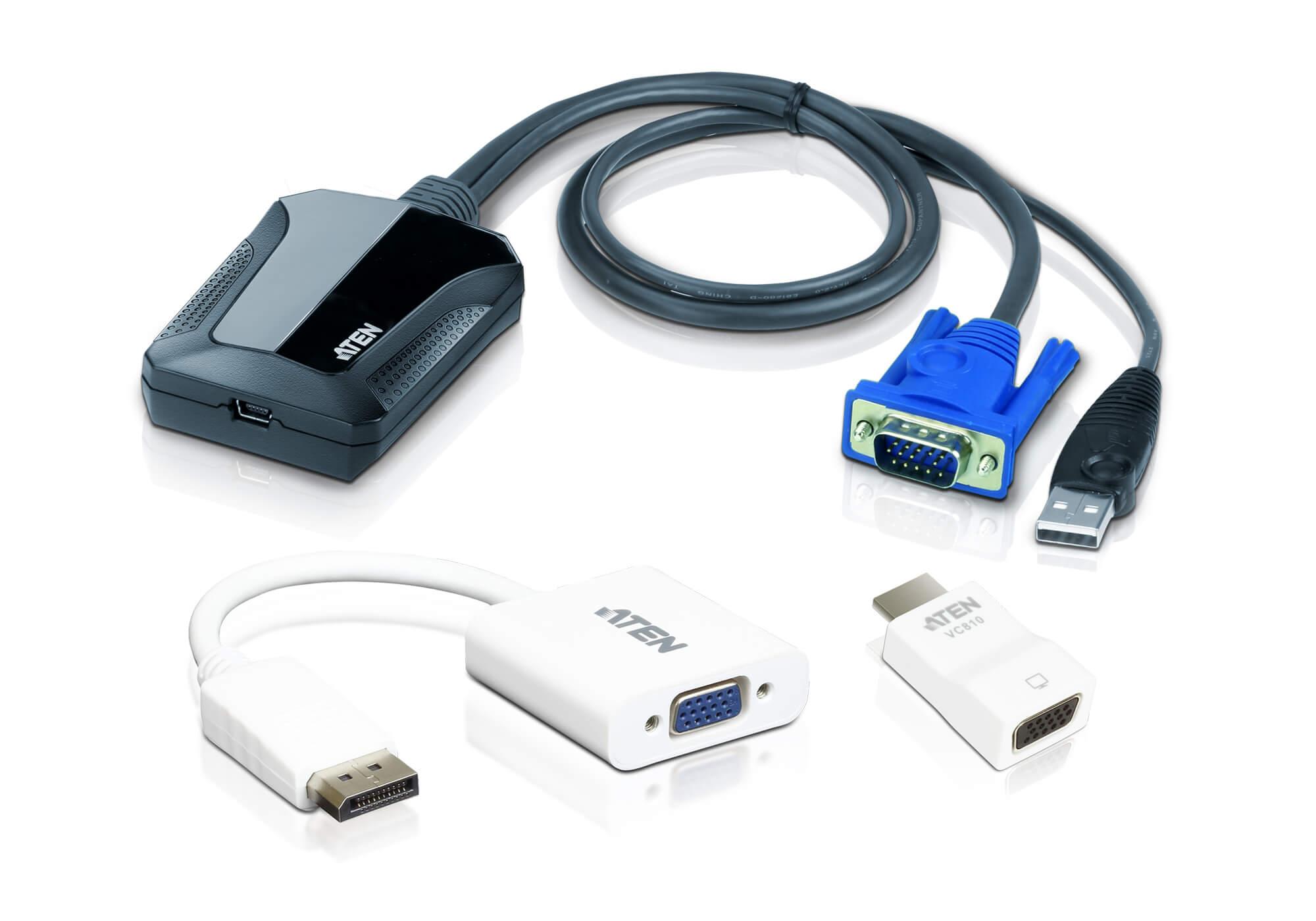

The Kit includes a Portable Console Crash Cart Adapter (CV211, see more product details in the following paragraphs), a DisplayPort to VGA adapter (VC925), and an HDMI to VGA adapter (VC810). Please refer to VC925 and VC810 product pages for more information.

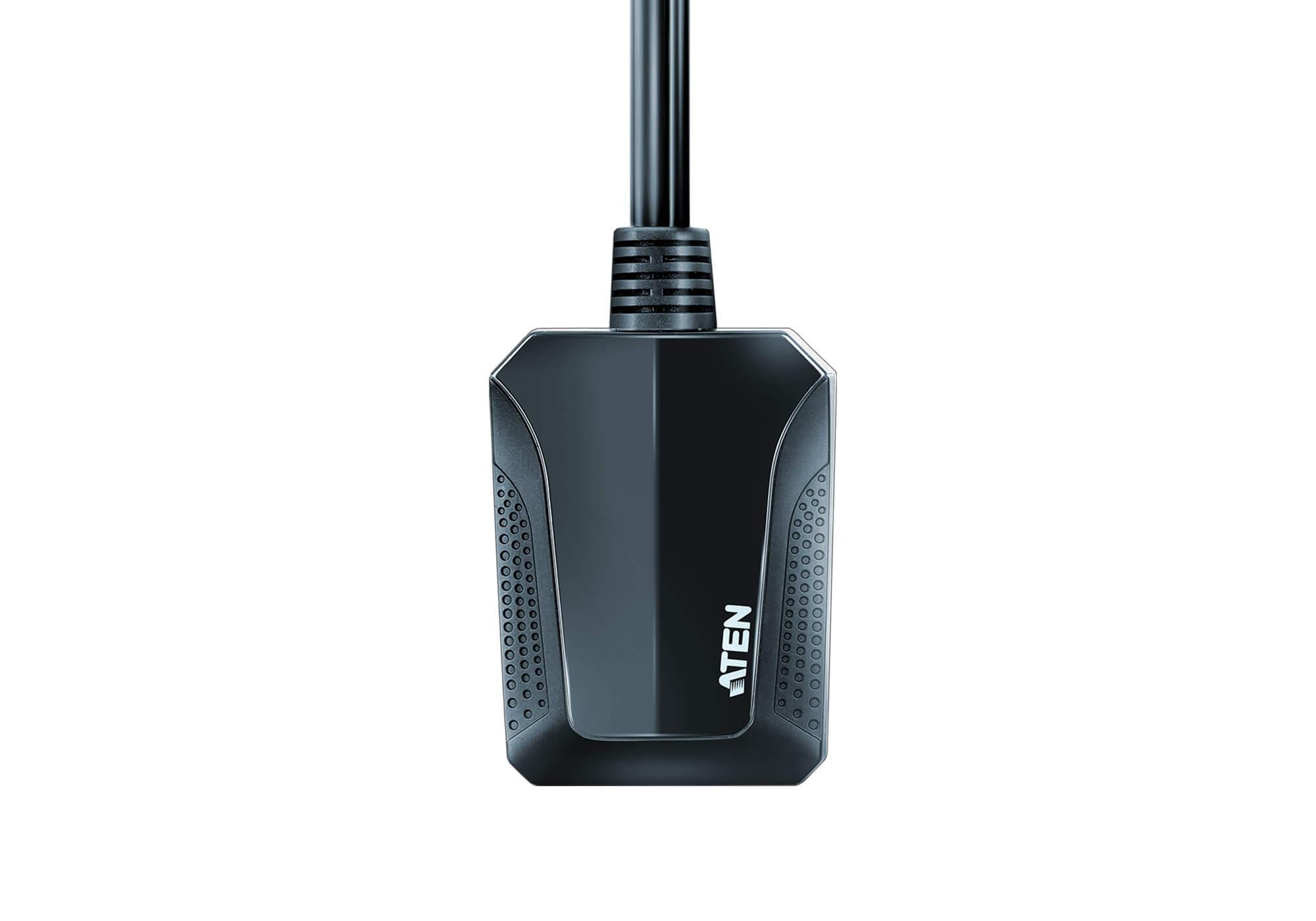

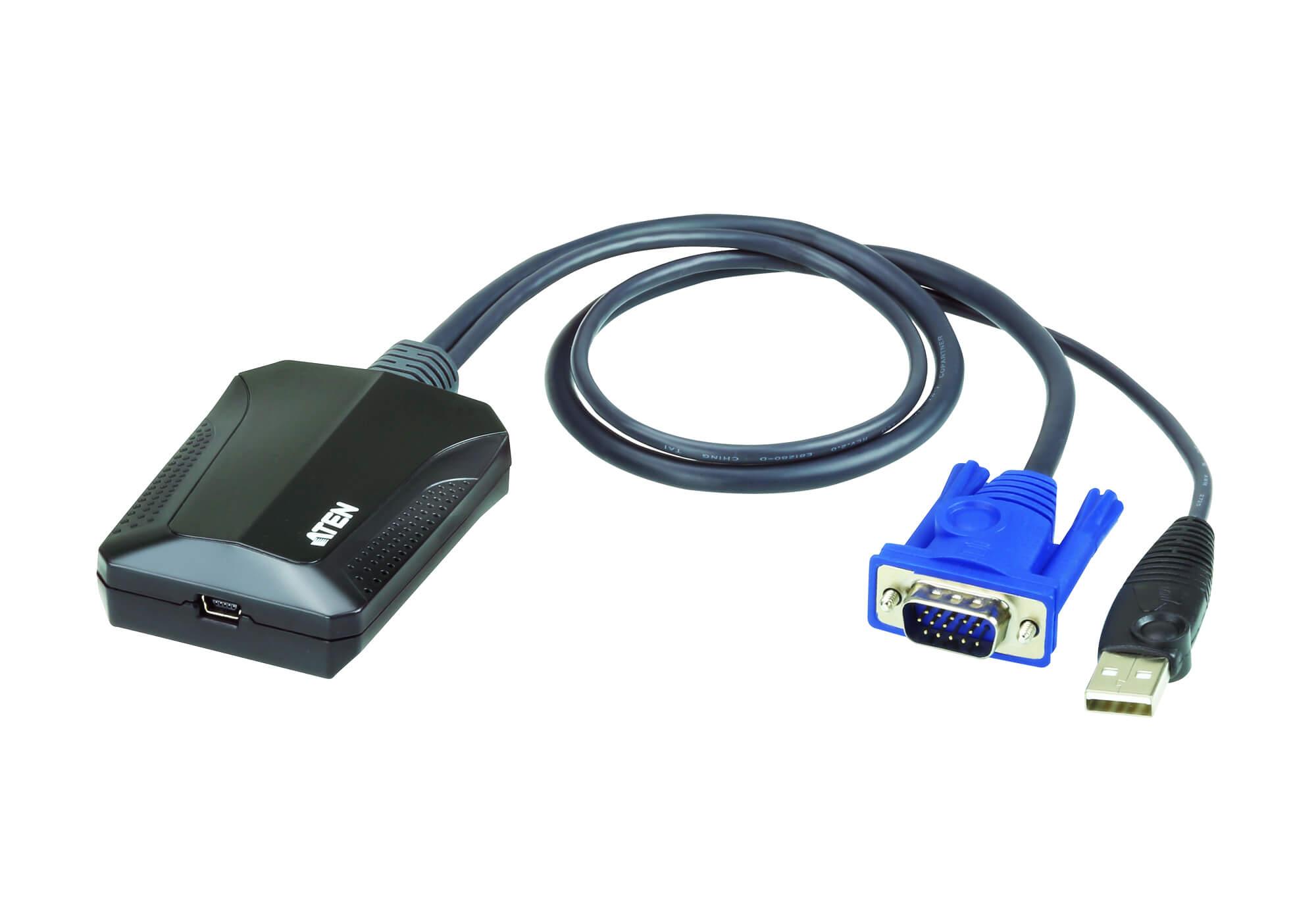

The CV211 Laptop USB KVM Console Crash Cart Adapter provides a direct Laptop-to-Computer connection to servers, computers, kiosks and ATMs. It eliminates the need for heavy crash carts while offering BIOS-level access, bi-directional file transfers, hotkey macros, video recording and screenshots through a USB 2.0 and VGA composite cable.

The innovative virtual media function provides file applications, OS patching, diagnostic testing and software installations through the CV211’s intuitive graphical user interface (GUI) which provides easy operation and fast remote access. The GUI console window can be adjusted to the exact size and resolution of the remote computer’s desktop by resizing the pane automatically, or you can manually adjust the window size as you see fit. This allows you to view the target computer’s entire desktop without needing to use a scroll bar.

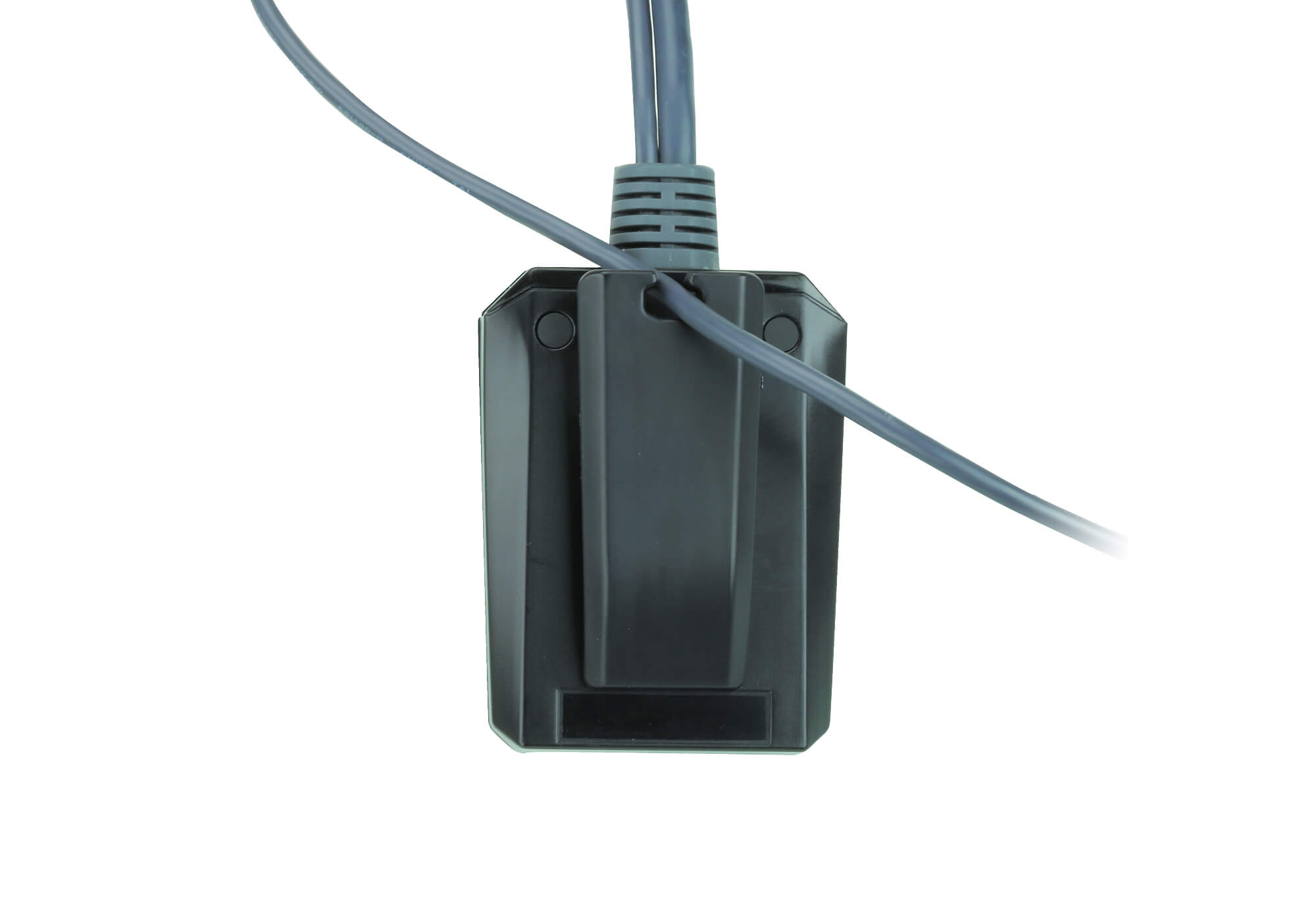

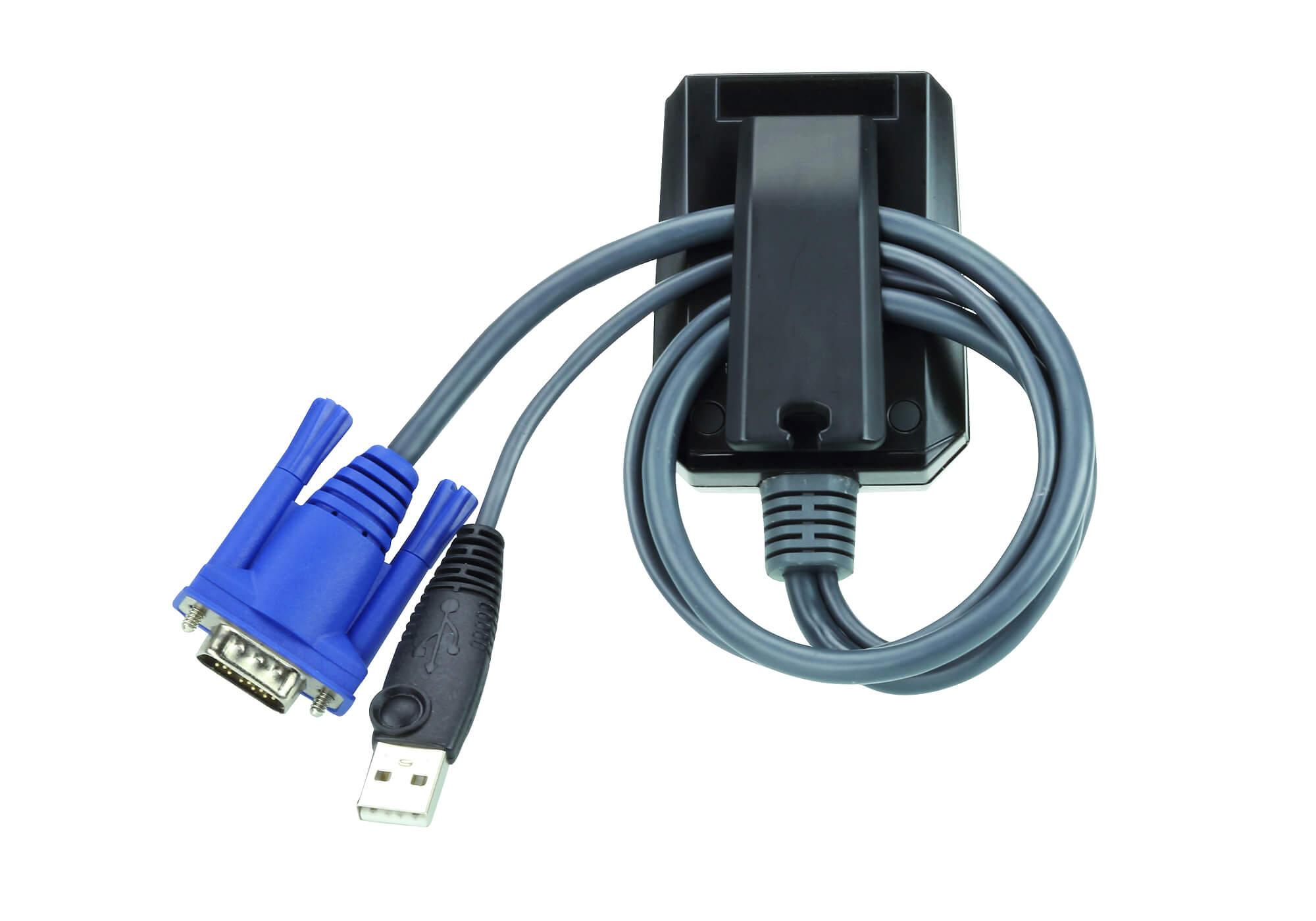

In addition, the unique cable clip design is utilized for easy tidying of disorganized cables while the CV211 is being used and transported. The CV211 is the perfect crash cart replacement to troubleshoot systems that are difficult to reach or where internet access is not available or permitted.

  • USB Console Adapter for direct Laptop-to-Computer remote access
  • Bi-directional file transfers between the laptop and target computer
  • Supports analogue video resolutions up to 1920 x 1200 @ 60 Hz
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • Video recording and image capture feature saves a record of remote operations for future training and troubleshooting
  • BIOS level access – gets you into a server’s BIOS during hardware and operating system failures
  • Mouse DynaSync™ – automatically synchronizes the laptop and target computer’s mouse movements
  • On-screen keyboard with multi-language support
  • Supports hotkey macros – define keystrokes that execute specific actions on the target computer to complete tasks efficiently and accurately
  • Toolbar helps users easily operate all the functions from a single-click control panel within the remote view window
  • Desktop scaling – user can adjust the size/resolution of the Remote desktop window by size or ratio
  • Supports hot-plugging
  • Plug-and-Play – no software installation required
  • Firmware upgradable
  • Unique cable clip design to get cables under control
Function CV211
Computer Connections 1
Connectors
Laptop USB Console (LUC) Port 1 x USB Mini Type B Female
KVM (Computer) Ports 1 x USB Type A Male
1 x VGA Male (Blue)
LEDs 1 (Blue)
Power Consumption DC5V:2.35W:11BTU
Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight TBD
Dimensions (L x W x H) TBD
Other Included Adapters A DisplayPort to VGA adapter (VC925)
An HDMI to VGA adapter (VC810)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
  • 1 x CV211 Laptop USB KVM Console Crash Cart Adapter
  • 1x VC925 DisplayPort to VGA Adapter
  • 1x VC810 HDMI to VGA Adapter
  • 1 x USB Type A to USB Mini-B Cable
  • 1 x User Instructions
