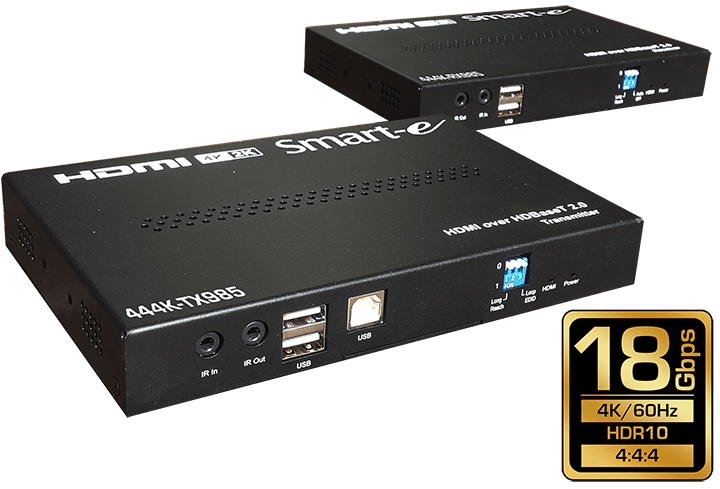

The 444K-985-USB is a HDBaseT KVM extender pair capable of distributing HDMI, HDR10 signals up to 4K UHD resolutions to 100m of Cat 5e-6 cable. By implementing the complete 5-Play of the HDBaseT2 specification the extender pairs also provides the pass through of wide band bi-directional InfraRed signals, full duplex RS232 up to 115Kbaud and stereo audio. USB 2.0 extension is achieved by harnessing the internal 100BaseT Ethernet link within the HDBaseT protocol.

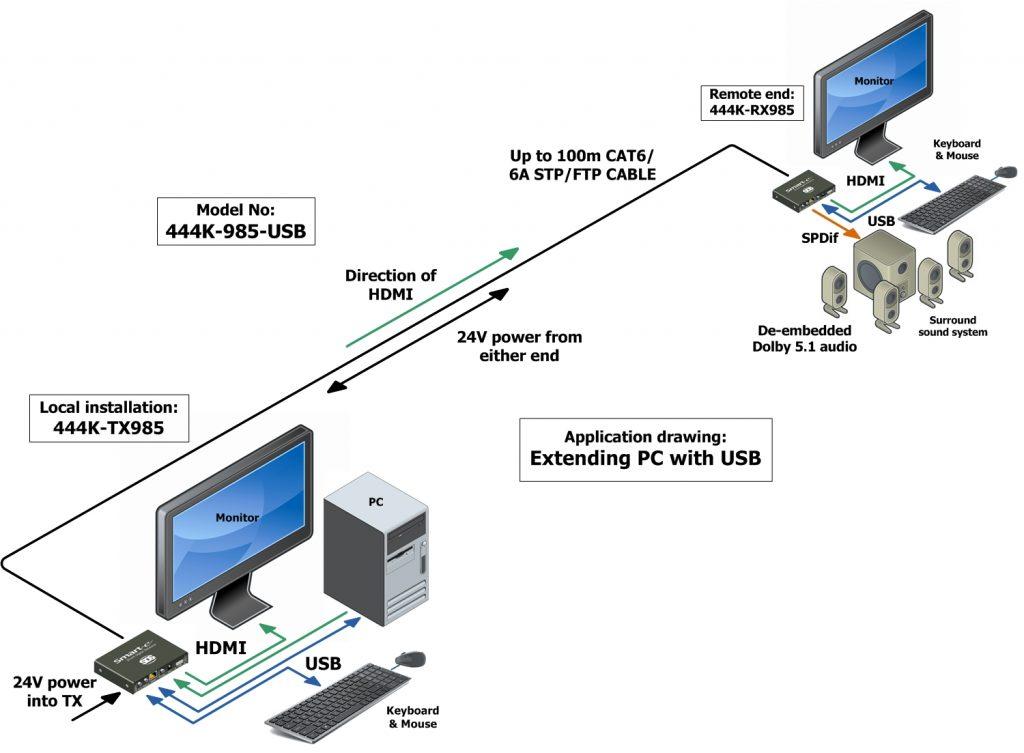

A looping HDMI input together with a USB hub on the transmitter 4K-TX985-USB unit allow for a local PC to be connected. EDID can be read locally or from the remote display through the Cat 6A cable selectable. An extended option available on the HDBaseT chip set allows for 150m metre transmission for HDMI resolutions up to 1080p.
Each unit of the 444K-985-USB is powered via a 24V PSU which can also power the other remote device through the same cable.
The Smart-e 444K-985-USB is a flexible and comprehensive professional USB 2/0 KVM extender with CAT 6 distribution system for commercial, education and residential use.
