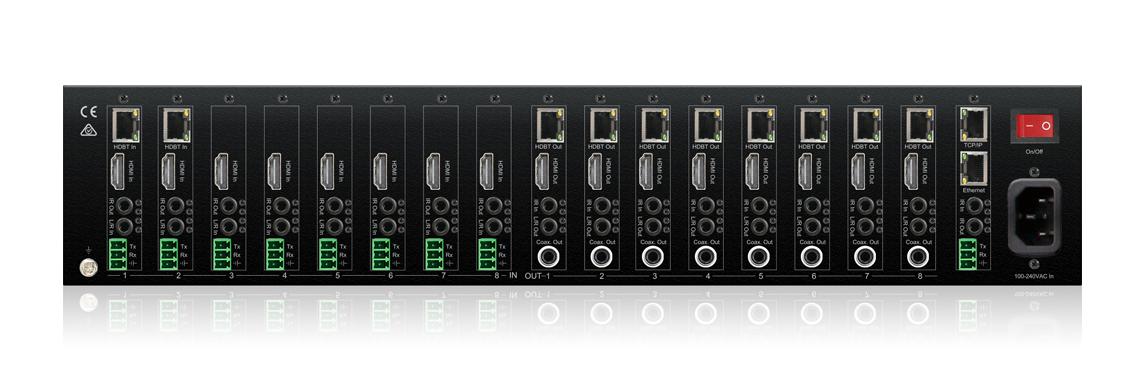

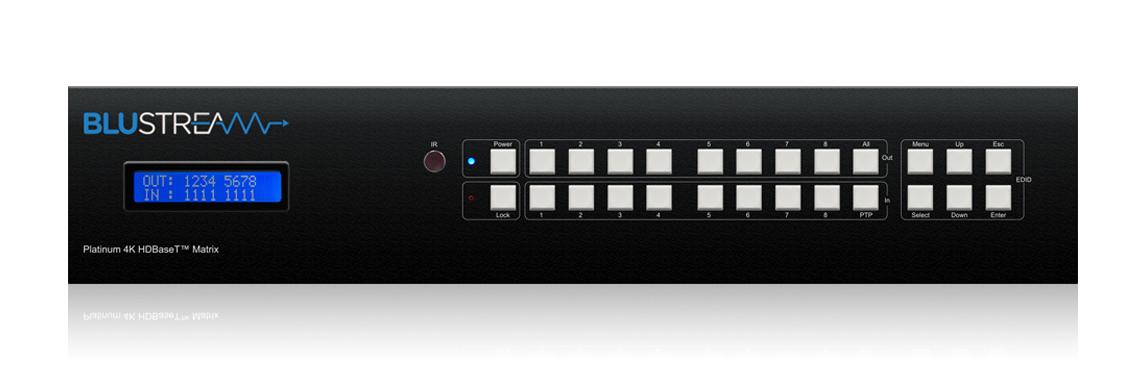

Blustream PLA88ARC 8×8 HDBaseT ARC Enabled Matrix features 8x HDMI inputs which can be independently routed to 8x HDBaseT™ outputs, simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone, inputs 1 & 2 support Dual HDBaseT™ & HDMI to enable integration of remote HDMI sources up to 100m distance (4K up to 70m) and up to 16×16 Audio Matrix independently controllable from video. The PLA88L-V2 extends HDMI up to distance of 100m @ 1080P over single CAT cable, supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0) and all industry standard video resolutions including VGA-WUXGA and 480i-4K.
The Blustream PLA88ARC Platinum 8×8 HDBaseT™ Matrix delivers a range of industry leading features. The PLA88ARC is a 4K 8×8 matrix, transmitting HDMI, Bi-directional IR, RS-232 and PoH (PoE) up to lengths of 100m over a single CAT cable.
The PLA88ARC matrix also provides advanced features including independent audio matrix, simultaneous HDBaseT™ & HDMI outputs, two HDBaseT inputs and HDMI audio breakout and audio de-embedding. The PLA88ARC matrix is a HDBaseT™ class A product and includes additional features such as ARC (audio return channel) and LAN serving via HDBaseT™ over single CAT cable.

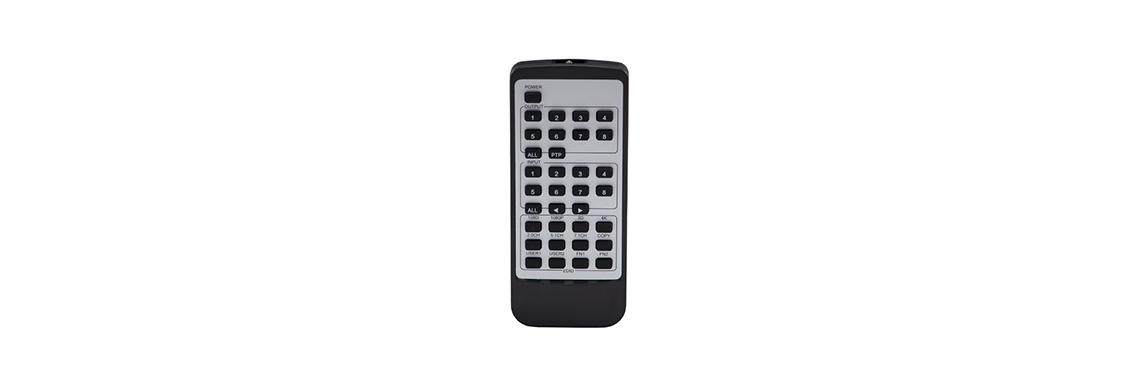

The PLA88ARC matrix can be fully controlled via TCP/IP, RS-232, IR or using the Blustream Software, allowing the user to define audio routing and conversion, designate EDID presets and lip sync control.
