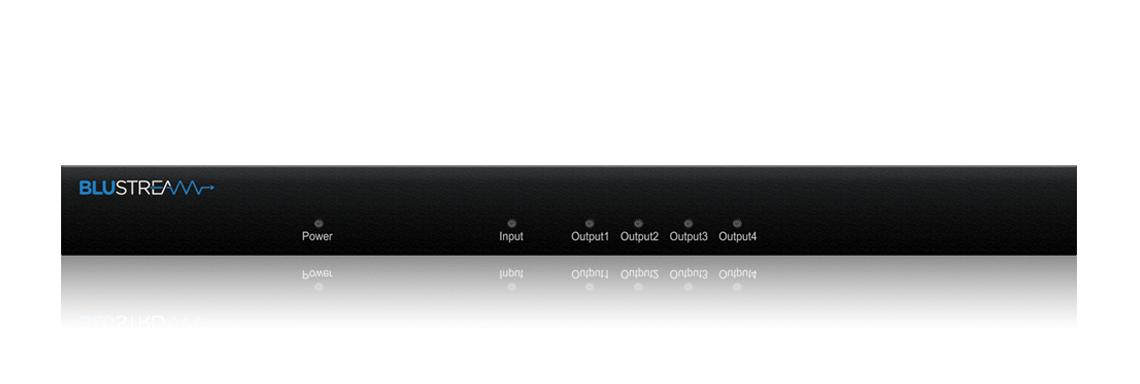

HSP14AB Blustream 4K HDBaseT 4-Way Splitter with Audio Breakout

• Features 1x HDMI input that is replicated to 4x HDBaseT™ outputs
• Features HDMI loop out for integration local displays and cascading to multiple devices
• Extends HDMI up to distance of 70m over single CAT cable
• Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio input de-embedded to both analogue L/R audio and Coaxial digital outputs concurrently

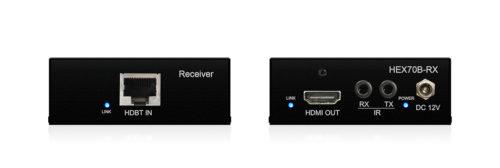

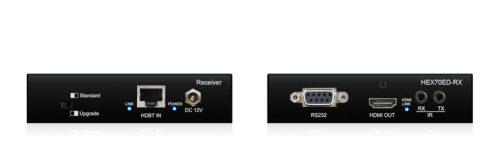

• Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers (HEX70B-RX, or HEX70ED-RX)
• HDCP compliant

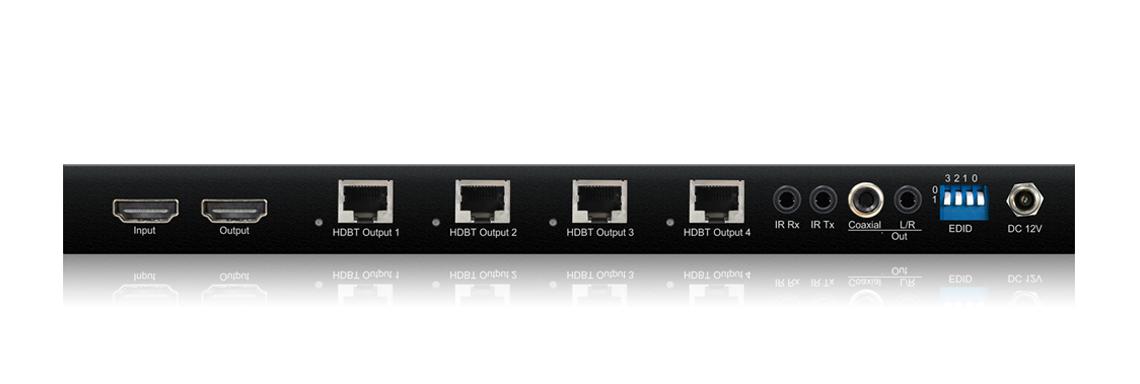

• Video Input Connectors: 1x HDMI Type A, 19-pin, female
• Video Output Connectors: 4x HDBaseT™ RJ45
• Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)
• EDID: 4-pin DIP switch
• IR Input Ports: 1x 3.5mm stereo jack
• IR Output Ports: 1x 3.5mm mono jack
• Mounting kit included
• Product Dimensions (WxDxH): 265 x 150 x 35mm (with connections)
• Product Dimensions (WxDxH): 265 x 145 x 25mm (without connections)
• Product Weight: 0.8kg (excluding accessories)
• Carton / Box Dimensions (WxDxH): 340 x 200 x 120mm
• Shipping Weight: 2.1kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 12V / 5A DC, screw type connector
• Compatible with (HDBaseT™ receivers): HEX70B-RX, HEX70ED-RX, or RX70AMP

1x HSP14AB
1x 12V / 5A DC power supply
1x IR emitter
1x IR receiver
1x Mounting kit
1x User manual
