HEX70EDKIT-V2 Blustream HDBaseT 70m 4K RS232 Extender Set

Out of stock

Blustream HEX70EDKIT-V2 4K HDBaseT extender set extends an HDMI signal up to 70m over a single CAT cable. It supports RS232 pass-through, 3D signal, bi-directional IR from all input and output locations and all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission. It is HDCP 2.2 Compliant, supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K@50/60Hz 4:2:0) and all industry standard video resolutions including VGA-WUXGA and 480i-4K.

Manual

SKU: HEX70EDKIT-V2 Categories: Air Traffic Control, AV Extenders and Splitters, Blustream, Blustream 70m HDBaseT Extender, Broadcast, Digital Signage Extenders, Government and Medical, HDBaseT, HDBaseT Extenders, HDMI Extender, RS232 Over CAT5 Extender Tags: 3D, 4K, hdbaset, HDCP Compliant, HDMI Over CATx Extender, IR Support, PoE, POH, rs232

Description

Description

Blustream HEX70EDKIT-V2 4K HDBaseT™ extender set offers market leading features and outstanding value. The product supports HDMI, RS-232, Bi-directional IR and Bi-directional PoH (PoE) up to lengths of 70m.

Extends HDMI up to distances of 70m over single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports 3D signal display
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports bi-directional RS-232 pass through
Supports bi-directional IR from all input and output locations
Supplied with Blustream IR receiver and emitter
Advanced EDID management
HDCP compliant

Video Input

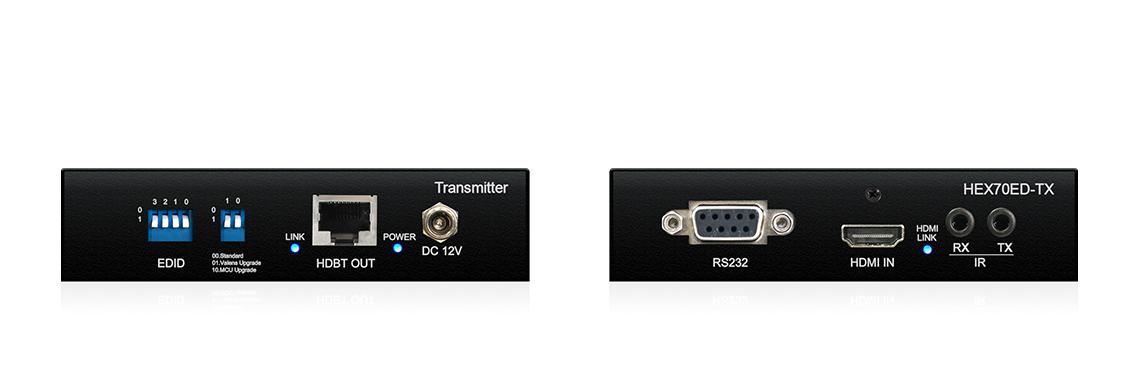

- HEX70ED-TX: 1x HDMI Type A, 19-pin, female

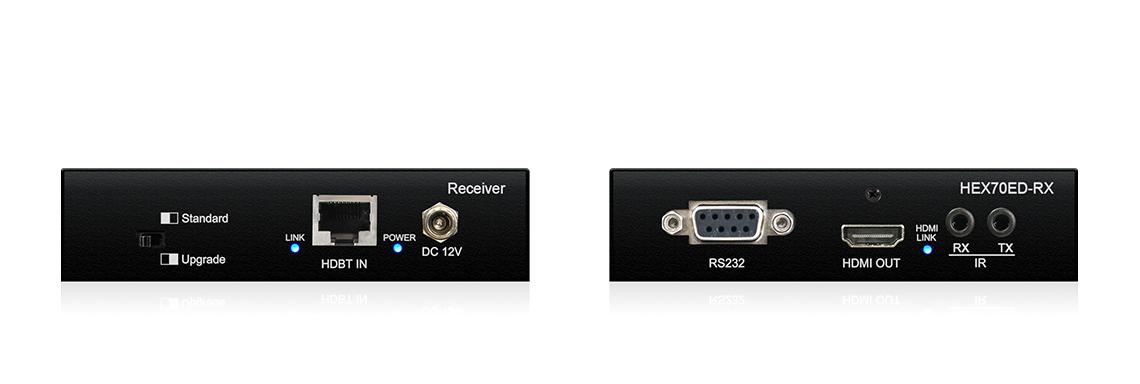

- HEX70ED-RX: 1x HDBaseT™ RJ45
Video Output
- HEX70ED-TX: 1x HDBaseT™ RJ45
- HEX70ED-RX: 1x HDMI Type A, 19-pin, female
IR Input Ports: 2x 3.5mm stereo jack
IR Output Ports: 2x 3.5mm mono jack
RS-232 Control: 2x DB9, female
Power Supply: 12V / 2A DC, screw type connector
Power Consumption: 9.5W
Balun Dimensions (WxDxH): 110 x 115 x 26mm (with connections)
Balun Dimensions (WxDxH): 110 x 110 x 26mm (without connections)
Ind. Balun Weight: 0.35kg (excluding accessories)
Carton / Box Dimensions (WxDxH): 295 x 155 x 80mm
Shipping Weight: 1.1kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Mounting kit included
