HEX100ARC-KIT-V2 Blustream HDBaseT 4K 100m HDCP 2.2 Extender Set

Out of stock

Blustream HEX100ARC-KIT-V2 HDBaseT 100m over a single CAT cable extender set supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), 3D signal display, audio breakout via analogue L/R audio or optical digital outputs and all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission. The HEX100ARC-KIT features an integrated 3-port Ethernet switch on receiver and an HDMI Loop-out for integrating local displays or cascading to future signal distribution devices.

Manual

SKU: HEX100ARC-KIT-V2 Categories: Air Traffic Control, AV Extenders and Splitters, Blustream, Blustream 100m HDBaseT Extender, Broadcast, Digital Signage Extenders, Government and Medical, HDBaseT, HDBaseT Extenders, HDMI Extender, RS232 Over CAT5 Extender Tags: 3D, 4K, hdbaset, HDCP Compliant, HDMI Over CATx Extender, IR Support, PoE, POH, rs232

Description

Description

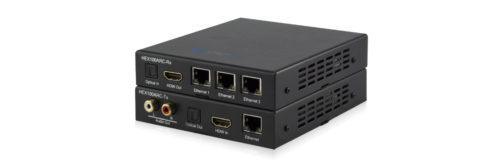

Blustream HEX100ARC-KIT-V2 is part of Platinum Range of HDBaseT products offer the very best in performance and flexibility. The HEX100ARC-KIT-V2 extender set is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232 and PoH (PoE) up to lengths of 100m over a single CAT cable. The HEX100ARC-KIT-V2 also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch.

Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Extends HDMI up to a distance of 100m over single CAT cable
Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports 3D signal display
Features 1x HDMI loop out for integrating local displays or cascading to further signal distribution devices
Supports ARC (Audio Return Channel) from display via HDMI or Optical digital inputs (to 90m max distance**)
Supports audio return to HDMI, Optical digital and analogue L/R audio outputs (DAC PCM only)
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Integrated 3-port Ethernet switch (LAN Serving)
Bi-directional RS-232 pass through
Bi-directional IR from all input and output locations
Supplied with Blustream IR receiver and emitter
Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver end
HDCP 2.2 support

* Where ARC is required over longer distances, it is highly recommended that shielded CAT cable be used

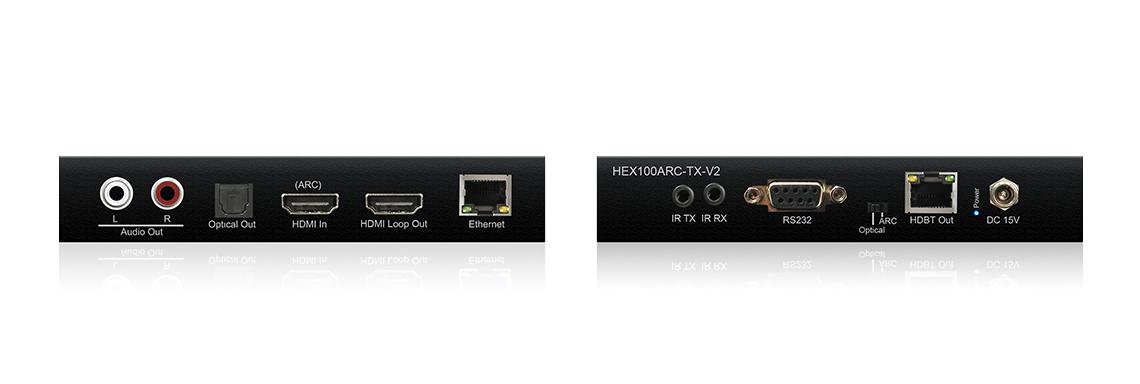

HEX100ARC-TX-V2

Video Input Connectors: 1x HDMI Type A, female
Video Output Connectors: 1x HDBaseT RJ45 connector, 1x HDMI Type A, female
Audio Output Connectors: 2x RCA (L/R), 1x Optical (SPDIF)
Ethernet port: 1x RJ45 connector
RS-232 serial port: 1x DB-9 female
IR Input ports: 1x 3.5mm stereo jack
IR Output ports: 1x 3.5mm mono jack
2x mounting bracket

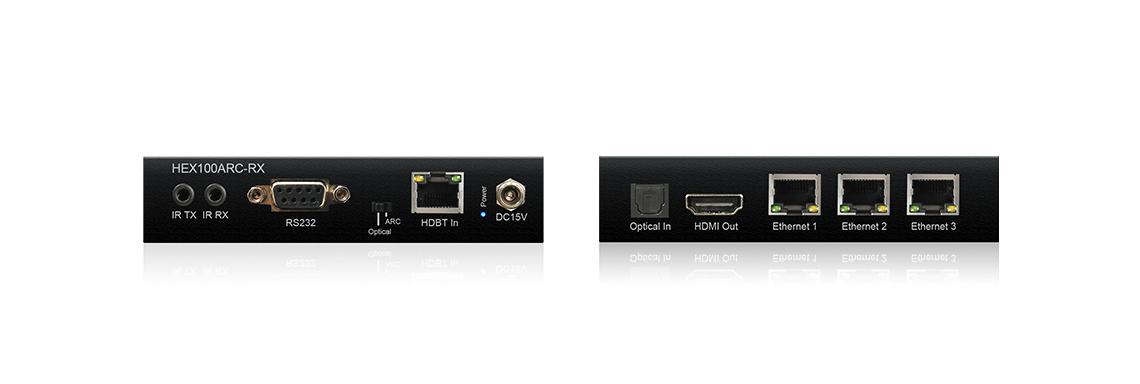

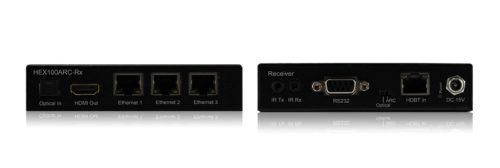

HEX100ARC-RX

Video Input Connectors: 1x HDBaseT RJ45 connector,
Video Output Connectors: 1x HDMI Type A, female
Audio Input Connectors: 1x Optical (SPDIF)
Ethernet port: 3x RJ-45 connector
RS-232 serial port: 1x DB-9 female
IR Input ports: 1x 3.5mm stereo jack
IR Output ports: 1x 3.5mm mono jack

Mounting kit included
Casing Dimensions (W x D x H ): 114mm x 135mm x 24mm (RX), 143mm x 135mm x 25mm (TX)
Dimensions including connections (W x D x H ): 114mm x 139mm x 24mm (RX), 143mm x 140mm x 25mm (TX)
Shipping Weight (Kit): 0.9kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: 1x 15V/2A DC, screw connector
